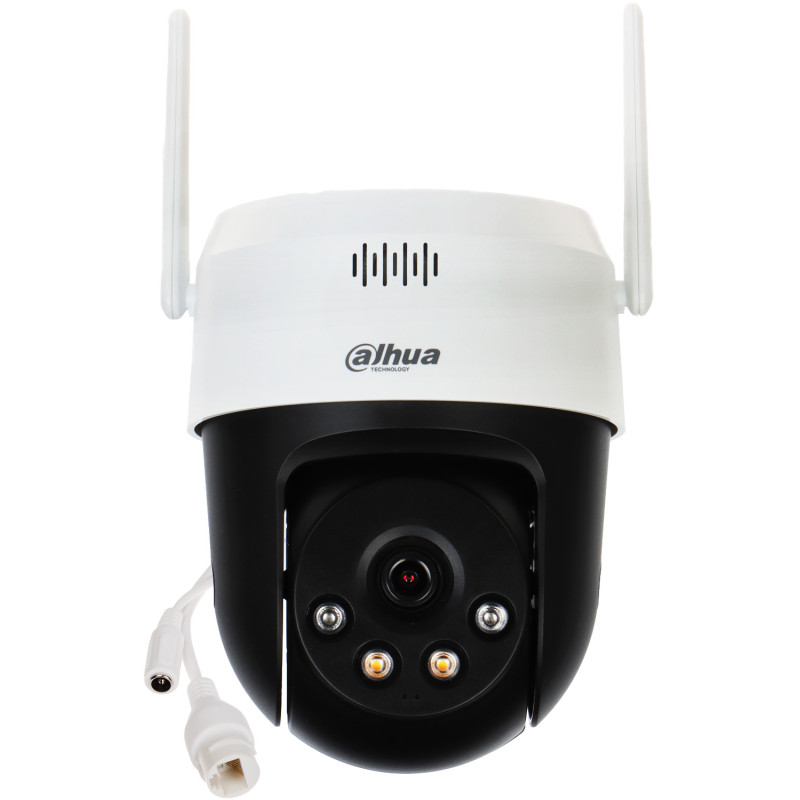

Wi-Fi 5Mpx Full-Color AI PTZ Dome Camera Human Tracking Alarm Siren Microphone SD Card

Model: DAHUA P5AE-PV

EAN: 6931240093108 SKU: 931093100

• High 5 Mpx resolution for crystal clear images
• Full-Color technology - full-color image 24/7, even at night
• Active deterrence - built-in alarm siren and white light illuminator
• Smart AI analysis - human and vehicle recognition (SMD 3.0)
• Auto-tracking - automatic tracking of detected objects
• Smart Dual Light - intelligent switching between IR and LED modes
• Two-way audio communication (built-in microphone and speaker)
• Wireless Wi-Fi 2.4 GHz connectivity with long range
• Supports microSD cards up to 256 GB for local storage
• IP66 protection class guaranteeing full weather resistance

Description

The Dahua P5AE-PV IP camera is a modern solution for those looking for an intelligent surveillance system with a very high resolution of 5 megapixels. Thanks to advanced Full-Color technology, the device guarantees a bright and clear image in full color even in complete darkness, which significantly increases the level of security compared to standard black and white cameras.

A key advantage of this model is the audio-visual active deterrence function. Upon detecting an intruder via AI algorithms, the camera can automatically trigger a built-in sound siren and flashing white LED light, which effectively discourages unauthorized persons from further action. The Smart Dual Light system allows for flexible lighting management, offering IR infrared mode for discreet surveillance and automatic switching to white light only when motion is detected.

The device supports advanced AI image analysis, including SMD 3.0 technology, which accurately distinguishes between humans and vehicles, eliminating false alarms caused by animals or vegetation. With a 345-degree horizontal rotating head and smart tracking function, the camera can automatically follow a moving target. A robust IP66-rated housing makes the device fully resistant to rain, snow, and frost, making it an ideal choice for protecting homes, offices, or parking lots. The built-in Wi-Fi module ensures easy installation without the need for additional signal cables.

Specification

Standard and Sensor

Standard: IP; Sensor: 1/2.8 " Progressive Scan CMOS; Resolution: 2560 x 1920 (5 Mpx), 2560 x 1440 (3.7 Mpx), 2304 x 1296 (3 Mpx), 1920 x 1080 (1080p), 1280 x 720 (720p)

Optics and Visibility

Lens: 4 mm; Viewing angle: 80 °; IR illuminator range: 30 m; LED illuminator range: 30 m; Day/night mode: Mechanical ICR infrared filter

PTZ Rotation Parameters

Horizontal rotation range: 0 ° ... 345 ° (limited by end-stop); Vertical rotation range: 0 ° ... 80 °; Rotation speed (manual control): 0.1 °/s ... 74 °/s (horizontal), 0.1 °/s ... 36 °/s (vertical); Preset speed: max. 62 °/s (horizontal), 36 °/s (vertical); Number of presets: 300

Compression and Streaming

Compression method: H.265+ / H.264+ / H.265 / H.264 / MJPEG; Main stream transmission speed: 25 fps @ 5 Mpx; RTSP URL: rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 (Main stream)

Audio and Alarms

Audio: Built-in microphone, Built-in speaker, Two-way audio support, Sound detection; Active deterrence: Light alarm (LED) and sound (siren)

Network and Interfaces

Network interface: Wi-Fi - 2.4 GHz IEEE 802.11 b/g/n, Ethernet 10/100 Base-T (RJ-45); Memory card slot: Supports Micro SD cards up to 256GB; Protocol: Built-in WEB Server, NVR compatibility; Max. number of users: 20

Image Functions

D-WDR - Wide Dynamic Range; BLC - Backlight Compensation; HLC - Highlight Compensation; Smart Dual Light mode - automatic lighting upon object detection; Motion detection based on human detection

Intelligent AI Analysis

SMD 3.0 - Object classification (human, motor vehicle); IVS functions: Intrusion, Line crossing; Intelligent object tracking (Auto-tracking)

Access and Software

Phone access: Port 37777, DMSS app (Android/iOS); PC access: Dedicated app via port 37777; Default IP address: 192.168.1.108; Web ports: 80, 37777

DMSS Software

The free DMSS (Digital Mobile Surveillance System) mobile application enables comprehensive camera management from a smartphone or tablet. The user gets access to live view, remote PTZ head control, and two-way voice communication. The software supports real-time PUSH notifications upon intruder detection or line crossing. The application allows for quick browsing of recording archives from the memory card, taking photos, and configuring image parameters. Thanks to P2P technology, the connection is stable and does not require a public IP address.

Power Supply and Consumption

Power supply: 12 V DC / 1 A; Power consumption: ≤ 11 W

Construction and Environment

Housing: Speed Dome, Plastic; Color: White; Protection class: IP66; Operating temperature: -30 °C ... 55 °C

Dimensions and Weight

Dimensions: Ø 111 x 141 mm (without bracket); Product weight: 0.44 kg

Other

Supported languages: English; Warranty: 3 years

Contents

1x PTZ camera

1x Mounting kit (dowels, screws)

1x User manual

Dimensions, Weight

Product dimensions: 111 x 111 x 141 mm (Depth x Width x Height)

Package dimensions: 145 x 220 x 145 mm (Depth x Width x Height)

Product weight: 440 g

Weight with packaging: 754 g
