Wired Alarm System Two Remote Controls PIR Motion Sensor Alarm Siren Security Kit for Home Garage

Model: ACTii AC2190

EAN: 6931240021903 SKU: 2190894567

• Complete wired alarm set ready for quick installation.
• Central unit expandable with any number of motion, smoke, gas sensors, or reed switches.
• Two multifunctional remote controls with 'Panic' function.
• Powerful 110dB external siren with dual signaling: acoustic and optical (flashing LEDs).
• Advanced digital PIR motion sensor with pet immunity function and digital temperature compensation.
• Anti-tamper protection for the sensor, guarding against unauthorized opening or destruction.

Description

Professional wired alarm system in a complete kit. Includes: central unit, two remote controls, digital PIR motion sensor, loud external siren, and necessary mounting accessories. The system is ideal for securing a home, garage, or office with the option to expand with additional sensors.

Specification

Alarm Control Panel

Wired with expansion capability; Functions: arming, disarming, silent arming, anti-burglary mode, setting memory, remote code learning; Power supply: 12V DC; Frequency: 433MHz; Dimensions: 83x47x25mm; Weight: 62g.

Remote Control

Quantity in set: 2 pcs; Functions: Arming, Disarming, PANIC button, Silent alarm; LED status indicator; Ergonomic housing.

Alarm Siren

Type: Acoustic-optical; Volume: 110dB; Light source: 4x LED; Flash frequency: 80/min; Resistance class: SMD protected with impregnate; Operating temp: -40°C to +70°C; Power supply: 12V DC.

PIR Motion Sensor

Sensor: Dual infrared sensor; Detection angle: 110°; Detection range: up to 12m; Pet immunity function; Digital temperature compensation; Alarm output: N.C./N.O. 100mA; Anti-tamper protection; Mounting height: 1.7m - 2.5m.

Additional Optional Accessories

Compatibility with PIR sensors (AC8378, AC3431, AC8336), magnetic sensors (AC3849, AC7063), smoke sensors (AC1439), and 12V power supplies (AC9465).

Power Supply and Physical Parameters

Supply voltage: 12V DC (9-16V acceptable); Current consumption: approx. 200mA; Certificates: CE, RoHS.

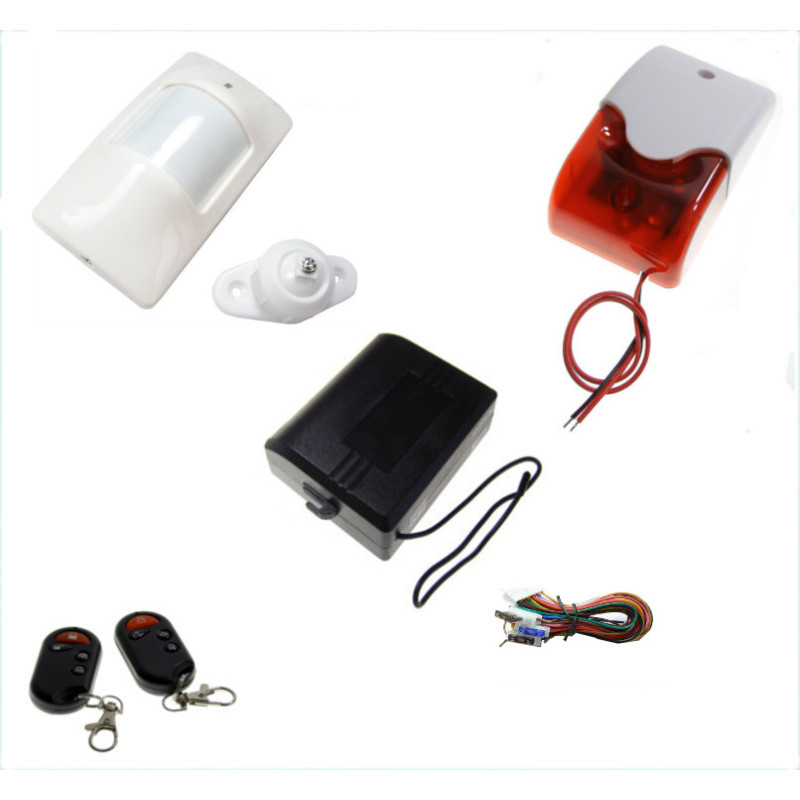

Contents

1x Wired control panel

2x Remote control

1x Digital PIR motion sensor with bracket

1x External alarm siren 110dB

1x Set of cables with fuse

1x User manual in Polish

1x Packaging

Dimensions, Weight

Product dimensions: 45 x 27 x 83 mm (D x W x H)

Packaging dimensions: 73 x 123 x 44 mm (D x W x H)

Product weight: 345 g

Weight with packaging: 345 g
