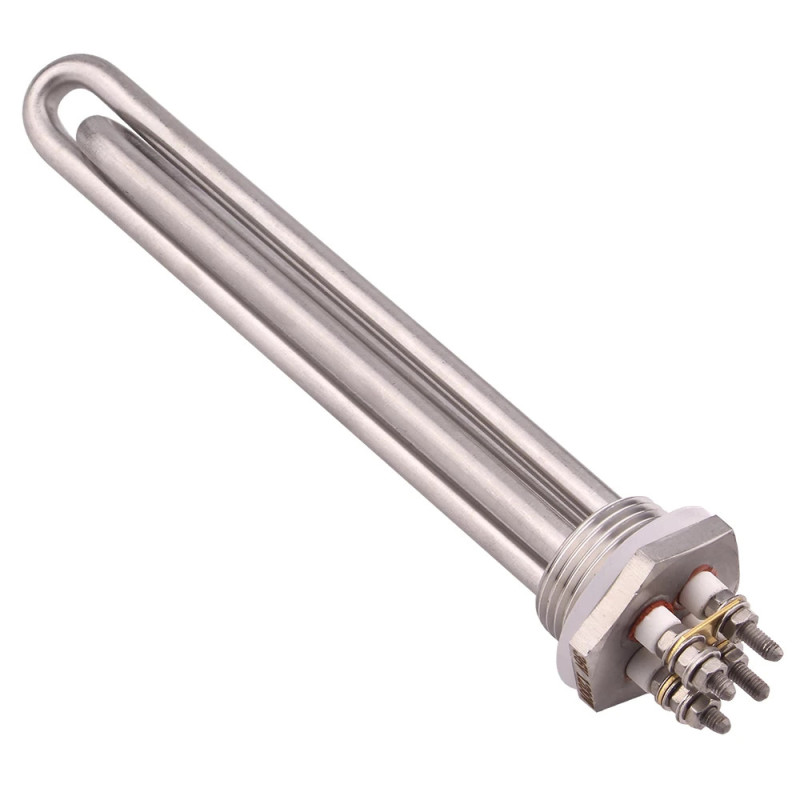

12V 600W Heating Element 2x 300W Photovoltaic Solar Wind Turbine 1 Inch Flange

Model: ACTii AC7706

EAN: 6931240077061 SKU: 770619215

• Solid construction
• Gasket included
• Two independent coils

Description

Heating element for domestic hot water tanks.

Operating voltage 12V power 2x 300W (600W)

Heating element designed for use with wind turbines and photovoltaic panels.

The heating element has two independent coils on one flange.

The heating element can operate on AC or DC voltage.

Custom heating elements with different threads can be made to order

Specification

Parameters

For boilers and heat exchangers 50-200l

Voltage: 12V (AC or DC voltage)

Power : 600W ( 2x 300W )

Length of the heating element from the flange : 185 mm

Mounting : 1" brass flange (33.401mm) BSP with insulated heating set

Material of the heating element: SUS304

Diameter of the heating element: 8mm

Total length: 220mm

Set contents

Heating element

Gasket

Dimensions, Weight

Product dimensions: 45 x 45 x 220 mm (D x W x H)

Package dimensions: 250 x 60 x 60 mm (D x W x H)

Product weight: 320 g

Weight with packaging: 350 g

Zum Download

• User Manual
• CE Declaration
• SAFETY COMPLIANCE
