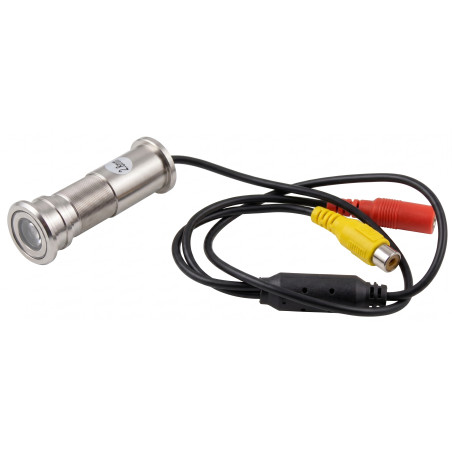

CCTV Hidden Door Peephole Spy Pinhole Analogue Camera for Home Monitoring

Model: ACTii AC4645

EAN: 6931240046456 SKU: 464552626

• High-class 1/3 CMOS 550TVL sensor providing a clear image and high sensitivity of 0.1 Lux.
• Discreet design in the form of a standard door peephole - indistinguishable from a regular viewer.
• Wide-angle 2.1mm lens with a 115-degree field of view, eliminating blind spots.
• Adjustable housing length in the range of 37-56mm, allowing for fitment to various door thicknesses.
• Solid, vandal-resistant aluminium housing with double tempered protective glass.
• Simple Plug&Play installation via standard Cinch (RCA) connector compatible with TVs and recorders.
• Wide operating temperature range from -30°C to +55°C, ensuring reliability in all conditions.
• Low power consumption of only 3W, allowing for economical 24/7 continuous operation.

Description

Professional CCTV camera discreetly hidden in the housing of a standard door peephole. This is an ideal solution for those looking for an effective way to monitor the entrance to an apartment, office, or warehouse without arousing the suspicion of third parties. From the outside, the device is completely indistinguishable from a regular optical peephole, which guarantees full discretion and security.

The heart of the camera is a high-quality 1/3" CMOS sensor with a resolution of 550TVL, which, combined with a very high sensitivity of 0.1 Lux, provides a bright and clear image even in dimly lit corridors or stairwells. The wide-angle 2.1mm lens offers a field of view of up to 115 degrees, which allows for monitoring a wide area in front of the door, eliminating so-called blind spots and allowing for the identification of people standing even to the side of the entrance.

The camera's construction has been designed with ease of installation and durability in mind. The solid aluminium housing has an adjustable length in the range of 37 to 56 mm, making it suitable for most typical door leaves available on the market. The 18 mm mounting diameter allows for installation in the place of an existing peephole without the need for additional, complicated carpentry work. The device is vandal-resistant, and the lens is protected by double tempered glass.

Main product advantages:

- Total discretion: Appearance identical to a standard peephole prevents the camera from being detected by unauthorised persons.

- High image quality: 550TVL CMOS sensor guarantees the detail necessary for identifying people.

- Wide viewing angle: 115 degrees ensures a full view of the situation in front of the door.

- Durability: Vandal-resistant aluminium housing and double tempered glass protecting the optics.

- Easy installation: Standard Cinch (RCA) connector allows for quick connection to a TV, monitor, or DVR recorder.

- Operation in difficult conditions: Wide operating temperature range from -30°C to +55°C allows for installation in external doors.

Specification

Camera type

PAL - Standard analogue image transmission system, ensuring full compatibility with most monitors, televisions, and DVR recorders.

Sensor

1/3 CMOS - Modern image sensor characterised by low energy consumption, faithful colour reproduction, and high dynamic range.

Sensor size

550TVL - Horizontal resolution providing a clear image allowing for trouble-free identification of people and details in front of the door.

Image parameters

Signal-to-noise ratio (S/N): > 46dB (ensures a clean image without graininess); Scanning system: Progressive (eliminates image flickering); Electronic Shutter: 1/60 to 1/15000 (automatic adjustment to light intensity); Automatic Gain Control (AGC): AUTO (amplifies the signal in difficult lighting conditions); Sensitivity: 0.1 LUX (enables effective operation in very low corridor lighting).

Lens

Focal length: 2.1mm; Wide viewing angle: 115° (allows for observation of the entire stairwell); Aperture: F 1.4 (bright lens); Focus adjustment: Yes, manual; Lens mount: board cameras.

Housing

Dustproof and vandal-resistant; Material: Solid aluminium resistant to mechanical damage; Cover: Tempered double glass protecting the optics from scratching; Operating temperature: -30°C to +55°C; Colour: Silver (classic peephole appearance).

Interface and connection

Video output: Cinch (RCA) Plug; Video signal: PAL/NTSC. The device is fully analogue, which means no complicated network configuration or need to install drivers. The interface is based on a standard CVBS signal, which can be connected directly to the AV input on a TV, monitor, or any digital DVR recorder supporting analogue cameras. Thanks to the use of standard connectors, the installation is Plug&Play – after connecting the power and signal cable, the image appears immediately on the receiver. The lack of built-in firmware eliminates the risk of system crashes, transmission delays (lag), or hacker attacks, which makes this solution extremely stable, reliable, and secure in home monitoring systems. It is an ideal solution for those who value simplicity and immediate readiness for work.

Power supply

DC 12V 500mA; Power input: Standard 2.1mm/5.5mm socket; Power consumption: 3W (very low energy consumption).

Contents

1x Peephole camera

1x Cardboard packaging

Additional information

Housing length adjustment: 37-56mm (fits most standard doors); Cable length: 55cm; Minimum mounting diameter: 18mm (diameter of the hole in the door).

Dimensions, Weight

Product dimensions: 42 x 25 x 25 mm (D x W x H)

Packaging dimensions: 50 x 50 x 50 mm (D x W x H)

Product weight: 200 g

Weight with packaging: 284 g
