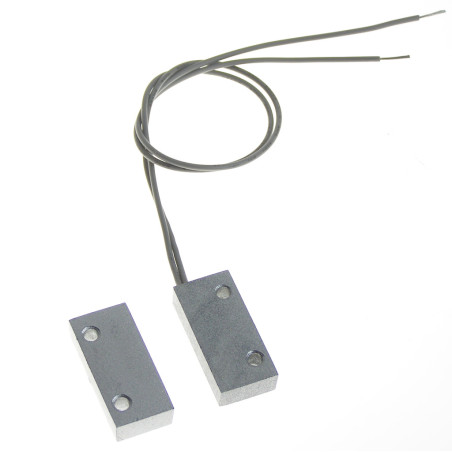

Side magnetic contact sensor metal NC 35mm for garage door alarm ACTii AC6604
zł24.90
Tax included
Dostawa w ciągu 1-2 dni.
Professional side magnetic sensor (reed switch) enclosed in a durable aluminium housing, designed for alarm systems requiring the highest reliability. Thanks to a large operating gap of 35 mm and a hermetic design, this sensor is an ideal solution for securing garage doors, entrance gates, and heavy door/window frames in industrial and residential facilities. The solid aluminium construction provides excellent resistance to corrosion and mechanical damage, allowing for trouble-free operation in harsh outdoor conditions.
The use of high-class ruthenium (Ru) contacts guarantees exceptional durability, stability of electrical parameters, and a long service life, even with frequent opening and closing of the secured points. The sensor operates in an NC (Normally Closed) configuration, making it fully compatible with most alarm control panels available on the market. The device is resistant to a wide temperature range, from -25°C to +85°C, which confirms its versatility and readiness for operation in variable weather conditions. Surface mounting is quick and intuitive, allowing for rapid securing of the facility without the need to interfere with the structure of the door frames.
This solution combines aesthetics, durability, and precision of operation. By choosing this model, you are investing in the security of your property, using technology proven in professional alarm installations. Each element of the set has been designed to ensure maximum tightness and protection against external factors, which makes it one of the most popular sensors chosen by security system installers.
Side magnetic contact sensor metal NC 35mm for garage door alarm
Model: ACTii AC6604
EAN: 6931240066041 SKU: 660481800
- Durable housing made of high-quality corrosion-resistant aluminium
- Large operating gap (35 mm) allowing for installation on gates and garages
- Fully hermetic design adapted for outdoor operation
- Ruthenium (Ru) contacts ensuring reliability and long service life
- NC (Normally Closed) output compatible with most alarm control panels
- Wide operating temperature range from -25°C to +85°C
Description
Professional side magnetic sensor (reed switch) enclosed in a durable aluminium housing, designed for alarm systems requiring the highest reliability. Thanks to a large operating gap of 35 mm and a hermetic design, this sensor is an ideal solution for securing garage doors, entrance gates, and heavy door/window frames in industrial and residential facilities. The solid aluminium construction provides excellent resistance to corrosion and mechanical damage, allowing for trouble-free operation in harsh outdoor conditions.
The use of high-class ruthenium (Ru) contacts guarantees exceptional durability, stability of electrical parameters, and a long service life, even with frequent opening and closing of the secured points. The sensor operates in an NC (Normally Closed) configuration, making it fully compatible with most alarm control panels available on the market. The device is resistant to a wide temperature range, from -25°C to +85°C, which confirms its versatility and readiness for operation in variable weather conditions. Surface mounting is quick and intuitive, allowing for rapid securing of the facility without the need to interfere with the structure of the door frames.
This solution combines aesthetics, durability, and precision of operation. By choosing this model, you are investing in the security of your property, using technology proven in professional alarm installations. Each element of the set has been designed to ensure maximum tightness and protection against external factors, which makes it one of the most popular sensors chosen by security system installers.
Specification
Output type
NC (Normally Closed). Two parts of the reed switch close to each other close the NC circuit.
Operating gap
35 mm
Mounting
Side / Surface
Housing
Aluminium (Silver)
Electrical parameters
Max. 200V / 500mA (1.5A continuous), Power 10VA
Operating conditions
Temperature -25°C to +85°C, Hermetic
Sensor type / Resistance
2EOL/NC (2 x 1.1k Ohm)
Contents
1x Magnetic sensor (side reed switch)
1x Magnetic element
Additional information
Operating principle: Why is the sensor electrically NO, but alarm-wise NC?
The operation of the sensor is very simple: bringing the magnet closer (closing the window) closes the circuit, and moving the magnet away (opening the window) breaks the circuit.In the alarm industry, this sensor is sold as NC (Normally Closed). Why is this?In alarm systems, the "normal" (resting) state is a secured building – i.e., a closed window.Since the circuit is closed and current flows when the window is closed (magnet is close), manufacturers call it NC.From the point of view of pure electrical engineering, it is an NO system (because by default, lying on a table without a magnet, the sensor does not conduct current), however, alarm installers always look at the operating state when the window is closed.Dimensions, Weight
Product dimensions: 31 x 15 x 7 mm (D x W x H)
Packaging dimensions: 60 x 80 x 20 mm (D x W x H)
Product weight: 45 g
Weight with packaging: 45 g
