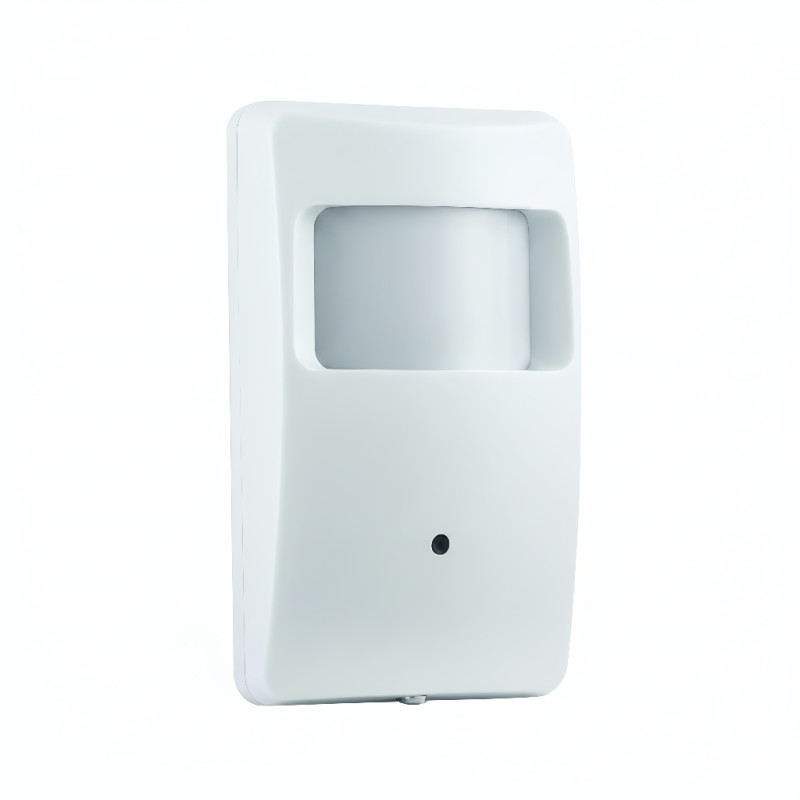

Hidden Small IP Camera in PIR Sensor Motion Detector 1/3 CMOS 5MP 2880x1620 H.265 PoE IR LED 18X 940nm ACTii AC6562
zł219.21
Tax included
Discover high-end discreet monitoring! The ACTii AC6562 5MP hidden IP camera is an advanced surveillance tool masked within a standard PIR motion sensor housing. Thanks to its high 2880x1620P resolution and 1/3'' CMOS sensor, the captured image is exceptionally detailed, allowing for precise identification of persons and events. The camera features a 3.7mm pinhole lens with a 75-degree field of view, making it virtually invisible to bystanders.
The biggest advantage of this model is the modern software supporting remote surveillance. Using the TSeye mobile app, available for Android and iPhone, you gain live viewing from anywhere in the world. The app allows not only for current monitoring but also full management of Push motion detection notifications and remote playback of recordings. For PC users, the dedicated professional NVS program (Windows) allows for the creation of an advanced monitoring center with support for multiple cameras simultaneously, offering extensive recording schedules and easy event searching.
The camera supports the PoE standard (802.3af), which drastically simplifies installation – a single Ethernet cable transmits both data and power. The use of 18 efficient 940nm wavelength IR LEDs provides night illumination that is completely invisible to the human eye, with a range of up to 10 meters. This is an ideal solution for an office, home, or warehouse where discretion, reliability, and ease of operation via a web browser are priorities. The All Subnet Onvif function automatically adjusts the camera IP address to the NVR, making configuration intuitive even for beginners. Choose professional ACTii monitoring.
Hidden Small IP Camera in PIR Sensor Motion Detector 1/3 CMOS 5MP 2880x1620 H.265 PoE IR LED 18X 940nm
Model: ACTii AC6562
EAN: 6931240065624 SKU: 656279406
- Hidden in a motion sensor housing (PIR type)
- High resolution 5.0 Megapixels (2880 x 1620P)
- 1/3'' CMOS sensor
- 3.7mm Pinhole lens View angle: 75 degrees
- Invisible night vision - 18 IR LED 940nm
- Infrared range: 5-10 meters
- Dual power supply: PoE (802.3af) or DC 12V (power adapter not included)
- Efficient video compression: H.265 / H.264
- Full support via NVS software (Windows) and TSeye (Android, iOS)
- P2P remote view and motion detection function with Push notifications
- Built-in microphone (one-way audio)
- Access via browsers (IE, Edge, Chrome, Firefox, Safari)
- ABS plastic housing for indoor applications
- Recording on NVR, computer (NVS) or cloud
- Protocol support: HTTP, TCP/IP, RTSP, FTP, NTP, ONVIF
Description
Discover high-end discreet monitoring! The ACTii AC6562 5MP hidden IP camera is an advanced surveillance tool masked within a standard PIR motion sensor housing. Thanks to its high 2880x1620P resolution and 1/3'' CMOS sensor, the captured image is exceptionally detailed, allowing for precise identification of persons and events. The camera features a 3.7mm pinhole lens with a 75-degree field of view, making it virtually invisible to bystanders.
The biggest advantage of this model is the modern software supporting remote surveillance. Using the TSeye mobile app, available for Android and iPhone, you gain live viewing from anywhere in the world. The app allows not only for current monitoring but also full management of Push motion detection notifications and remote playback of recordings. For PC users, the dedicated professional NVS program (Windows) allows for the creation of an advanced monitoring center with support for multiple cameras simultaneously, offering extensive recording schedules and easy event searching.
The camera supports the PoE standard (802.3af), which drastically simplifies installation – a single Ethernet cable transmits both data and power. The use of 18 efficient 940nm wavelength IR LEDs provides night illumination that is completely invisible to the human eye, with a range of up to 10 meters. This is an ideal solution for an office, home, or warehouse where discretion, reliability, and ease of operation via a web browser are priorities. The All Subnet Onvif function automatically adjusts the camera IP address to the NVR, making configuration intuitive even for beginners. Choose professional ACTii monitoring.
Specification
Parameters
Camera
Resolution: 5.0 MP (2880 x 1620P)
Sensor: 1/3'' CMOS (FH8852V200+SC401AI)
Minimum illumination: 0.1Lux @(F1.2, AGC ON)
Shutter: 1/25 second - 1/100,000 second
Frame rate: 20fps
Lens
Lens type: 3.7mm (Pinhole)
Viewing angle: 75°
Lens interface type: M12
Video and Network
Compression: H.265 / H.264
ONVIF Port: 8088
Data storage: NVR, Computer, Cloud
IP Address: Static (Default 192.168.1.108) / Dynamic
Smart alarm: Motion detection, Email alarm, Push alarm (App)
Supported protocols: HTTP, TCP/IP, RTSP, RTP, UPNP, SMTP, DHCP, DDNS, DNS, FTP, NTP
Ethernet: 10M/100M mbps Ethernet (RJ-45)
General Functions
Night vision: 18 IR LEDs (invisible 940nm)
IR night range: 5-10m
Functions: Reset, Night vision, Motion detection, All Subnet Onvif
Usage: Indoor
Housing material: ABS plastic
Power
Power supply: PoE or DC 12V
PoE standard: 802.3af
DC power adapter: 12V/2A (not included)
Working Conditions and Dimensions
Operating temperature: -25°C ~ 60°C
Software
The camera offers a comprehensive management and viewing system, tailored to various user needs.
Remote access via web browser: Full control over the device is possible from browsers such as Internet Explorer (ActiveX), Edge, Chrome, or Firefox. After navigating to the default IP address (192.168.1.108), the user gains access to live viewing, network settings, image parameters, and cloud service configuration. The web interface allows for the generation of a unique Cloud ID (P2P), which eliminates the need for a static IP address and complicated router port forwarding.
The "All Subnet Onvif" function facilitates integration with NVRs by automatically matching the subnet.
NVS program for Windows: This is a powerful VMS/CMS tool for centralized monitoring system management. The program offers an "Auto Search" feature that instantly finds cameras on the local network. NVS enables the display of images from multiple cameras simultaneously (up to 128 channels), configuration of motion detection for each channel individually, and saving video streams directly to the computer's hard drive according to a schedule. An intuitive timeline allows for quick searching of recordings and exporting key fragments.
TSeye mobile app (Android, iOS): This is a mobile command center in your pocket. After registering an account, the user can add a camera by scanning a QR code or searching on the local network. The app supports "Alarm Push" and "Motion Detection" notifications, which immediately inform about events. TSeye provides full access to remote SD card management – from formatting to remote playback of recordings with a clear timeline. The user can also take screenshots and record short videos directly to the phone's memory.
Advanced network functions: The device supports RTSP and ONVIF 2.4 protocols, ensuring compatibility with third-party software. The system allows sending alarm photos to an FTP server and an email address according to a set weekly schedule, which provides an additional backup for recordings and events.
Content
1x IP Camera
1x Mounting bracket
1x Screw set
1x Software and user manual
1x Cardboard packaging
Additional information
The camera supports both 48V PoE power (compliant with 802.3af) and standard DC 12V power.
For DC 12V power, a 12V/2A power adapter is required (not included).
Default camera settings are 5MP and H.265 compression. If your NVR does not support 5MP or H.265, you can manually change the camera settings to 1080P (2MP) and H.264 compression to ensure compatibility.
Operation via web interface in browsers: IE8.0+, Edge, Chrome, Firefox, Safari.
Dimensions, Weight
Product dimensions: 45 x 70 x 120 mm (D x W x H)
Package dimensions: 100 x 150 x 80 mm (D x W x H)
Product weight: 280 g
Weight with packaging: 308 g
