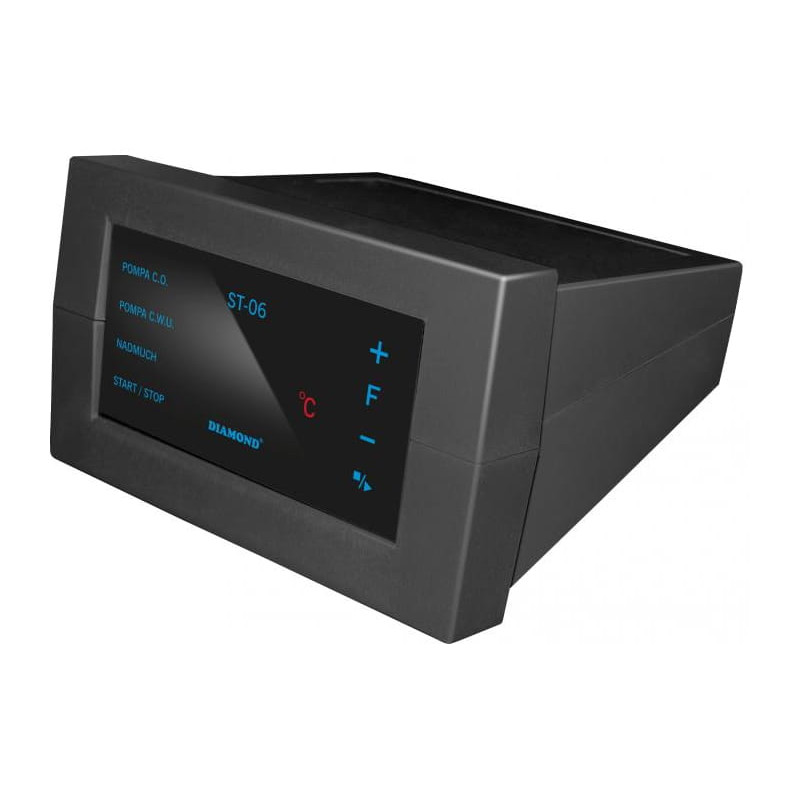

Touchscreen boiler controller for CH and DHW pumps blower fan LED alarm boiler thermostat Diamond ST-06
zł482.91
Tax included
The Diamond ST-06 controller is a modern and advanced microprocessor device designed to fully optimise the operation of central heating boilers. Equipped with an elegant glass touch panel and an extremely clear LED display, it serves as the command centre for your home heating system. The device allows for simultaneous and independent control of the CH circulation pump, the domestic hot water (DHW) tank charging pump, and the blower fan, ensuring maximum combustion efficiency and thermal comfort.
One of the key advantages of the ST-06 controller is its intuitiveness. Thanks to the touch interface, configuring the boiler's operating parameters becomes simple and fast, even for those without specialist technical knowledge. The intelligent blower management system allows for precise air dosing into the combustion chamber, which directly translates into lower fuel consumption and a reduction in harmful emissions. The controller ensures that the combustion process remains stable and safe.
Operational safety is a priority in the ST-06 model. The device is equipped with an extensive alarm system that reacts immediately to critical situations, such as exceeding the permissible boiler temperature (safety thermostat function). If an irregularity is detected, the controller triggers an audible signal and appropriate safety procedures, protecting the system from damage. Additionally, functions such as Anti-Stop prevent pump seizure outside the heating season by cycling them on for a short period.
The aesthetic design of the Diamond ST-06 controller ensures it fits perfectly into modern interiors and boiler rooms. The robust housing, made from high-quality materials, guarantees resistance to the harsh conditions found in technical rooms, such as variable temperatures or humidity. By choosing this model, you gain not only savings and convenience but also the certainty that your heating system is operating under the supervision of top-class electronics.
Touchscreen boiler controller for CH and DHW pumps blower fan LED alarm boiler thermostat
Model: Diamond ST-06
EAN: 6931240038710 SKU: 931238717
- Intuitive glass touch panel for easy operation
- Clear LED display showing current operating parameters
- Comprehensive control of CH pump, DHW pump, and blower fan
- Built-in alarm system with audible signal
- Anti-Stop function preventing pump seizure during off-season
- Anti-Freeze function protecting the system from low temperatures
- Precise hysteresis adjustment for pump operation
- Thermal protection to prevent boiler overheating
- High-quality workmanship and modern design
- Easy installation and device configuration
Description
The Diamond ST-06 controller is a modern and advanced microprocessor device designed to fully optimise the operation of central heating boilers. Equipped with an elegant glass touch panel and an extremely clear LED display, it serves as the command centre for your home heating system. The device allows for simultaneous and independent control of the CH circulation pump, the domestic hot water (DHW) tank charging pump, and the blower fan, ensuring maximum combustion efficiency and thermal comfort.
One of the key advantages of the ST-06 controller is its intuitiveness. Thanks to the touch interface, configuring the boiler's operating parameters becomes simple and fast, even for those without specialist technical knowledge. The intelligent blower management system allows for precise air dosing into the combustion chamber, which directly translates into lower fuel consumption and a reduction in harmful emissions. The controller ensures that the combustion process remains stable and safe.
Operational safety is a priority in the ST-06 model. The device is equipped with an extensive alarm system that reacts immediately to critical situations, such as exceeding the permissible boiler temperature (safety thermostat function). If an irregularity is detected, the controller triggers an audible signal and appropriate safety procedures, protecting the system from damage. Additionally, functions such as Anti-Stop prevent pump seizure outside the heating season by cycling them on for a short period.
The aesthetic design of the Diamond ST-06 controller ensures it fits perfectly into modern interiors and boiler rooms. The robust housing, made from high-quality materials, guarantees resistance to the harsh conditions found in technical rooms, such as variable temperatures or humidity. By choosing this model, you gain not only savings and convenience but also the certainty that your heating system is operating under the supervision of top-class electronics.
Specification
Device type
Microprocessor controller for CH boilers
Model
ST-06 LED
Supported devices
CH pump, DHW pump, Blower fan
User interface
Touch Screen
Display
High-contrast and high-brightness LED
Supply voltage
230V AC / 50Hz +/- 10%
Power consumption
Less than 5 W (standby and self-operation)
Maximum CH pump output load
100 W / 0.5 A
Maximum DHW pump output load
100 W / 0.5 A
Maximum blower fan output load
100 W / 0.5 A
Temperature measurement range
0 °C ... 99 °C
CH temperature setting range
30 °C ... 80 °C
DHW temperature setting range
30 °C ... 80 °C
Pump hysteresis
Adjustable in the range of 1 °C ... 5 °C
Alarm temperature (thermal protection)
Factory set to 90 °C
Sensor cable length
Standard 1.5 m (CH and DHW sensor)
Anti-Stop function
Yes, pump activation every 14 days for 1 minute
Anti-Freeze function
Yes, pump activation when temperature drops below 5 °C
Audible signalling
Yes, built-in buzzer for alarms and touch confirmation
Protection rating
IP20
Operating ambient temperature
5 °C ... 50 °C
Ambient relative humidity
Below 80% at 25 °C (non-condensing)
Software and interface
Built-in control software with combustion optimisation algorithm. The interface allows for full calibration of blower settings (start-up power, blow-throughs, pause time) and pump operation priorities. The system has built-in settings memory, so after a power failure, the controller returns to previously configured parameters. The service menu allows for advanced sensor diagnostics and output testing. The software monitors the status of temperature sensors and switches to emergency mode if they are damaged, ensuring boiler safety.
Safety features
3.15A tubular fuse, software protection against overheating, sensor failure alarm
Contents
1x ST-06 LED controller
1x CH temperature sensor
1x DHW temperature sensor
1x Power cord with plug
1x User manual and warranty card
Dimensions, Weight
Product dimensions: 45 x 145 x 90 mm (D x W x H)
Packaging dimensions: 70 x 200 x 150 mm (D x W x H)
Product weight: 450 g
Weight with packaging: 600 g
