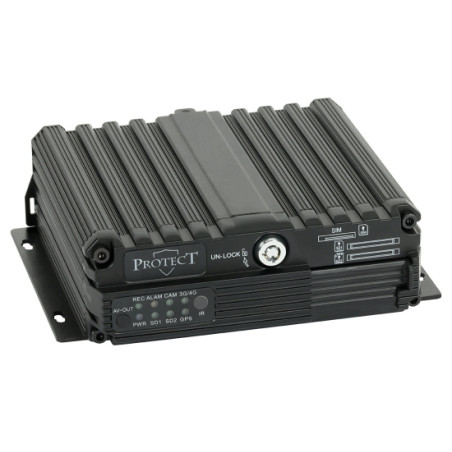

4-channel mobile AHD CVBS IP GPS G-Sensor H.265 recorder for trucks and buses Protect PROTECT-308
zł941.13
Tax included
This advanced mobile recorder is a professional solution dedicated to monitoring systems in a wide range of vehicles. The device is ideal for coaches, city buses, vans, trams, subways, as well as company and private vehicles. It has been designed for operation in harsh conditions, which is why it features increased resistance to vibrations and shocks, ensuring recording stability even on uneven surfaces. The recorder supports modern AHD, CVBS and IP image transmission standards, offering high-quality recordings in Full HD resolution.
One of the key advantages of the device is its intelligent power management system. The power cables are connected directly to the battery and ignition, which allows for automatic start of audio-video recording immediately after turning the ignition key. Additionally, the built-in power backup system allows for continued operation for 8 seconds after a sudden power loss, which secures evidence material in critical moments. The device supports two SD cards with an impressive capacity of up to 512 GB each, allowing for long-term data archiving without the need for frequent overwriting.
The recorder offers unique integration capabilities with active safety systems. It has dedicated connectors for DSM (Driver State Monitoring) cameras, which analyse driver behaviour for fatigue or distraction, and ADAS (Advanced Driver Assistance Systems) cameras, which monitor vehicle movement and the surroundings. Thanks to the integrated GPS module, G-Sensor and gyroscope, the system precisely records the route, speed and acceleration, enabling the detection of collisions, sudden braking or dangerous manoeuvres. This is a comprehensive tool for transport fleets, uniformed services and private users who value the highest level of safety.
4-channel mobile AHD CVBS IP GPS G-Sensor H.265 recorder for trucks and buses
Model: Protect PROTECT-308
EAN: 6931240050583 SKU: 931050586
- Support for AHD, CVBS and IP standards in one device
- Full HD 1080p high-resolution recording
- Dual SD card slot with a total capacity of up to 1 TB (2x 512GB)
- Built-in GPS module for precise route and speed tracking
- Integrated 3-axis G-Sensor and gyroscope for road event detection
- Increased resistance to vibrations and mechanical shocks
- Power backup system (UPS) for up to 8 seconds after power loss
- Compatibility with advanced DSM (driver monitoring) and ADAS systems
- Automatic recording start upon vehicle ignition
- Wide input voltage range from 8V to 36V DC
Description
This advanced mobile recorder is a professional solution dedicated to monitoring systems in a wide range of vehicles. The device is ideal for coaches, city buses, vans, trams, subways, as well as company and private vehicles. It has been designed for operation in harsh conditions, which is why it features increased resistance to vibrations and shocks, ensuring recording stability even on uneven surfaces. The recorder supports modern AHD, CVBS and IP image transmission standards, offering high-quality recordings in Full HD resolution.
One of the key advantages of the device is its intelligent power management system. The power cables are connected directly to the battery and ignition, which allows for automatic start of audio-video recording immediately after turning the ignition key. Additionally, the built-in power backup system allows for continued operation for 8 seconds after a sudden power loss, which secures evidence material in critical moments. The device supports two SD cards with an impressive capacity of up to 512 GB each, allowing for long-term data archiving without the need for frequent overwriting.
The recorder offers unique integration capabilities with active safety systems. It has dedicated connectors for DSM (Driver State Monitoring) cameras, which analyse driver behaviour for fatigue or distraction, and ADAS (Advanced Driver Assistance Systems) cameras, which monitor vehicle movement and the surroundings. Thanks to the integrated GPS module, G-Sensor and gyroscope, the system precisely records the route, speed and acceleration, enabling the detection of collisions, sudden braking or dangerous manoeuvres. This is a comprehensive tool for transport fleets, uniformed services and private users who value the highest level of safety.
Specification
Standards and System
AHD, CVBS (PAL), IP; Linux operating system ensuring stable operation in mobile conditions
Video Inputs
4 pcs. Sockets (M12 and 10-pin connectors); CAM1: dedicated for DSM signal; CAM2: dedicated for ADAS camera; Others: standard AHD/CVBS cameras
Video Outputs
1 pc. CINCH (RCA); 1 pc. M12, 4-pin socket for connecting a service or onboard monitor
Audio
Inputs: 4 pcs. CINCH; Outputs: 1 pc. CINCH; Support for two-way audio transmission
Recording Resolution and Speed
Resolutions: 1920 x 1080 (1080p), 1280 x 720 (720p), 960 x 576 (960H), 720 x 576 (D1); Speed: 100 fps @ 4 x AHD 1080p, 100 fps @ 4 x CVBS 960H, 25 fps @ 1 x IP 1080p
Compression and Archiving
Compression methods: H.265 / H.264; Archiving: 2 slots for SD/SDHC cards up to 512 GB each; Memory usage: approx. 0.4 GB/h at 1080p H.265 (15 fps)
Intelligent Functions and Sensors
GPS: Built-in module with external antenna; G-Sensor: 3-axis; Gyroscope: 3-axis; Detection: collision, hard braking, acceleration, fast cornering
Communication Interfaces
RS-485: Yes; RS-232: Yes; Alarm inputs: 8; Alarm outputs: 1; SIM slot: Inactive
Network and Connectivity
Ethernet port: 1 x RJ-45 (10/100 Base-T); Wi-Fi module: None; Support for network protocols for remote management
Additional Functions
Camera power supply 12V DC directly from the recorder (4x DC 2.1/5.5mm); Power backup up to 8s; Service event logging; Fault memory reading; Remote control included
Software and Management
Remote management is performed via the advanced IVMS (Intelligent Video Management System) application, which allows for live view, tracking the vehicle's GPS position in real-time on maps and full remote configuration of device parameters. For precise analysis of the collected material, a dedicated IVMSPlayer application is used, which allows for playing recordings from SD cards with simultaneous visualisation of data from acceleration sensors, gyroscope and the route taken. Default administrator password: 888888.
Power Supply and Energy Consumption
Supply voltage: 8 V ... 36 V DC; Power consumption: < 0.5 W (standby mode), < 36 W (maximum operation with cameras)
Operating Conditions
Operating temperature: -40 °C ... 80 °C; Permissible humidity: 20 % ... 95 % RH (non-condensing)
Physical Parameters
Weight: 0.85 kg; Dimensions without cover: 170 x 142 x 50 mm; Dimensions with cable cover: 170 x 187 x 50 mm; Reinforced housing
Contents
1x Mobile recorder
1x Omnidirectional GPS antenna
1x Remote control
1x Additional cable housing
1x Set of connection cables
1x User manual
Dimensions, Weight
Product dimensions: 142 x 170 x 50 mm (D x W x H)
Packaging dimensions: 150 x 240 x 200 mm (D x W x H)
Product weight: 850 g
Weight with packaging: 1672 g
