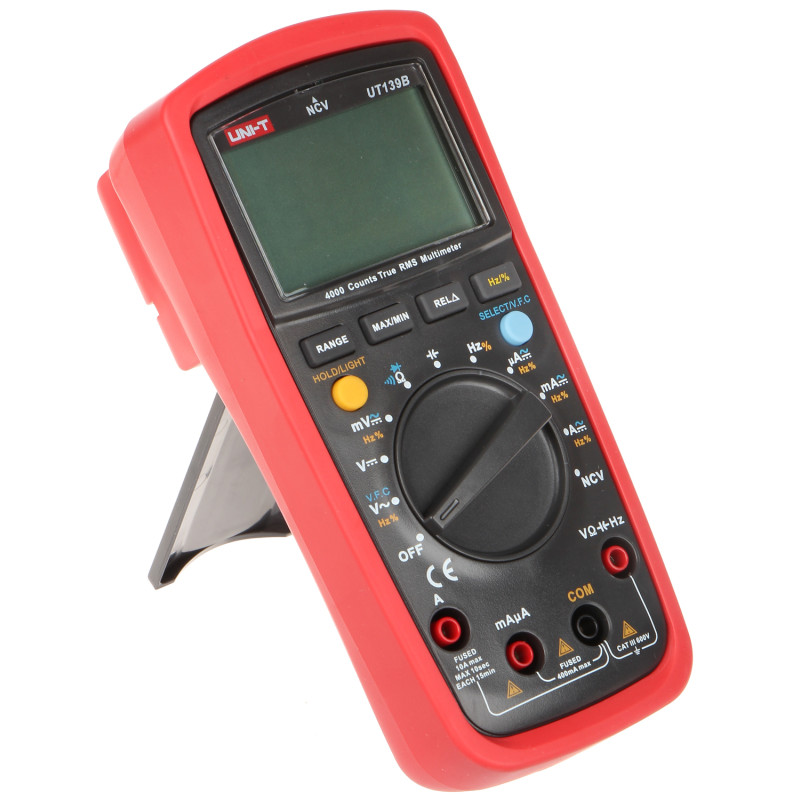

Digital multimeter with VFC and NCV function UNI-T UT-139B
zł253.44
Tax included
The UT-139B is an advanced, universal digital multimeter designed for professionals and advanced electronics enthusiasts. The device is characterised by high measurement precision and a robust design, making it a reliable tool for daily service and laboratory work. The multimeter enables a wide range of measurements, including DC and AC voltage, current, resistance, capacitance, and frequency. Thanks to the automatic measurement range selection function, operating the device is extremely intuitive and fast, which saves valuable time during the diagnostics of electronic circuits.
One of the key advantages of the UT-139B model is the built-in VFC (Voltage Frequency Converter) filter, which effectively eliminates high-frequency interference during AC voltage measurements, ensuring high accuracy even in difficult working conditions. Additionally, the device is equipped with an NCV (Non-Contact Voltage) function, enabling non-contact detection of electric fields, which significantly increases user safety when working with electrical installations. The relative measurement mode (REL) and the data hold function are further features that facilitate precise data analysis. A large, clear, backlit LCD display guarantees excellent visibility of results even in poorly lit areas. A robust housing and a low battery alarm complete the package, making this multimeter an excellent choice for every technician.
Digital multimeter with VFC and NCV function
Model: UNI-T UT-139B
EAN: 6931240045886 SKU: 931045886
- Automatic measurement range selection
- V.F.C. function (low-pass filter for AC voltages)
- NCV function (non-contact electric field detection)
- Relative measurement mode (REL)
- Data hold
- MAX / MIN value recording
- Large backlit LCD display
- Low battery alarm
Description
The UT-139B is an advanced, universal digital multimeter designed for professionals and advanced electronics enthusiasts. The device is characterised by high measurement precision and a robust design, making it a reliable tool for daily service and laboratory work. The multimeter enables a wide range of measurements, including DC and AC voltage, current, resistance, capacitance, and frequency. Thanks to the automatic measurement range selection function, operating the device is extremely intuitive and fast, which saves valuable time during the diagnostics of electronic circuits.
One of the key advantages of the UT-139B model is the built-in VFC (Voltage Frequency Converter) filter, which effectively eliminates high-frequency interference during AC voltage measurements, ensuring high accuracy even in difficult working conditions. Additionally, the device is equipped with an NCV (Non-Contact Voltage) function, enabling non-contact detection of electric fields, which significantly increases user safety when working with electrical installations. The relative measurement mode (REL) and the data hold function are further features that facilitate precise data analysis. A large, clear, backlit LCD display guarantees excellent visibility of results even in poorly lit areas. A robust housing and a low battery alarm complete the package, making this multimeter an excellent choice for every technician.
Specification
DC voltage measurement
40mV ±(0.7%+2) @ 10µV, 400mV ±(0.5%+2) @ 0.1mV, 4V ±(0.7%+3) @ 1mV, 40V ±(0.7%+3) @ 10mV, 400V ±(0.7%+3) @ 0.1V, 600V ±(0.7%+3) @ 1V
AC voltage measurement
V.F.C. OFF (45Hz-400Hz): 40mV-600V; V.F.C. ON (45Hz-400Hz): 200V-600V ±(4%+3)
DC current measurement
400µA-400mA ±(0.7%+2), 4A-10A ±(1%+3)
AC current measurement
400µA-400mA ±(1%+3), 4A-10A ±(1.2%+3)
Resistance measurement
400Ω-400kΩ ±(0.8%+2), 4MΩ ±(1.2%+2), 40MΩ ±(1.5%+3)
Capacitance measurement
9.999nF-99.99mF
Frequency measurement
9.999Hz-9.999MHz ±(0.1%+4)
Diode test
Yes
Continuity buzzer
Yes
Automatic range selection
Yes
Selected features
NCV (electric field detection), V.F.C. (400Hz low-pass filter), REL (relative measurement), Hold (data hold), MAX/MIN, LCD backlight, low battery alarm
Power supply
2 x 1.5V battery, type AA/LR6/FR6 (included)
Warranty
2 years
Manufacturer / Brand
UNI-T
Contents
1x UT-139B multimeter
2x 1.5V AA battery
Dimensions, Weight
Product dimensions: 48 x 176 x 81 mm (D x W x H)
Packaging dimensions: 60 x 215 x 160 mm (D x W x H)
Product weight: 420 g
Weight with packaging: 542 g
