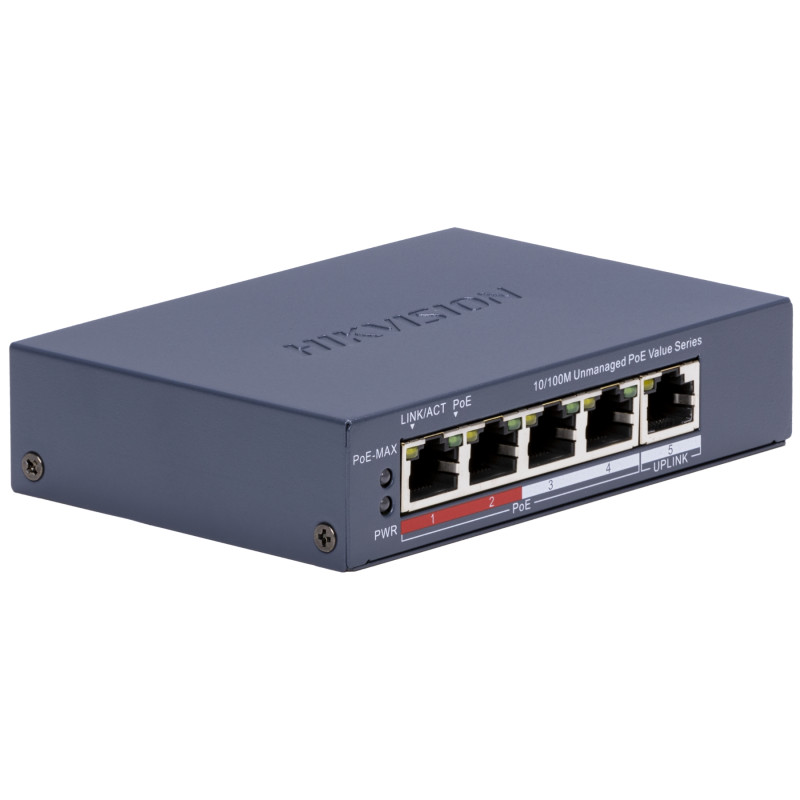

4 Port PoE Switch 10/100 Mbps + 1 Uplink Long Range 300m 45W 6kV Metal Housing Desktop Hikvision DS-3E0105P-E/M(C)
zł334.56
Tax included
The unmanaged Hikvision DS-3E0105P-E/M(C) PoE switch is a professional networking solution designed for maximum performance in IP monitoring systems and modern home and office networks. The device offers 4 Fast Ethernet ports (10/100 Mbps) with full support for IEEE 802.3af and IEEE 802.3at power standards, enabling simultaneous data and power transmission to end devices such as IP cameras, VoIP phones, or access points via a single UTP cable.
One of the most important advantages of this model is the innovative Long Range (Extend) mode, which, when activated, allows for stable signal and power transmission over a distance of up to 300 metres. This is a key feature in extensive installations where the standard 100-metre limit for Ethernet cable is insufficient. As a result, the user saves on additional signal boosters and complex cabling. The total power budget of the device is 45W, which allows for stable powering of several devices with standard power consumption.
The switch is enclosed in a solid metal housing, which not only protects internal components from mechanical damage but also acts as a heatsink. The fanless design ensures completely silent operation, which is important in office environments. Additionally, the device is equipped with advanced 6 kV surge protection, which secures the network against the effects of lightning strikes and sudden voltage spikes. Plug & Play technology makes the switch ready for operation immediately after taking it out of the box, without the need for complex software configuration.
4 Port PoE Switch 10/100 Mbps + 1 Uplink Long Range 300m 45W 6kV Metal Housing Desktop
Model: Hikvision DS-3E0105P-E/M(C)
EAN: 6931240093269 SKU: 931093267
- 4 PoE ports 10/100 Mbps supporting 802.3af/at standards
- 1 Uplink port 10/100 Mbps for connection to the upstream network
- Extend mode enabling PoE transmission up to 300 metres (10 Mbps)
- Total PoE power budget of 45W (up to 30W per port)
- High priority for ports 1 and 2 ensuring video smoothness
- Built-in 6 kV surge protection for PoE ports
- Durable metal housing with compact dimensions
- Fanless design ensuring silent operation
- Plug & Play technology - no configuration required
- Support for automatic MAC address learning and aging (2k)
Description
The unmanaged Hikvision DS-3E0105P-E/M(C) PoE switch is a professional networking solution designed for maximum performance in IP monitoring systems and modern home and office networks. The device offers 4 Fast Ethernet ports (10/100 Mbps) with full support for IEEE 802.3af and IEEE 802.3at power standards, enabling simultaneous data and power transmission to end devices such as IP cameras, VoIP phones, or access points via a single UTP cable.
One of the most important advantages of this model is the innovative Long Range (Extend) mode, which, when activated, allows for stable signal and power transmission over a distance of up to 300 metres. This is a key feature in extensive installations where the standard 100-metre limit for Ethernet cable is insufficient. As a result, the user saves on additional signal boosters and complex cabling. The total power budget of the device is 45W, which allows for stable powering of several devices with standard power consumption.
The switch is enclosed in a solid metal housing, which not only protects internal components from mechanical damage but also acts as a heatsink. The fanless design ensures completely silent operation, which is important in office environments. Additionally, the device is equipped with advanced 6 kV surge protection, which secures the network against the effects of lightning strikes and sudden voltage spikes. Plug & Play technology makes the switch ready for operation immediately after taking it out of the box, without the need for complex software configuration.
Specification
LAN Ports
1 x RJ45 10/100 Base-T - Uplink
4 x 10/100 Base-T (4 x PoE 802.3af/at)
Ports 1 and 2 have high transmission priority
PoE Standards
IEEE 802.3af (PoE)
IEEE 802.3at (PoE+)
Output Power
Maximum 30 W per single PoE port
Total power budget for all ports: 45 W
Transmission Range
Extend Off: 100 m, 100 Mb/s (UTP cat. 5e, 6)
Extend On: 300 m, 10 Mb/s (UTP cat. 5e, 6) - applies to ports 1-4
Performance
Switching Capacity: 1 Gbps
Packet forwarding rate: 0.744 Mpps
MAC Address Table
2k - automatic learning and refreshing of device list
Security
Surge protection: 6 kV on PoE ports
Port isolation in Extend mode
LED Indicators
Power (power supply)
PoE Max (budget load indicator)
Link/Act (port activity)
Power Supply
54 V DC / 920 mA (external power adapter included)
Power Consumption
Maximum power consumption (with PoE load): 50 W
Power consumption in standby mode: 5 W
Operating Conditions
Temperature: 0 °C ... 40 °C
Humidity: 5 % ... 95 % (non-condensing)
Housing
Material: Metal
Type: Desktop / Freestanding
Software and Features
The device operates in unmanaged mode, which means full automation of network processes without user intervention. The built-in port prioritisation algorithm (VIP ports 1-2) intelligently manages network traffic, giving priority to video streams from critical cameras, which prevents frame loss under heavy load. The Auto-MDI/MDIX function automatically detects the cable type (straight/crossover), eliminating connection errors. The Extend mode is implemented in hardware via a switch on the housing, which forces speed negotiation to 10 Mbps to achieve a stable connection over extreme distances up to 300m.
Warranty
3 years (36 months)
Contents
1x PoE Switch
1x 54V DC Power Adapter
1x User Manual
Dimensions, Weight
Product dimensions: 83 x 121 x 28 mm (D x W x H)
Packaging dimensions: 120 x 195 x 90 mm (D x W x H)
Product weight: 200 g
Weight with packaging: 674 g
