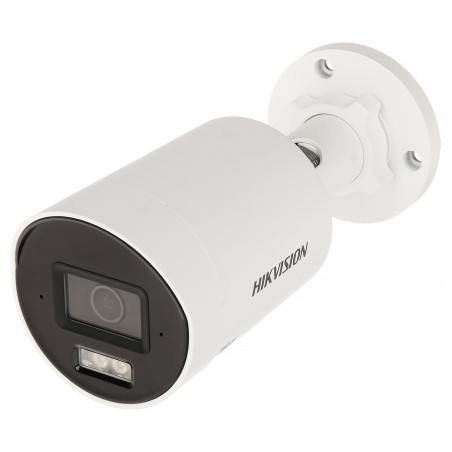

4K UHD 8Mpx AcuSense DarkFighter IP Camera IR 40m 2.8mm Lens IP67 PoE SD Slot Audio Microphone

Model: Hikvision DS-2CD2086G2H-IU(2.8MM)(EF)/PL

EAN: 6931240098059 SKU: 931098051

• 8.3 Mpx resolution - 4K UHD (3840 x 2160) for crystal clear images
• AcuSense technology - intelligent human and vehicle classification
• Powered by Darkfighter - excellent sensitivity in low-light conditions
• 105° wide viewing angle thanks to the 2.8 mm lens
• Infrared (IR) illuminator range up to 40 metres
• Built-in microphone with noise reduction and echo cancellation
• IP67 ingress protection rating - full weather resistance
• Support for Micro SD cards up to 512GB capacity
• Power supply via PoE (802.3af) or 12V DC
• Advanced H.265+ / H.265 / H.264+ image compression
• WDR 120dB function - wide lighting dynamic range
• Intelligent IVS image analysis (line crossing, intrusion, face detection)
• Remote access via Hik-Connect mobile app and iVMS-4200 software

Description

The IP camera is a professional monitoring device that redefines security standards through the use of ultra-high 4K UHD (8.3 Mpx) resolution. The main advantage of this model is AcuSense technology, based on deep learning algorithms, which allows for precise object classification. This enables the system to distinguish human silhouettes and vehicles from other moving elements such as leaves, animals, or rain, which drastically reduces the number of false alarms. Another key asset is the Powered by Darkfighter technology, which ensures incredible sensor sensitivity. This allows for the recording of clear, detailed images even in extremely difficult lighting conditions where standard cameras fail.

The device has been designed with durability and reliability in mind. A solid metal housing with an IP67 ingress protection rating guarantees full protection against dust and strong water jets, making it an ideal choice for outdoor installation in demanding climates. A wide viewing angle of 105 degrees allows for monitoring large areas using a single camera, which optimises the costs of the entire installation. Support for the PoE (Power over Ethernet) power standard significantly simplifies the installation process, enabling the transmission of both data and power via a single twisted-pair network cable.

The camera also offers advanced image enhancement features, such as WDR 120dB, which effectively handles high lighting contrasts, and 3D-DNR, which eliminates digital noise. A built-in microphone with noise suppression and echo cancellation allows for high-quality audio recording, providing an additional layer of evidence. Support for Micro SD cards up to 512GB ensures data security in the event of a network failure (ANR function), and modern H.265+ compression allows for significant hard drive space savings while maintaining the highest recording quality. This is a comprehensive tool for the most demanding video surveillance systems.

Specification

Standard and Resolution

Standard: IP; Resolution: 3840 x 2160 - 8.3 Mpx 4K UHD, 3200 x 1800 - 6 Mpx, 2688 x 1520 - 4 Mpx, 1920 x 1080 - 1080p, 1280 x 720 - 720p

Sensor and Lens

Sensor: 1/1.8 " Progressive Scan CMOS; Lens: 2.8 mm; Viewing angle: 105 °

Night Illumination

IR illuminator range: 40 m; DarkFighter technology: Yes (high sensitivity in low light)

Compression and Streams

Image compression method: H.265+ / H.265 / H.264+ / H.264 / MJPEG; Main stream transmission speed: 25 fps @ 8.3 Mpx

Audio

Built-in microphone: Yes; Audio transmission over network: Yes; AAC standard compliance: Yes; Functions: Audio noise suppression and echo cancellation

Image Functions

WDR - 120 dB (Wide Dynamic Range), 3D-DNR (Digital Noise Reduction), ROI (Region of Interest), BLC (Backlight Compensation), HLC (Highlight Compensation), WB (Automatic White Balance), AGC (Automatic Gain Control), Mirror, Sharpness

Intelligent Video Analytics (IVS)

Line crossing, intrusion, entry/exit detection, scene change, face detection, intelligent motion detection (distinguishing humans and vehicles), false alarm filtering

Network and Protocols

Network interface: 10/100 Base-T (RJ-45); ONVIF: Yes; WEB Server: Built-in; Max. number of on-line users: 6; RTSP URL: Main and sub-stream supported

Software and Access

Software and interface: The device works with the Hikvision ecosystem, offering access via the free Hik-Connect mobile app (Android/iOS) and professional iVMS-4200 client software for PCs. The Hik-Connect app enables instant live viewing from anywhere in the world thanks to P2P cloud technology, without the need for a static IP address or complicated router configuration. The user receives real-time push notifications upon detection of an intruder or vehicle. The software allows for remote playback of recordings, configuration of image parameters, management of detection zones, and two-way audio communication. The web interface (WEB Server) is intuitive and allows for full system administration from a browser, offering advanced IVS analysis settings, recording schedules, and user permission management.

Local Storage

Memory card slot: Support for Micro SD cards up to 512GB; ANR function: Recording on the card during loss of connection to the recorder and subsequent synchronisation; NAS support: Yes

Power Supply and Consumption

Power supply: PoE (802.3af), 12 V DC / 580 mA; Power consumption: ≤ 8.5 W @ PoE, ≤ 7 W @ 12 V DC

Default Configuration

Default IP address: 192.168.1.64; Default login: admin; Ports: WWW (80), App (8000), ONVIF (80)

Housing and Environment

Type: Compact; Material: Metal; Colour: White; Ingress protection: IP67; Operating temperature: -30 °C ... 60 °C

Physical Parameters

Weight: 0.52 kg; Dimensions: Ø 74 x 179 mm

Additional Information

Series: AcuSense; Supported languages: Polish; Warranty: 3 years; SAP Code: 311330955

Contents

1x IP Camera

1x Mounting kit

1x RJ-45 connector cover

1x User manual

Dimensions, Weight

Product dimensions: 179 x 74 x 74 mm (D x W x H)

Packaging dimensions: 235 x 120 x 115 mm (D x W x H)

Product weight: 520 g

Weight with packaging: 772 g
