- New

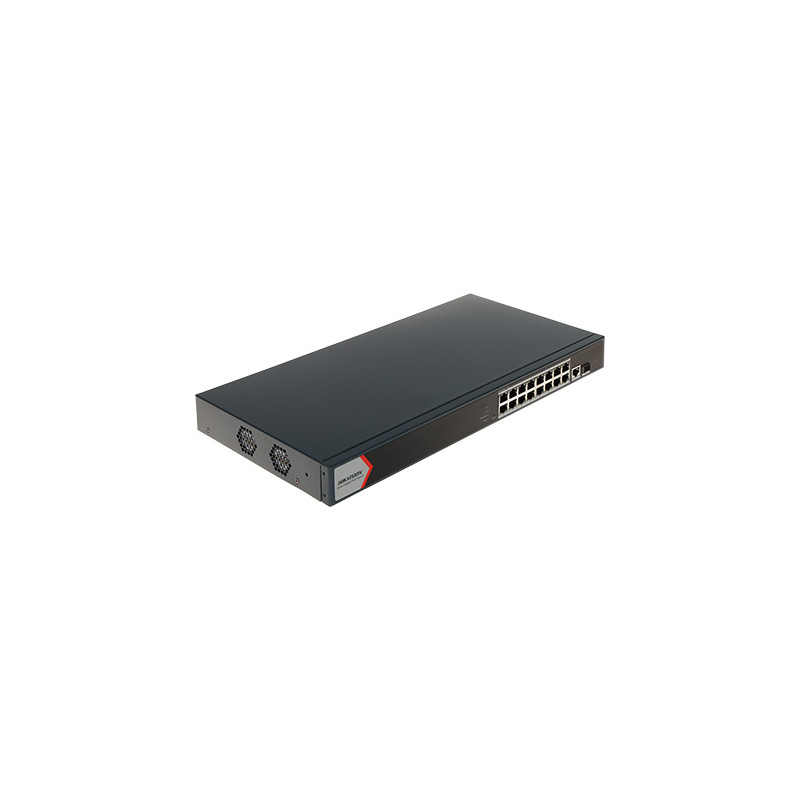

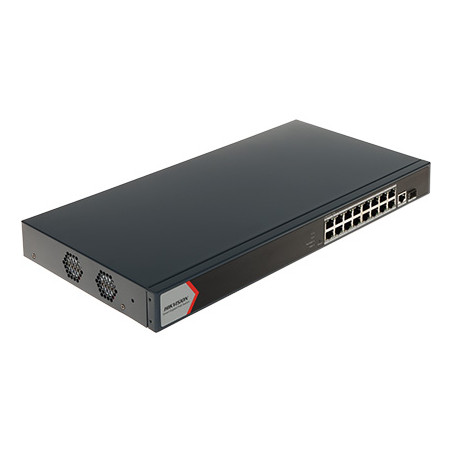

16-port 10/100/1000 Mbps PoE Switch with SFP port and management function Hikvision DS-3E1518P-EI(V2)
zł2,228.76
Tax included
The DS-3E1518P-EI(V2) switch is an advanced network device designed specifically for demanding IP CCTV video surveillance systems. Thanks to the support for 16 Gigabit Ethernet ports with PoE (Power over Ethernet) function in the 802.3af/at standard, the device allows for simultaneous data transmission and power supply for IP cameras, which significantly simplifies installation and reduces the number of necessary cables. The switch offers high throughput, which is crucial when handling large high-resolution video data streams.
The device is equipped with additional Uplink ports (RJ45 and SFP), which allows for flexible connection of the switch to NVR recorders or other backbone network elements using fibre optics or twisted pair cables. A robust design and 6 kV surge protection guarantee stable operation even in difficult environmental conditions. The device's manageability allows for advanced control over the network, including link aggregation, port status monitoring, and remote configuration, making it an ideal solution for professional security system installers. Thanks to the intuitive iVMS-4200 software, the user gains full control over the network topology and system performance.
16-port 10/100/1000 Mbps PoE Switch with SFP port and management function
Model: Hikvision DS-3E1518P-EI(V2)
EAN: 6931240033579 SKU: 931033575
- 16 PoE ports 10/100/1000 Mbps
- 1 SFP port 1000 Mbps (Uplink)
- 1 RJ45 port 10/100/1000 Mbps (Uplink)
- Maximum output power 30W per PoE port
- Total PoE budget: 230W
- Management via iVMS-4200 application
- Static link aggregation support (8 groups)
- 6 kV surge protection
- Extend mode (up to 300m at 10 Mbps)
Description
The DS-3E1518P-EI(V2) switch is an advanced network device designed specifically for demanding IP CCTV video surveillance systems. Thanks to the support for 16 Gigabit Ethernet ports with PoE (Power over Ethernet) function in the 802.3af/at standard, the device allows for simultaneous data transmission and power supply for IP cameras, which significantly simplifies installation and reduces the number of necessary cables. The switch offers high throughput, which is crucial when handling large high-resolution video data streams.
The device is equipped with additional Uplink ports (RJ45 and SFP), which allows for flexible connection of the switch to NVR recorders or other backbone network elements using fibre optics or twisted pair cables. A robust design and 6 kV surge protection guarantee stable operation even in difficult environmental conditions. The device's manageability allows for advanced control over the network, including link aggregation, port status monitoring, and remote configuration, making it an ideal solution for professional security system installers. Thanks to the intuitive iVMS-4200 software, the user gains full control over the network topology and system performance.
Specification
LAN ports
16 x RJ45 10/100/1000 Base-T (PoE 802.3af/at), 1 x SFP 1000 Base-X (Uplink), 1 x RJ45 10/100/1000 Base-T (Uplink)
Transmission speed
10/100/1000 Mbps for LAN/PoE ports, 1000 Mbps for SFP port
Maximum output power
30 W per PoE port
Maximum total power
230 W
MAC address table
8 k
Management
Yes, configuration and management via the iVMS-4200 application. The software enables full control over the device: remote firmware updates, real-time network topology preview, generation of statistical reports regarding network traffic, VLAN configuration, link aggregation (LACP), and monitoring of PoE power status for each port individually. The iVMS-4200 application provides an intuitive graphical interface that allows for quick device discovery on the network, IP addressing changes, and connection diagnostics, which is essential for maintaining the stability of large IP surveillance systems.
Default IP address
10.180.190.200
Default login / password
admin / -
Operating modes
Extend On: 300m (10 Mbps), Extend Off: 100m (1000 Mbps)
Selected features
Link aggregation, support for 8 aggregation groups, topology preview, flow control, remote configuration and update, 6 kV protection
LED indicators
Power, Link/Act, PoE, PoE Max, Uplink ports
Certificates
CE
Power supply
100 ... 240 V AC
Operating temperature
0 °C ... 45 °C
Contents
1x PoE Switch DS-3E1518P-EI(V2)
1x User manual
Mounting elements
Dimensions, Weight
Product dimensions: 221 x 440 x 44 mm (D x W x H)
Package dimensions: 310 x 530 x 95 mm (D x W x H)
Product weight: 2570 g
Weight with packaging: 3376 g
