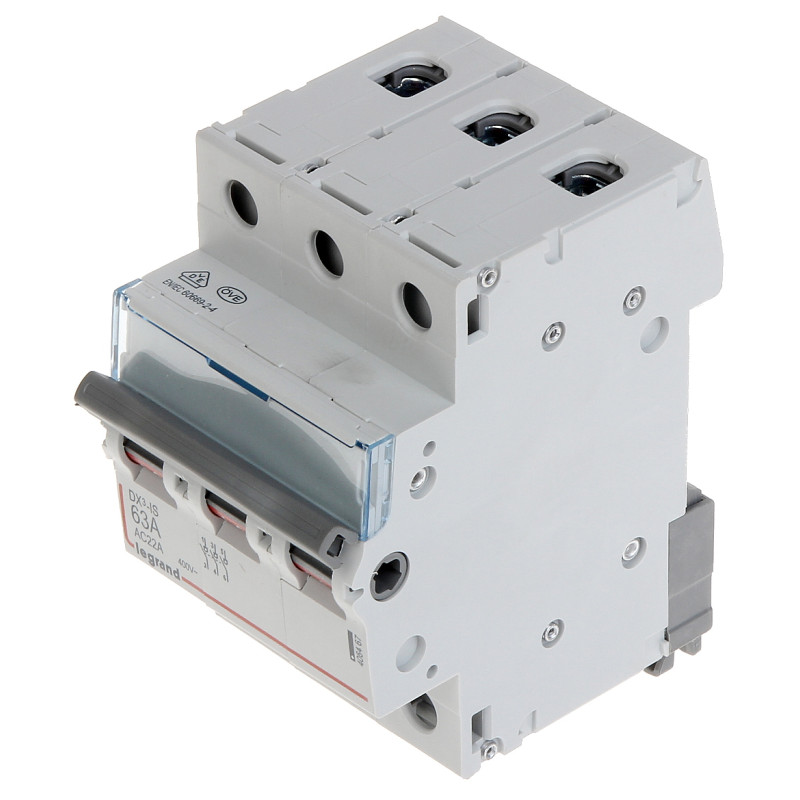

Three-phase isolator switch 63A 500V AC for DIN rail TS-35 main power switch modular fuse LEGRAND LE-406467
zł163.16
Tax included
The LE-406467 isolator switch is a high-class modular device from the renowned Legrand brand, designed to provide maximum safety and reliability in three-phase electrical installations. Its primary function is the effective and safe isolation of the entire installation or specific circuits from the power supply, which is crucial during maintenance, servicing, or in emergency situations. The device features a rated current of 63 A, allowing for wide application in residential, commercial, and industrial buildings.
Product advantages:
One of the most important advantages of the LE-406467 switch is its robust construction and ease of mounting on a standard DIN rail TS-35, making it compatible with most modern electrical distribution boards. The product is equipped with a clear labelling area, which allows for precise identification of the protected circuit, significantly facilitating subsequent operation and system maintenance. Additionally, the ability to connect using comb or pin busbars allows for aesthetic and quick bridging between devices in the distribution board.
Safety and durability:
The switch meets rigorous safety standards, offering a rated insulation voltage of 500 V AC and an impulse withstand voltage of up to 6 kV. The AC22A utilisation category ensures that the device can handle the switching of mixed loads, which is typical for standard building installations. Made of high-quality plastic, it provides resistance to mechanical damage and longevity, which is confirmed by the manufacturer's two-year warranty. By choosing Legrand equipment, you are investing in proven solutions that have set standards in the electrical installation industry for years.
Three-phase isolator switch 63A 500V AC for DIN rail TS-35 main power switch modular fuse
Model: LEGRAND LE-406467
EAN: 6931240036808 SKU: 931036801
- Three-phase isolator switch with a rated current of 63A
- Designed for mounting on a standard DIN rail TS-35
- Compatible with comb or pin busbars
- Integrated label holder for easy circuit identification
- High impulse withstand voltage up to 6 kV
- AC22A utilisation category ensuring versatile application
- Robust screw terminals guaranteeing a durable electrical connection
- Product from the renowned electrical equipment manufacturer Legrand
Description
The LE-406467 isolator switch is a high-class modular device from the renowned Legrand brand, designed to provide maximum safety and reliability in three-phase electrical installations. Its primary function is the effective and safe isolation of the entire installation or specific circuits from the power supply, which is crucial during maintenance, servicing, or in emergency situations. The device features a rated current of 63 A, allowing for wide application in residential, commercial, and industrial buildings.
Product advantages:
One of the most important advantages of the LE-406467 switch is its robust construction and ease of mounting on a standard DIN rail TS-35, making it compatible with most modern electrical distribution boards. The product is equipped with a clear labelling area, which allows for precise identification of the protected circuit, significantly facilitating subsequent operation and system maintenance. Additionally, the ability to connect using comb or pin busbars allows for aesthetic and quick bridging between devices in the distribution board.
Safety and durability:
The switch meets rigorous safety standards, offering a rated insulation voltage of 500 V AC and an impulse withstand voltage of up to 6 kV. The AC22A utilisation category ensures that the device can handle the switching of mixed loads, which is typical for standard building installations. Made of high-quality plastic, it provides resistance to mechanical damage and longevity, which is confirmed by the manufacturer's two-year warranty. By choosing Legrand equipment, you are investing in proven solutions that have set standards in the electrical installation industry for years.
Specification
Device type
Isolator switch, Three-phase (3-pole)
Rated current
63 A - maximum continuous current that can flow through the device without damage
Rated voltage
500 V AC - maximum operating voltage in AC systems
Operating frequency
50 / 60 Hz - standard power grid frequency
Rated short-time withstand current
2000 A - device's ability to withstand short-circuit current for a specified time
Rated impulse withstand voltage
6 kV - insulation resistance to sudden surges, e.g., atmospheric
Number of poles
3 - dedicated to three-phase installations
Utilisation category
AC22A - switching of mixed resistive and inductive loads, including moderate overloads
Terminal type
Screw terminals ensuring secure mechanical and electrical contact
Mounting method
DIN rail TS-35 - standard mounting system in modular distribution boards
Housing material
High-quality plastic resistant to high temperatures and damage
Width in modules
3 modules (17.5 mm each) - total width of the device in the distribution board
Selected features
Possibility of connection using comb or pin busbars; Dedicated space for a circuit description label; High mechanical durability
Compliance with standards
CE, IEC/EN 60947-3 - European safety standards for low-voltage equipment
Warranty
2 years (24 months)
Contents
1x Isolator switch LE-406467
Dimensions, Weight
Product dimensions: 75 x 53 x 83 mm (D x W x H)
Packaging dimensions: 55 x 100 x 90 mm (D x W x H)
Product weight: 240 g
Weight with packaging: 266 g
