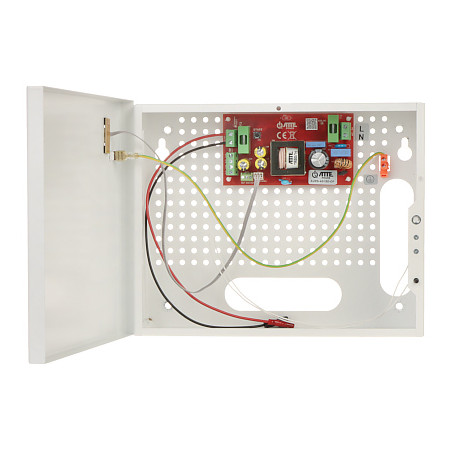

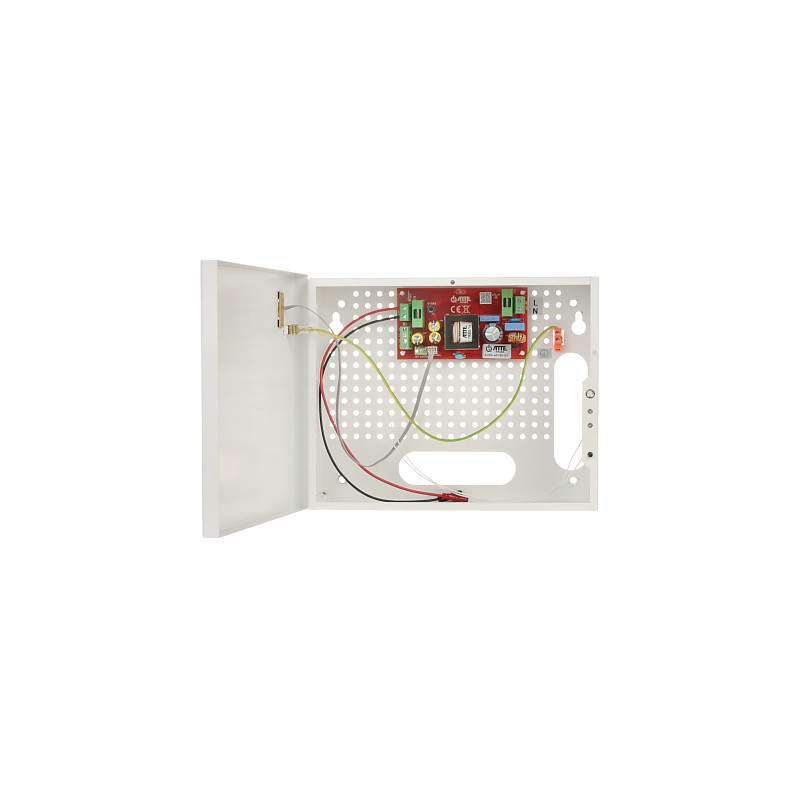

12V 3.5A switching buffer power supply for alarm and CCTV systems ATTE AUPS-40-120-E
zł422.86
Tax included
The AUPS-40-120-E switching buffer power supply is a professional solution dedicated to powering alarm systems, sensors, keypad locks, industrial cameras, manipulators, and intercoms. The device has been designed to ensure the continuity of security system operation in the event of a main power failure. Thanks to the use of a high-quality switching converter, the power supply is characterised by high energy efficiency of 92% at a 40W load, which translates into lower energy losses and longer component life.
12V 3.5A switching buffer power supply for alarm and CCTV systems
Model: ATTE AUPS-40-120-E
EAN: 6931240060957 SKU: 931060955
- Current efficiency 3.5A (continuous operation)
- Space for 12V/7Ah battery
- High efficiency 92%
- OC type technical outputs (OUF, ACF)
- Series of protections: short-circuit, overload, thermal, anti-tamper
- Compatibility with ATTE raster mounting system
- LED power supply operation signalling
Description
The AUPS-40-120-E switching buffer power supply is a professional solution dedicated to powering alarm systems, sensors, keypad locks, industrial cameras, manipulators, and intercoms. The device has been designed to ensure the continuity of security system operation in the event of a main power failure. Thanks to the use of a high-quality switching converter, the power supply is characterised by high energy efficiency of 92% at a 40W load, which translates into lower energy losses and longer component life.
Specification
Switching - a device that converts AC mains voltage to DC using a switching converter with a high-frequency transformer.
The power supply offers a current efficiency of 3.5A in continuous operation and has a dedicated space for a 12V battery with a capacity of 7Ah, which allows for maintaining system operation in emergency situations. The device design supports the ATTE module raster mounting system (10.8 mm raster), which significantly facilitates installation inside the enclosure. The power supply is equipped with a series of protections, including short-circuit, overload, thermal, and anti-tamper, which guarantees full safety for connected devices. An additional advantage is the OC type technical outputs, which inform about the power status (output voltage loss OUF and 230V mains loss ACF). The device is intended for wall mounting indoors.
190 ... 260 V AC / 50 Hz
Power supply type
10.8 ... 13.8 V DC (buffer operation)
Input voltage
3.5 A (continuous operation)
Output voltage
max. 1.5 A
Current efficiency (total)
42 W (continuous operation)
Battery charging current
Number of outputs
Power
2
Selected features
LED signalling; 92% efficiency @ 40W; OC type technical outputs (OUF - output voltage loss, ACF - 230V mains loss); Main cable glands at the back of the enclosure; ATTE module raster mounting system (10.8 mm); Wall mounting; Indoor use; IP20 protection class.
Protections
Short-circuit, Overload, Surge, Thermal, Anti-tamper, Reverse connection, Against excessive discharge, Against overcharging.
Operation control
Signalling of AC mains power presence, DC output voltage presence, and battery charging.
Battery space
12 V / 7 Ah
Max. battery dimensions
220 x 120 x 80 mm
Operating temperature
-25 ... 50 °C
Warranty
3 years
Contents
1x AUPS-40-120-E buffer power supply
Dimensions, Weight
Product dimensions: 95 x 255 x 205 mm (D x W x H)
Packaging dimensions: 105 x 265 x 215 mm (D x W x H)
Product weight: 1400 g
Weight with packaging: 1498 g
