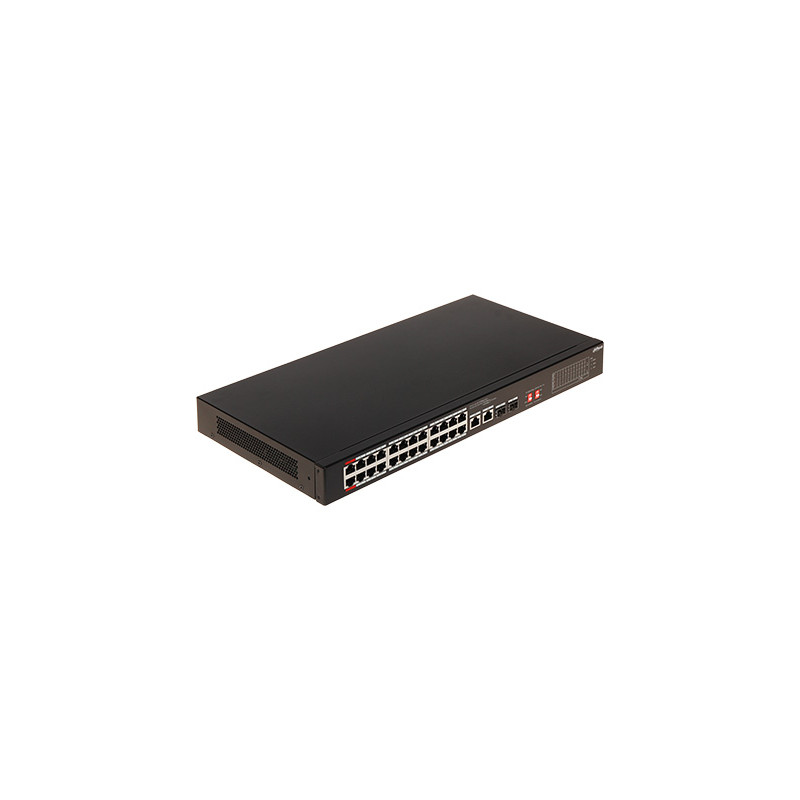

24-port 10/100 Mbps PoE Switch with 2 Uplink ports and 2 SFP ports Dahua S3226-24ET-240
zł1,127.91
Tax included
The S3226-24ET-240 PoE switch is an advanced industrial-grade device designed for efficient and reliable data transmission in local networks. The device offers 24 LAN ports with PoE (Power over Ethernet) support, allowing for simultaneous data transmission and power supply to end devices such as IP cameras, access points, or VoIP phones without the need for additional power adapters. The switch ensures smooth transmission at 10/100 Mbps on PoE ports, which is sufficient for most video surveillance systems. Additionally, the device is equipped with two Uplink ports (RJ45 10/100/1000 Mbps) and two SFP ports (1000 Base-X), enabling flexible connection to the backbone network or other switches via fibre optics, ensuring high bandwidth and resistance to electromagnetic interference. The advantages of this model include a built-in watchdog mechanism that automatically monitors the status of connected devices and restarts the PoE port if necessary, which significantly increases system stability. The EXTEND operating mode allows for extending the transmission range up to 250 metres at 10 Mbps, which is crucial in extensive CCTV installations. A robust design and built-in surge protection protect the device against the effects of atmospheric discharges and potential differences. The switch is an ideal solution for professional surveillance systems where high reliability, ease of power management, and the ability to expand the network with fibre optic connections are required.
24-port 10/100 Mbps PoE Switch with 2 Uplink ports and 2 SFP ports
Model: Dahua S3226-24ET-240
EAN: 6931240097106 SKU: 931097104
- 24 PoE ports (2x Hi-PoE, 22x PoE 802.3af/at)
- 2 Uplink ports (RJ45) and 2 SFP ports
- Maximum output power 240W
- EXTEND mode (range up to 250m)
- Built-in watchdog for automatic port restart
- Port isolation (VLAN mode)
- Surge protection
- Housing adapted for RACK cabinet mounting
Description
The S3226-24ET-240 PoE switch is an advanced industrial-grade device designed for efficient and reliable data transmission in local networks. The device offers 24 LAN ports with PoE (Power over Ethernet) support, allowing for simultaneous data transmission and power supply to end devices such as IP cameras, access points, or VoIP phones without the need for additional power adapters. The switch ensures smooth transmission at 10/100 Mbps on PoE ports, which is sufficient for most video surveillance systems. Additionally, the device is equipped with two Uplink ports (RJ45 10/100/1000 Mbps) and two SFP ports (1000 Base-X), enabling flexible connection to the backbone network or other switches via fibre optics, ensuring high bandwidth and resistance to electromagnetic interference.
The advantages of this model include a built-in watchdog mechanism that automatically monitors the status of connected devices and restarts the PoE port if necessary, which significantly increases system stability. The EXTEND operating mode allows for extending the transmission range up to 250 metres at 10 Mbps, which is crucial in extensive CCTV installations. A robust design and built-in surge protection protect the device against the effects of atmospheric discharges and potential differences. The switch is an ideal solution for professional surveillance systems where high reliability, ease of power management, and the ability to expand the network with fibre optic connections are required.Specification
LAN ports
24x RJ45 (2x Hi-PoE + 22x PoE 802.3af/at) 10/100 Base-T, 2x Uplink (RJ45 10/100/1000 Base-T / SFP 1000 Base-X)
Transmission speed
10/100 Mbps (PoE ports), 10/100/1000 Mbps (Uplink), 1000 Mbps (SFP)
Management
None (unmanaged device)
Output power
30W per PoE port, 60W per Hi-PoE port, 240W total
Operating modes
Extend On: 250m at 10 Mbps; Extend Off: 100m at 100 Mbps
MAC address table
8k
Selected features
EXTEND mode, built-in watchdog, port isolation (VLAN), QoS, surge protection
LED indicators
Power, Link/Act, PoE, System
Certificates
CE
Power supply
100-240V AC
Operating temperature
-10°C to 55°C
Warranty
5 years
Contents
1x S3226-24ET-240 Switch, power cable, user manual
Dimensions, Weight
Product dimensions: 300 x 440 x 44 mm (D x W x H)
Packaging dimensions: 340 x 540 x 95 mm (D x W x H)
Product weight: 2380 g
Weight with packaging: 3220 g
