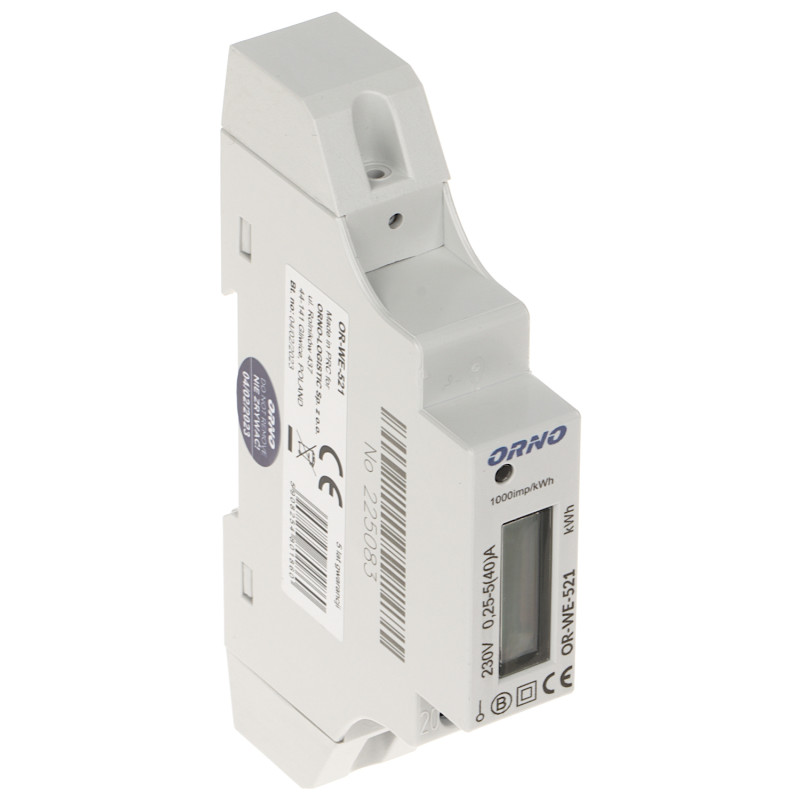

Single Phase Electricity Meter DIN Rail LCD kWh Backlit 40A Precision ORNO OR-WE-521
zł156.20
Tax included
The electricity meter is an advanced measuring device that allows for precise monitoring of power consumption in single-phase installations. Thanks to its compact design and mounting on a standard DIN rail TS-35, it is ideal for both home and industrial distribution boards. The main advantage of this model is the clear LCD display with blue backlight, which enables easy data reading even in poorly lit areas. The device is characterised by a high measurement accuracy of 0.001 kWh, which allows for a very detailed analysis of energy costs. A robust housing made of high-quality plastic ensures durability and safety of use for years.
An additional advantage is the pulse output, which allows for the connection of external counting systems, making this meter an excellent component of smart home or building automation systems. The product complies with rigorous European standards, which guarantees its reliability and precision. By choosing this meter, you gain full control over electricity expenses, which promotes savings and an ecological lifestyle. A long, 5-year manufacturer warranty confirms the highest quality of this measuring instrument. The device is resistant to difficult working conditions in a wide temperature range from -25 to 55 degrees Celsius. The IP51 protection class protects against dust and dripping water, which increases reliability in control cabinets. The meter is extremely simple to install, occupying only one module in the distribution board, which allows for optimal space utilisation.
Single Phase Electricity Meter DIN Rail LCD kWh Backlit 40A Precision
Model: ORNO OR-WE-521
EAN: 6931240052846 SKU: 931052843
- Precise electricity measurement in single-phase systems
- Clear LCD display with blue backlight (5+2 digits)
- Mounting on standard DIN rail TS-35 (1 module width)
- High measurement accuracy up to 0.001 kWh
- Pulse output for integration with external systems
- Operation signaling via LED
- Includes two terminal seals for connection protection
- Compliance with EN50470-1:2006 and EN50470-3:2006 standards
- Wide operating temperature range from -25°C to 55°C
- Long 5-year manufacturer warranty
Description
The electricity meter is an advanced measuring device that allows for precise monitoring of power consumption in single-phase installations. Thanks to its compact design and mounting on a standard DIN rail TS-35, it is ideal for both home and industrial distribution boards. The main advantage of this model is the clear LCD display with blue backlight, which enables easy data reading even in poorly lit areas. The device is characterised by a high measurement accuracy of 0.001 kWh, which allows for a very detailed analysis of energy costs. A robust housing made of high-quality plastic ensures durability and safety of use for years.
An additional advantage is the pulse output, which allows for the connection of external counting systems, making this meter an excellent component of smart home or building automation systems. The product complies with rigorous European standards, which guarantees its reliability and precision. By choosing this meter, you gain full control over electricity expenses, which promotes savings and an ecological lifestyle. A long, 5-year manufacturer warranty confirms the highest quality of this measuring instrument. The device is resistant to difficult working conditions in a wide temperature range from -25 to 55 degrees Celsius. The IP51 protection class protects against dust and dripping water, which increases reliability in control cabinets. The meter is extremely simple to install, occupying only one module in the distribution board, which allows for optimal space utilisation.
Specification
Device type
Electricity meter, Single-phase - designed for monitoring energy consumption in domestic and industrial installations
Rated voltage
230 V AC, 50 Hz - standard AC mains voltage
Measurement unit
kWh (kilowatt-hour) - basic unit of electricity billing
Current parameters
5 A (Base current) / 40 A (Maximum load current)
LCD display
5+2 digits (format 00000.00 kWh) - provides precise reading with blue backlight
Measurement accuracy
0.001 kWh - very high precision allowing for accurate consumption tracking
Pulse frequency
1000 imp/kWh - standard pulse output for remote reading systems
Connector type
Screw terminals with a maximum wire cross-section of 6 mm²
Selected features
LCD backlight, LED signalling, Pulse output, Seal protection (2 pcs included)
Housing and mounting
High-quality plastic, DIN rail TS-35 mounting, 1 module width (17.5 mm)
Protection class
IP51 - protection against dust and vertically falling water drops
Operating conditions
Operating temperature: -25 °C ... 55 °C; Humidity: non-condensing
Software and logic
The meter software is based on an advanced algorithm for real-time analogue-to-digital signal processing. The microcontroller operating system manages precise sampling of voltage and current, calculating active power taking into account phase shifts. The graphical interface on the 5+2 LCD display provides a clear presentation of data on total energy consumption in kilowatt-hours. The software also controls the pulse output logic (1000 imp/kWh), which allows for integration with BMS (Building Management System). Built-in non-volatile EEPROM memory ensures that all accumulated measurement data is safe and will not be lost in the event of a main power failure. The system also has an auto-calibration and internal error monitoring function.
Compliance and standards
EN50470-1:2006, EN50470-3:2006, Directive 2014/32/EU (MID)
Warranty
5 years - long-term manufacturer protection proving high product quality
Contents
1x Electricity meter OR-WE-521
2x Terminal seal
1x User manual
Dimensions, Weight
Product dimensions: 60 x 18 x 110 mm (D x W x H)
Packaging dimensions: 95 x 100 x 20 mm (D x W x H)
Product weight: 70 g
Weight with packaging: 88 g
