- New

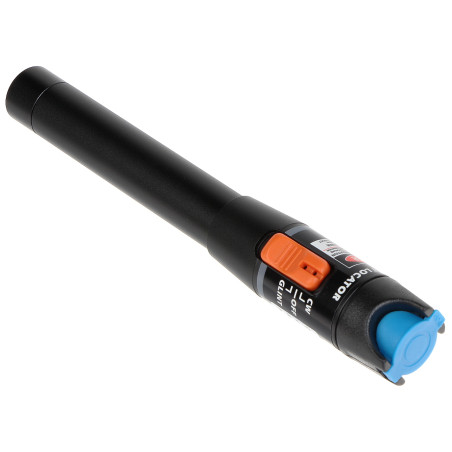

Visual Fault Locator VFL 650nm 10mW 10km Fiber Tester 2.5mm Connector TriBrer BML-205-10
zł170.65
Tax included
The BML-205-10 laser fiber tester is a professional tool designed for optical fault location in fiber optic installations. The device, also known as a Visual Fault Locator (VFL), enables fast and extremely precise detection of breakages, fractures, or excessive bending in glass fibers. By generating intense visible light with a wavelength of 650 nm, the technician can see the light leakage at the fault point with the naked eye, which significantly speeds up maintenance and installation work.
A key advantage of the BML-205-10 model is its high output power of over 10 mW. This parameter allows for effective testing of fiber optic sections from 8 up to 10 kilometres, making it a versatile tool for both local and wide-area networks. The device offers two operating modes: continuous mode (CW), ideal for stable continuity verification, and pulsed mode (GLINT) at a frequency of 2 Hz, which facilitates fault location in strong ambient light conditions.
The tester's design has been thought out for demanding working conditions. The housing, made of high-quality powder-coated aluminium, ensures resistance to mechanical damage while keeping the device lightweight and handy. The universal 2.5 mm connector allows for direct compatibility with the most popular plug standards, such as SC, FC, and ST, without the need for additional adapters. Additionally, the built-in port cover protects the optical system from dust and contamination, which extends the laser's lifespan. The set also includes a practical case that facilitates transport and protects the tester in a tool bag. It is an indispensable piece of equipment for every technician dealing with modern telecommunications and CCTV systems based on fiber optics.
Visual Fault Locator VFL 650nm 10mW 10km Fiber Tester 2.5mm Connector
Model: TriBrer BML-205-10
EAN: 6931240023105 SKU: 931023100
- Visual Fault Locator (VFL) for optical fibers
- High laser output power over 10 mW
- Operating range up to 10 kilometres
- Universal 2.5 mm connector (SC/FC/ST)
- Two operating modes: continuous (CW) and pulsed (GLINT)
- Durable powder-coated aluminium housing
- Compatible with single-mode and multi-mode fibres
- Integrated dust cover for the port
- Compact dimensions and low weight
- Practical carrying case included
Description
The BML-205-10 laser fiber tester is a professional tool designed for optical fault location in fiber optic installations. The device, also known as a Visual Fault Locator (VFL), enables fast and extremely precise detection of breakages, fractures, or excessive bending in glass fibers. By generating intense visible light with a wavelength of 650 nm, the technician can see the light leakage at the fault point with the naked eye, which significantly speeds up maintenance and installation work.
A key advantage of the BML-205-10 model is its high output power of over 10 mW. This parameter allows for effective testing of fiber optic sections from 8 up to 10 kilometres, making it a versatile tool for both local and wide-area networks. The device offers two operating modes: continuous mode (CW), ideal for stable continuity verification, and pulsed mode (GLINT) at a frequency of 2 Hz, which facilitates fault location in strong ambient light conditions.
The tester's design has been thought out for demanding working conditions. The housing, made of high-quality powder-coated aluminium, ensures resistance to mechanical damage while keeping the device lightweight and handy. The universal 2.5 mm connector allows for direct compatibility with the most popular plug standards, such as SC, FC, and ST, without the need for additional adapters. Additionally, the built-in port cover protects the optical system from dust and contamination, which extends the laser's lifespan. The set also includes a practical case that facilitates transport and protects the tester in a tool bag. It is an indispensable piece of equipment for every technician dealing with modern telecommunications and CCTV systems based on fiber optics.
Specification
Device type
Visual Fault Locator (VFL)
Optical wavelength
650 nm - red light visible to the human eye
Source output power
> 10 mW (ensures high brightness of the fault point)
Effective range
8 km to 10 km (depending on the quality and attenuation of the tested fiber)
Connector type
Universal 2.5 mm port (supports SC, FC, ST standards without adapters)
Fiber compatibility
Designed for use with single-mode (SM) and multi-mode (MM) fibers
Lighting modes
CW - continuous light for constant verification, GLINT - 2 Hz pulsed light for easier detection
Material
Durable aluminium alloy, powder-coated in black
Optics protection
Integrated dust cover protecting the laser emitter from dirt
Power supply
3V DC - requires 2 x 1.5V AA / LR6 alkaline batteries (not included)
Ergonomics
Compact pen-type dimensions, easy operation with one function button
Weight
80 g (net weight without installed power batteries)
Dimensions
Body diameter Ø 26 mm, total device length 175 mm
Included accessories
Durable fabric carrying case with belt loop
Application
Location of fiber breaks, identification of bends, continuity testing, fiber identification in cable bundles, quality control of mechanical and fusion splices. Ideal tool for installers of FTTH networks, LAN, and CCTV monitoring systems based on fiber optic backbones. Allows for quick diagnostics without the use of expensive OTDR reflectometers.
Contents
1x BML-205-10 laser fiber tester
1x Protective case
1x User manual
Dimensions, Weight
Product dimensions: 175 x 26 x 26 mm (D x W x H)
Packaging dimensions: 195 x 70 x 35 mm (D x W x H)
Product weight: 80 g
Weight with packaging: 132 g
