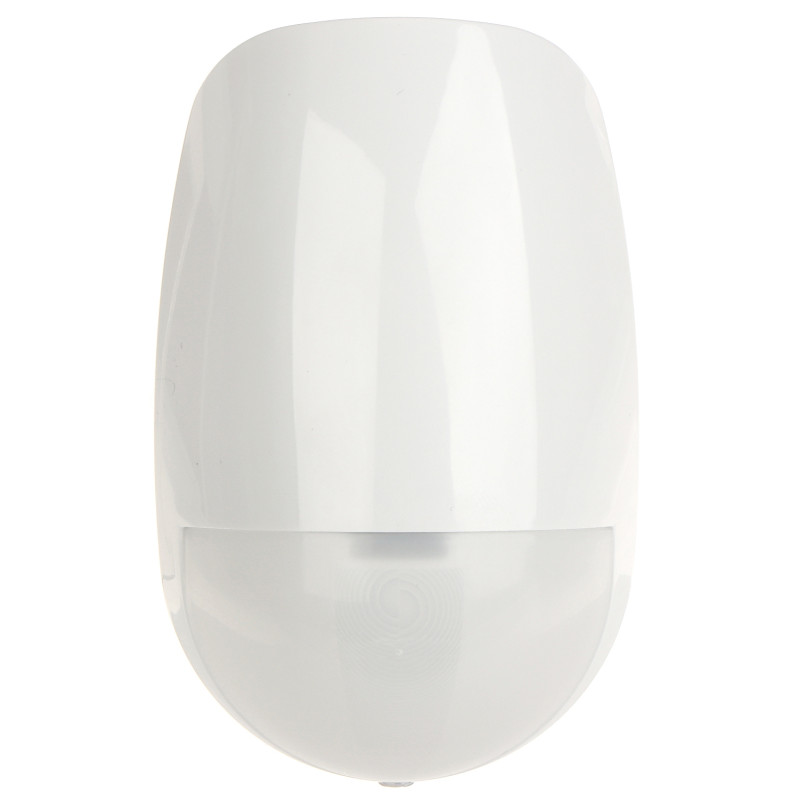

Dual PIR and Microwave Motion Detector Pet Immune 30kg Digital Indoor Grade 2 Alarm System Hikvision DS-PDD12P-EG2
zł222.63
Tax included
The Hikvision DS-PDD12P-EG2 is an advanced, wired dual-technology detector that redefines indoor security standards. The device combines two independent detection technologies: passive infrared (PIR) and microwave (MW). This solution drastically reduces the risk of false alarms, which in traditional detectors can be triggered by sudden temperature changes, draughts, or air mass movement. Thanks to an intelligent signal processing algorithm, the detector only activates an alarm when both sensors detect an intruder simultaneously.
One of the key advantages of this model is its full immunity to pets weighing up to 30 kg. This allows dogs or cats to move freely within the protected zone without the risk of triggering the alarm system unnecessarily. It is an ideal solution for pet owners who do not want to compromise on a high level of security.
The device features a detection range of up to 12 metres with a wide viewing angle of nearly 86 degrees. Additionally, the detector has built-in creep zone protection, which prevents an intruder from slipping directly under the device. Digital temperature compensation automatically adjusts the sensor sensitivity to ambient conditions, ensuring consistent detection effectiveness regardless of the season.
Compliance with the EN50131-2-4 Grade 2 standard confirms that the product is suitable for professional alarm installations in homes, offices, and retail outlets. The solid white housing blends discreetly into the interior decor, and the built-in tamper protection guards against unauthorised opening of the device. By choosing the Hikvision DS-PDD12P-EG2, you are investing in peace of mind and reliability confirmed by a global leader in security systems.
Dual PIR and Microwave Motion Detector Pet Immune 30kg Digital Indoor Grade 2 Alarm System
Model: Hikvision DS-PDD12P-EG2
EAN: 6931240044193 SKU: 931044195
- Dual technology: PIR + Microwave (MW)
- Pet immunity up to 30 kg
- Detection range up to 12 metres
- Wide viewing angle 85.9°
- Grade 2 security certificate (EN50131)
- Creep zone protection
- Digital temperature compensation
- Tamper protection against housing opening
- Automatic sensitivity adjustment
- Discreet white housing
Description
The Hikvision DS-PDD12P-EG2 is an advanced, wired dual-technology detector that redefines indoor security standards. The device combines two independent detection technologies: passive infrared (PIR) and microwave (MW). This solution drastically reduces the risk of false alarms, which in traditional detectors can be triggered by sudden temperature changes, draughts, or air mass movement. Thanks to an intelligent signal processing algorithm, the detector only activates an alarm when both sensors detect an intruder simultaneously.
One of the key advantages of this model is its full immunity to pets weighing up to 30 kg. This allows dogs or cats to move freely within the protected zone without the risk of triggering the alarm system unnecessarily. It is an ideal solution for pet owners who do not want to compromise on a high level of security.
The device features a detection range of up to 12 metres with a wide viewing angle of nearly 86 degrees. Additionally, the detector has built-in creep zone protection, which prevents an intruder from slipping directly under the device. Digital temperature compensation automatically adjusts the sensor sensitivity to ambient conditions, ensuring consistent detection effectiveness regardless of the season.
Compliance with the EN50131-2-4 Grade 2 standard confirms that the product is suitable for professional alarm installations in homes, offices, and retail outlets. The solid white housing blends discreetly into the interior decor, and the built-in tamper protection guards against unauthorised opening of the device. By choosing the Hikvision DS-PDD12P-EG2, you are investing in peace of mind and reliability confirmed by a global leader in security systems.
Specification
Application
Indoor - designed for the protection of residential and commercial premises
Sensor type
Passive infrared (PIR) and microwave (MW) - dual technology
Detection range
12 metres - optimal distance for most interiors
Detection angle
85.9° - wide field of view eliminating blind spots
Pet immunity
≤ 30 kg - ignores movement of small pets
Security grade
EN50131-2-4:2020 Grade 2 - professional security standard
Power supply
9 V ... 16 V DC / 17 mA - low power consumption
Microwave frequency band
24.15 GHz ... 24.25 GHz - stable microwave path operation
Recommended mounting height
1.8 m ... 2.4 m - installation flexibility
Alarm and tamper outputs
Alarm: NC; Tamper: NC (housing opening detection)
LED indication
Yes - visual information on operating status and detection
Environmental class
II according to EN 50130-5 - operation in standard room conditions
Operating temperature
-10 °C ... 55 °C - stability in a wide temperature range
Software and Algorithms
The device uses an advanced digital detection algorithm called IFT (Independent Floating Threshold). The firmware analyses signals from both paths (PIR and MW) in real-time, eliminating electrical interference and background noise. The system intelligently differentiates signals generated by humans from those caused by environmental factors, such as swaying curtains or warm air movement. The temperature compensation algorithm dynamically adjusts detection thresholds, allowing the device to maintain identical sensitivity even when the ambient temperature approaches human body temperature. As a result, the software ensures maximum precision and minimises the risk of false alarms to an absolute minimum.
Selected technical features
Creep zone protection; Digital detection algorithm with temperature compensation; Detectable movement speed: 0.3 ... 2 m/s; SAP Code: 314300115
Contents
1x Dual detector DS-PDD12P-EG2
1x Set of mounting screws
1x User manual
Dimensions, Weight
Product dimensions: 46 x 66 x 104 mm (D x W x H)
Packaging dimensions: 60 x 70 x 120 mm (D x W x H)
Product weight: 98 g
Weight with packaging: 136 g
