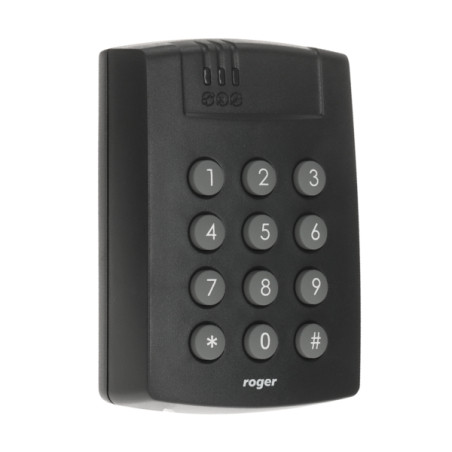

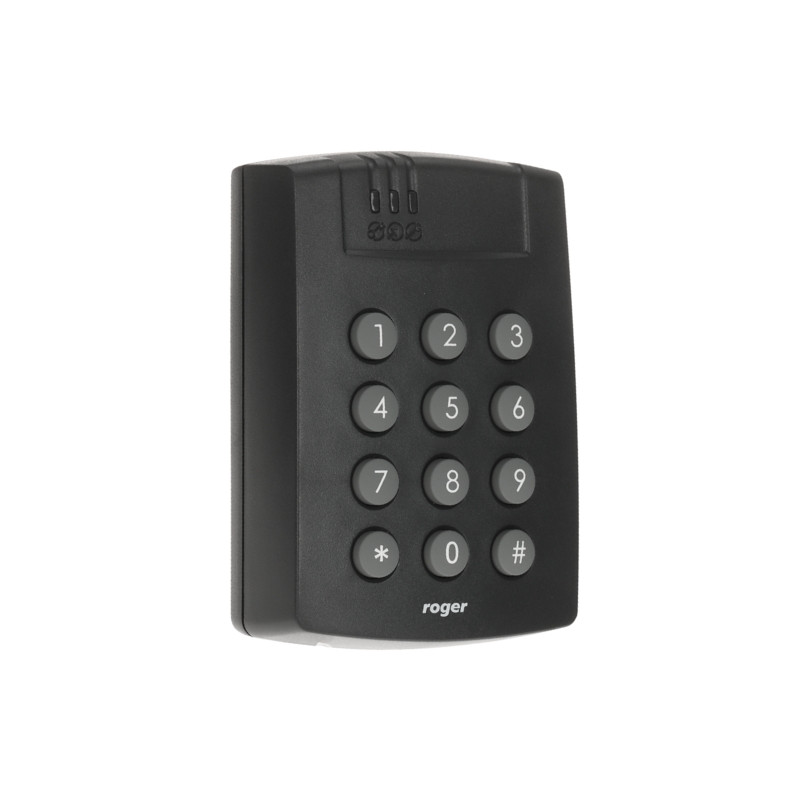

Keypad combination lock for access control ROGER SL2000F
zł301.23
Tax included
The SL2000F combination lock is an advanced device designed for access control systems, providing a high level of security and user convenience. The product enables user identification via PIN codes, offering the ability to program up to 55 unique access codes. This makes it ideal for both small offices and home installations. The device is equipped with one relay output with a load capacity of 1.5 A / 30 V and two transistor outputs, allowing for direct integration with electric strikes and electromagnetic locks. Additionally, the lock features a dedicated ALARM output, which enables signaling of tampering attempts or unauthorized access. The device design supports integration with an external door contact sensor and an exit button, which significantly increases system functionality. The user has the ability to program code lengths, and built-in security features, such as lockout after three incorrect code entries and tamper protection, effectively protect against unauthorized access. The operating status of the device is clearly indicated by three LED diodes and a built-in buzzer. The device is powered by 10-15V DC, with a very low average current consumption of only 25 mA in standby mode.
Keypad combination lock for access control
Model: ROGER SL2000F
EAN: 6931240059470 SKU: 931059476
- Support for up to 55 unique PIN codes
- Built-in numeric keypad
- 1.5A/24V relay output
- Tamper protection
- LED and audible signaling (buzzer)
- Compatibility with electric strikes and electromagnetic locks
- Programmable PIN code length
- Lockout function after incorrect code entry
Description
The SL2000F combination lock is an advanced device designed for access control systems, providing a high level of security and user convenience. The product enables user identification via PIN codes, offering the ability to program up to 55 unique access codes. This makes it ideal for both small offices and home installations. The device is equipped with one relay output with a load capacity of 1.5 A / 30 V and two transistor outputs, allowing for direct integration with electric strikes and electromagnetic locks. Additionally, the lock features a dedicated ALARM output, which enables signaling of tampering attempts or unauthorized access. The device design supports integration with an external door contact sensor and an exit button, which significantly increases system functionality. The user has the ability to program code lengths, and built-in security features, such as lockout after three incorrect code entries and tamper protection, effectively protect against unauthorized access. The operating status of the device is clearly indicated by three LED diodes and a built-in buzzer. The device is powered by 10-15V DC, with a very low average current consumption of only 25 mA in standby mode.
Specification
Card support
None
Card reading range
None
Standalone operation
Yes
Built-in keypad
Yes
Communication
None
Doorbell button
Yes
Tamper output
Yes
Power supply
10 ... 15V DC
Maximum current consumption
25 mA (standby mode), 80 mA (operation)
Relay contact load capacity
1.5 A / 24 V
Selected features
Number of relay outputs: 1; 55 indexed users; Identification: PIN; Administrator code for programming; Master code for changing arming state; LED + Buzzer signaling; Compatibility with door sensor and exit button; Support for electric strikes and electromagnetic locks; Tamper protection (detection of detachment and housing opening); Temporary lock lockout after 3 incorrect codes; NO/NC output; User indexing; Programmable code length.
Operating temperature
5 °C ... 40 °C
Permissible relative ambient humidity
10 ... 95 % (non-condensing)
Ingress protection rating
None
Housing
Plastic
Colour
Black
Warranty
2 years
Contents
1x SL2000F combination lock
Dimensions, Weight
Product dimensions: 35 x 115 x 80 mm (D x W x H)
Packaging dimensions: 50 x 235 x 105 mm (D x W x H)
Product weight: 145 g
Weight with packaging: 240 g
