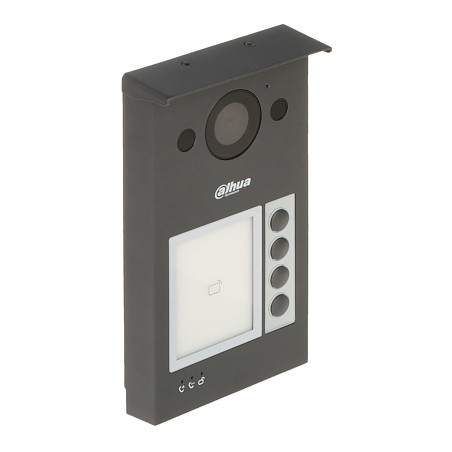

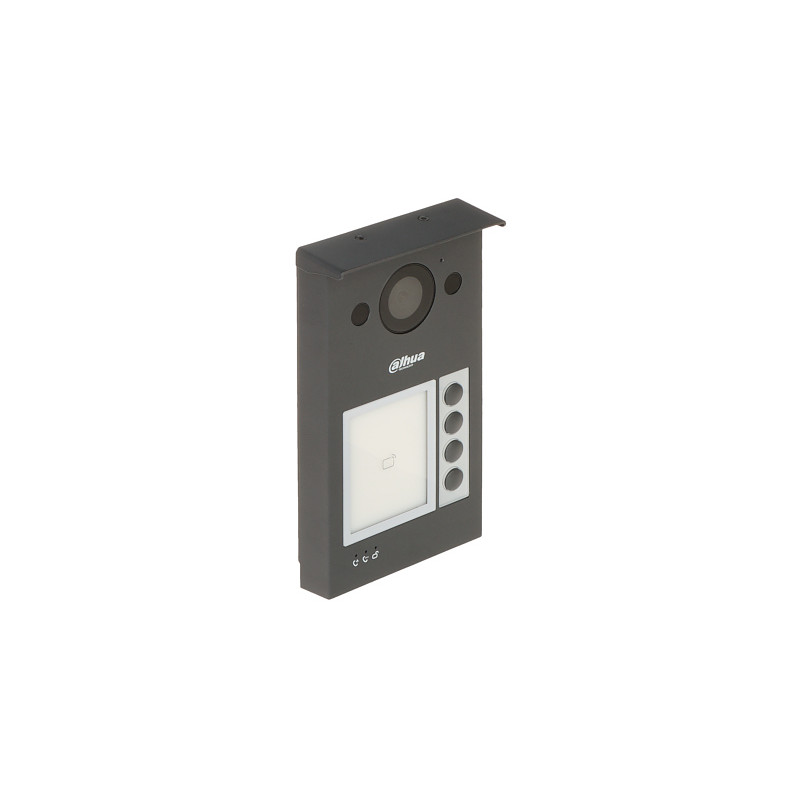

Surface mounted hybrid 2-Wire IP video intercom with RFID card reader DAHUA VTO3312Q-P
zł2,207.85
Tax included
The VTO3312Q-P video intercom is an advanced solution from Dahua, designed for surface mounting in modern access control systems. The device features a hybrid design, meaning it can operate in both traditional 2-Wire installations and modern IP standards. This makes it extremely flexible and easy to implement in various types of buildings, from single-family homes to commercial facilities. Equipped with a high-quality 2 Mpx CMOS sensor, the video intercom provides a clear image with a wide 125-degree viewing angle, allowing for effective identification of visitors. The built-in 13.56 MHz (S50) RFID proximity card reader with a memory for up to 3000 cards allows for convenient and secure door opening without the need for keys. The device features a vandal-proof front panel made of aluminum, ensuring high durability and resistance to mechanical damage (IK08 class) and weather conditions (IP65 ingress protection). The use of advanced technologies such as WDR 120 dB, 3D-DNR, and an ICR mechanical infrared filter ensures excellent image quality in all lighting conditions, both day and night. An additional advantage is the support for Micro SD cards up to 256GB, which allows for local video recording. The device supports two-way communication and has a built-in microphone and speaker with noise reduction and echo cancellation, which significantly improves conversation comfort. Thanks to support for the DMSS mobile application, the user has the ability to remotely view and open the door using a smartphone or tablet, which significantly increases the level of security and convenience of use.
Surface mounted hybrid 2-Wire IP video intercom with RFID card reader
Model: DAHUA VTO3312Q-P
EAN: 6931240037454 SKU: 931037450
- Hybrid operation: 2-Wire or IP
- Built-in 13.56 MHz RFID card reader (3000 card memory)
- High image quality: 2 Mpx CMOS, WDR 120 dB
- Wide viewing angle: 125 degrees
- Vandal-proof aluminum housing (IK08, IP65)
- Micro SD card support up to 256GB
- Remote access via DMSS app (Android/iOS)
- Built-in microphone and speaker with echo cancellation
Description
The VTO3312Q-P video intercom is an advanced solution from Dahua, designed for surface mounting in modern access control systems. The device features a hybrid design, meaning it can operate in both traditional 2-Wire installations and modern IP standards. This makes it extremely flexible and easy to implement in various types of buildings, from single-family homes to commercial facilities. Equipped with a high-quality 2 Mpx CMOS sensor, the video intercom provides a clear image with a wide 125-degree viewing angle, allowing for effective identification of visitors. The built-in 13.56 MHz (S50) RFID proximity card reader with a memory for up to 3000 cards allows for convenient and secure door opening without the need for keys. The device features a vandal-proof front panel made of aluminum, ensuring high durability and resistance to mechanical damage (IK08 class) and weather conditions (IP65 ingress protection). The use of advanced technologies such as WDR 120 dB, 3D-DNR, and an ICR mechanical infrared filter ensures excellent image quality in all lighting conditions, both day and night. An additional advantage is the support for Micro SD cards up to 256GB, which allows for local video recording. The device supports two-way communication and has a built-in microphone and speaker with noise reduction and echo cancellation, which significantly improves conversation comfort. Thanks to support for the DMSS mobile application, the user has the ability to remotely view and open the door using a smartphone or tablet, which significantly increases the level of security and convenience of use.
Specification
Compatibility
DAHUA
Sensor
1/2.8", 2 Mpx CMOS
Viewing angle
125 °
Built-in proximity reader
Access control cards - 13.56 MHz S50, 3000 RFID card memory
Image compression method
H.265 / H.264
IR illuminator
Yes
Selected features
WDR - 120 dB (wide dynamic range), 2D-DNR/3D-DNR (digital noise reduction), ICR (mechanical infrared filter), two-way communication, noise reduction and echo cancellation, tamper detection, vandal-proof panel, 1/1 alarm inputs/outputs, output for door release button. Software: The device works with the DMSS application (Android/iOS), which enables full operation of the video intercom from a smartphone. The application allows for live image viewing, conducting conversations with people at the door, remote door release, and reviewing recordings saved on the Micro SD card. The system supports cloud access (P2P), which eliminates the need for complex network configuration.
Mobile phone access
Port: 37777 or cloud access (P2P); Android/iOS: Free DMSS application
Power supply
48 V / 1 A, PoE (802.3af), 2-Wire IP interface
Power consumption
≤ 4 W (standby mode), ≤ 8 W (operation)
Housing
Aluminum, graphite color
Ingress protection class
IP65
Mechanical resistance class
IK08
Operating temperature
-40 °C ... 60 °C
Contents
1x VTO3312Q-P video intercom
1x Rain cover
Dimensions, Weight
Product dimensions: 30 x 188 x 107 mm (D x W x H)
Package dimensions: 83 x 247 x 167 mm (D x W x H)
Product weight: 600 g
Weight with packaging: 832 g
