Logarithmic MIMO 5G LTE GSM 3G 11dBi antenna with 2x5m SMA cables TRANS-DATA TD-5G-KYZ-10/10+5M+SMA
zł513.66
Tax included
TRANS-DATA TD-5G-KYZ-10/10 is a professional set of two logarithmic directional antennas operating in a MIMO configuration, designed for demanding users seeking a stable internet connection. The entire system is adapted for outdoor installation, which allows for the effective elimination of terrain obstacles and improvement of signal quality in areas with poor coverage. The set is fully compatible with modern data transmission standards, including 5G, LTE, GSM, DCS, and 3G. Thanks to a high energy gain reaching 11 dBi, the antenna significantly improves transmission parameters, which translates into higher download and upload speeds and greater connection stability. The antenna design ensures a wide operating band, making it a universal solution for various mobile network operators. The set includes two cables, each 5 meters long, terminated with SMA plugs, which allows for easy connection to most modems and routers equipped with two antenna connectors. The advantage of this solution is not only high performance but also extremely simple and quick installation, which does not require specialized technical knowledge. The antenna is resistant to weather conditions, which guarantees long-term and trouble-free operation in various environments. It is an ideal choice for people using mobile internet in homes, offices, or industrial facilities where the mobile network signal is insufficient for comfortable work.

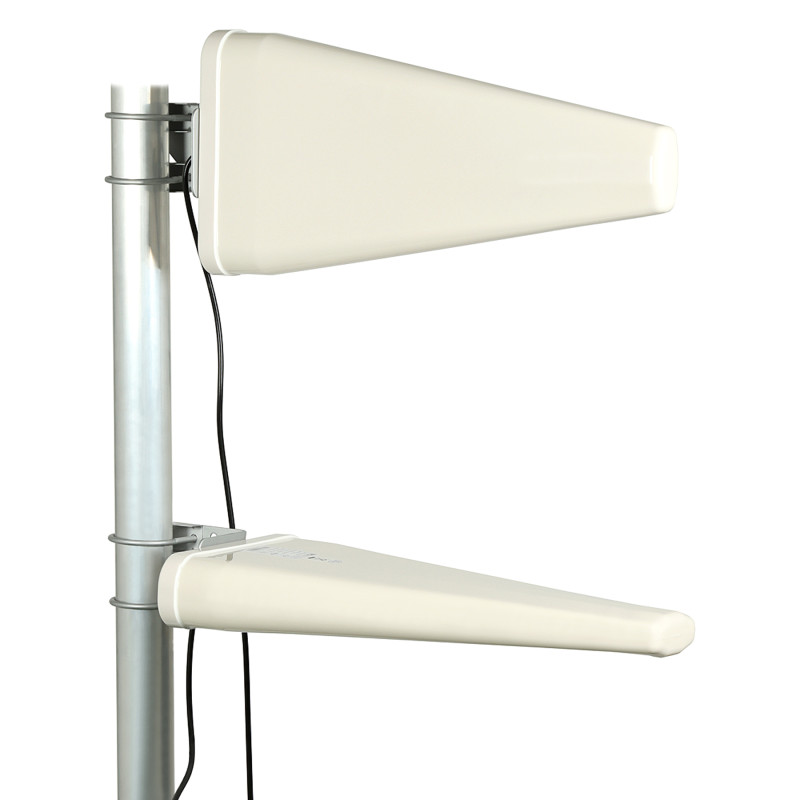

Logarithmic MIMO 5G LTE GSM 3G 11dBi antenna with 2x5m SMA cables
Model: TRANS-DATA TD-5G-KYZ-10/10+5M+SMA
EAN: 6931240025246 SKU: 931025247
- Set of two directional antennas in MIMO configuration
- Support for 5G, LTE, GSM, DCS, 3G standards
- Energy gain up to 11 dBi
- Designed for outdoor installation
- Includes two 5 m cables
- 2 x SMA connectors
- Simple and quick installation
- Maximum mast diameter 50 mm
Description
TRANS-DATA TD-5G-KYZ-10/10 is a professional set of two logarithmic directional antennas operating in a MIMO configuration, designed for demanding users seeking a stable internet connection. The entire system is adapted for outdoor installation, which allows for the effective elimination of terrain obstacles and improvement of signal quality in areas with poor coverage. The set is fully compatible with modern data transmission standards, including 5G, LTE, GSM, DCS, and 3G. Thanks to a high energy gain reaching 11 dBi, the antenna significantly improves transmission parameters, which translates into higher download and upload speeds and greater connection stability. The antenna design ensures a wide operating band, making it a universal solution for various mobile network operators. The set includes two cables, each 5 meters long, terminated with SMA plugs, which allows for easy connection to most modems and routers equipped with two antenna connectors. The advantage of this solution is not only high performance but also extremely simple and quick installation, which does not require specialized technical knowledge. The antenna is resistant to weather conditions, which guarantees long-term and trouble-free operation in various environments. It is an ideal choice for people using mobile internet in homes, offices, or industrial facilities where the mobile network signal is insufficient for comfortable work.
Specification
Frequency range
698 ... 960 MHz, 1710 ... 2700 MHz, 3300 ... 3800 MHz (GSM / DCS / UMTS / WLAN / LTE / 5G)
Connectors
2 x SMA plug
Energy gain
9.5 dBi @ 698 ... 960 MHz, 10.5 dBi @ 1710 ... 2700 MHz, 11 dBi @ 3300 ... 3800 MHz
Impedance
50 Ω
Horizontal beamwidth (H)
70 / 55 °
Vertical beamwidth (V)
55 / 70 °
Polarization
Vertical + Horizontal
VSWR
≤ 1.9
Cable length
2 x 5 m
Maximum mast diameter
50 mm
Installation
Very simple and quick outdoor installation
Warranty
2 years
Manufacturer
TRANS-DATA
Contents
2x Logarithmic antenna
2x 5m cable
Mounting elements
Dimensions, Weight
Product dimensions: 65 x 442 x 210 mm (D x W x H)
Packaging dimensions: 160 x 580 x 220 mm (D x W x H)
Product weight: 2000 g
Weight with packaging: 2643 g
