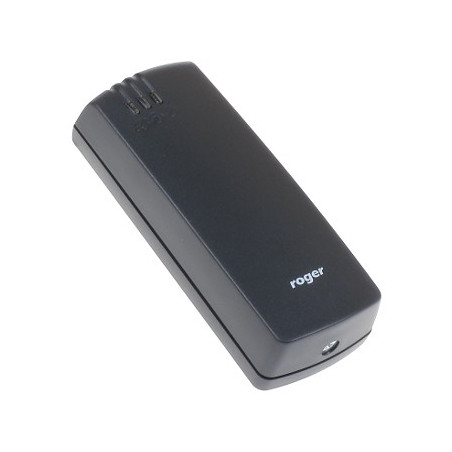

125kHz Unique RFID Proximity Reader for access control systems ROGER PRT62EM
zł435.05
Tax included
The PRT62EM proximity reader is a professional device designed for access control systems, characterized by high reliability and a compact design. The reader supports the 125 kHz Unique card and key fob standard, making it an ideal solution for offices, warehouses, and public utility facilities. The device is designed to operate in harsh conditions, offering a wide operating temperature range from -25°C to 60°C and high moisture resistance. The main advantage of the PRT62EM model is its communication versatility, supporting Wiegand, Magstripe, RS-232, and RACS protocols, which allows for easy integration with most access control systems available on the market. The reader has a built-in 1.5A/30V relay, which enables direct control of an electric strike or other actuator. In standalone mode, the reader supports up to 120 users and stores a history of 1024 events, providing basic security without the need for an external controller. A robust housing and a built-in tamper sensor guarantee protection against unauthorized opening. The device is easy to install and configure, and its aesthetic appearance makes it blend perfectly with any interior.
125kHz Unique RFID Proximity Reader for access control systems
Model: ROGER PRT62EM
EAN: 6931240090336 SKU: 931090338
- Support for 125 kHz Unique standard
- Card reading range up to 12 cm
- Support for multiple communication protocols (Wiegand, Magstripe, RS-232, RACS)
- Standalone mode: 120 users and 1024 events
- Built-in 1.5A/30V relay output
- Compatibility with door contact sensor and exit button
- Possibility of two-way passage control
- Built-in tamper sensor
- Wide operating temperature range (-25°C to 60°C)
- CE certified
Description
The PRT62EM proximity reader is a professional device designed for access control systems, characterized by high reliability and a compact design. The reader supports the 125 kHz Unique card and key fob standard, making it an ideal solution for offices, warehouses, and public utility facilities. The device is designed to operate in harsh conditions, offering a wide operating temperature range from -25°C to 60°C and high moisture resistance. The main advantage of the PRT62EM model is its communication versatility, supporting Wiegand, Magstripe, RS-232, and RACS protocols, which allows for easy integration with most access control systems available on the market. The reader has a built-in 1.5A/30V relay, which enables direct control of an electric strike or other actuator. In standalone mode, the reader supports up to 120 users and stores a history of 1024 events, providing basic security without the need for an external controller. A robust housing and a built-in tamper sensor guarantee protection against unauthorized opening. The device is easy to install and configure, and its aesthetic appearance makes it blend perfectly with any interior.
Specification
Card support
Unique EM 125kHz - RFID standard enabling contactless data exchange via radio waves.
Card reading range
Maximum 12 cm.
Built-in keypad
None.
Communication
Wiegand 26-66bit, Magstripe (Clock & Data), RS-232, RACS (Roger).
Standalone mode
Support for up to 120 indexed users, 1024 event history, compatibility with door contact sensor and exit button, possibility of two-way passage control using two readers, compatibility with XM-2 I/O expander.
Power supply
10 - 15V DC (direct current).
Average power consumption
45 mA.
Relay output
Programmable relay output with 1.5A/30V load capacity.
Additional features
Various PIN code transmission variants, separate inputs for LED and speaker, possibility to work as an EMC-4 card programmer (requires RARC software), CE mark.
Operating temperature
-25°C to 60°C.
Permissible humidity
10 - 95% (non-condensing).
Software
The device works with the free RARC (Roger Access Reader Configuration) software. This software enables advanced configuration of reader parameters, such as data transmission formats, relay output settings, and user database management in standalone mode. It also allows the reader to be used as an EMC-4 proximity card programmer, which significantly facilitates the process of granting permissions in the access control system. The program interface is intuitive and allows for quick device diagnostics and updating its settings via the RS-232 port.
Manufacturer / Brand
ROGER
Warranty
2 years
Contents
1x PRT62EM Proximity Reader
1x Connection cable (45 cm)
Dimensions, Weight
Product dimensions: 25 x 100 x 40 mm (D x W x H)
Packaging dimensions: 50 x 230 x 105 mm (D x W x H)
Product weight: 120 g
Weight with packaging: 260 g
