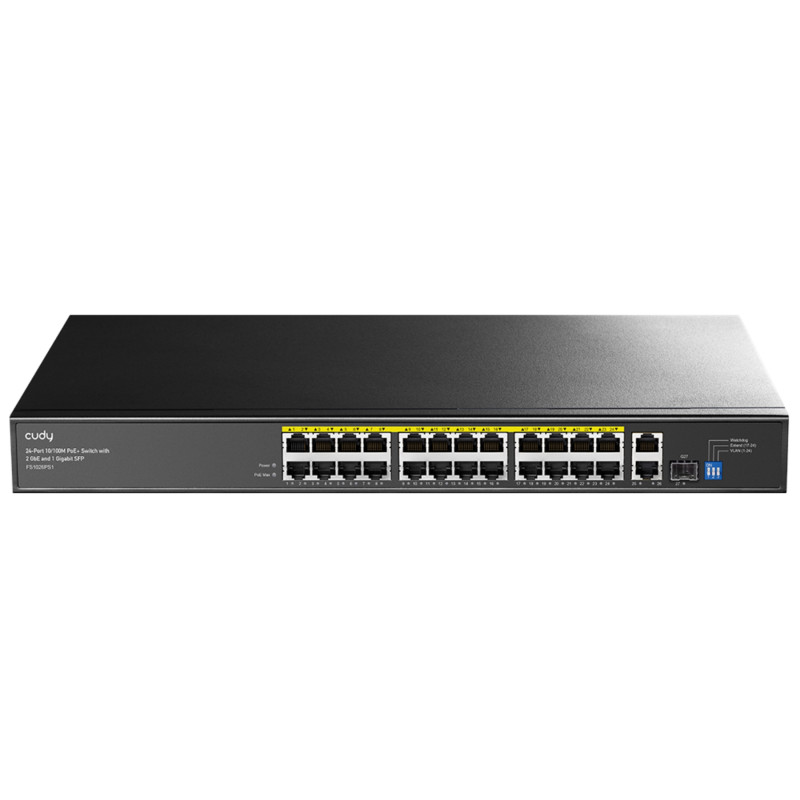

24-Port 10/100 Mbps PoE Switch with SFP and RJ45 Uplink CUDY FS1026PS1
zł559.00
Tax included
The 24-port PoE switch FS1026PS1 is an advanced network device designed for professional IP CCTV monitoring installations. Thanks to its high reliability and support for PoE standards (802.3af/at), this switch enables simultaneous data transmission and power supply for connected IP cameras, which significantly simplifies cable infrastructure and reduces installation costs. The device is equipped with 24 PoE 10/100 Mbps ports, two RJ45 Uplink ports, and one SFP port, providing great flexibility in backbone network configuration. The robust, metal Desktop/RACK housing guarantees durability and effective heat dissipation, while the built-in fan ensures optimal operating conditions even under full load. The switch offers a range of advanced features, such as the EXTEND mode, which allows for data and power transmission over a distance of up to 250 meters, which is crucial in extensive monitoring systems. Additionally, the Watchdog function automatically monitors the status of connected devices and restarts them if no response is detected, minimizing the need for service intervention. Surge protection and electrostatic discharge protection ensure a long service life for the device in difficult operating conditions. It is an ideal solution for installers looking for stable and efficient equipment for building professional security systems.
24-Port 10/100 Mbps PoE Switch with SFP and RJ45 Uplink
Model: CUDY FS1026PS1
EAN: 6931240010143 SKU: 931010144
- 24 PoE ports 10/100 Mbps (802.3af/at)
- 2 Uplink RJ45 ports (10/100/1000 Mbps)
- 1 Uplink SFP port (10/100/1000 Mbps)
- EXTEND mode: transmission up to 250 m for ports 17-24
- Watchdog function for automatic device restart
- Maximum output power 30W per PoE port
- Total PoE budget: 300W
- Robust metal RACK/Desktop housing
- Built-in surge and ESD protection
- VLAN support and IEEE802.3x Flow Control
Description
The 24-port PoE switch FS1026PS1 is an advanced network device designed for professional IP CCTV monitoring installations. Thanks to its high reliability and support for PoE standards (802.3af/at), this switch enables simultaneous data transmission and power supply for connected IP cameras, which significantly simplifies cable infrastructure and reduces installation costs. The device is equipped with 24 PoE 10/100 Mbps ports, two RJ45 Uplink ports, and one SFP port, providing great flexibility in backbone network configuration. The robust, metal Desktop/RACK housing guarantees durability and effective heat dissipation, while the built-in fan ensures optimal operating conditions even under full load. The switch offers a range of advanced features, such as the EXTEND mode, which allows for data and power transmission over a distance of up to 250 meters, which is crucial in extensive monitoring systems. Additionally, the Watchdog function automatically monitors the status of connected devices and restarts them if no response is detected, minimizing the need for service intervention. Surge protection and electrostatic discharge protection ensure a long service life for the device in difficult operating conditions. It is an ideal solution for installers looking for stable and efficient equipment for building professional security systems.
Specification
LAN Ports
24 x RJ45 (PoE 802.3af/at), 2 x RJ45 Uplink, 1 x SFP Uplink
Management
None (Unmanaged device)
Number of fans
1
LED indicators
Power, Link/Act, PoE Max
Transmission speed
10/100 Mbps (PoE ports), 10/100/1000 Mbps (Uplink/SFP)
Maximum output power
30W per PoE port
Maximum total power
300W
Switching capacity
10.8 Gb/s
Packet forwarding rate
8 Mpps
MAC address table
2k
Selected features
Watchdog function, EXTEND mode (up to 250m), VLAN mode, ESD protection, surge protection, grounding, IEEE802.3x Flow Control
Certificates
CE
Housing
Desktop / RACK, Metal
Power supply
100 ... 240V AC, 50/60 Hz
Contents
1x PoE Switch FS1026PS1
1x User manual
Dimensions, Weight
Product dimensions: 180 x 440 x 44 mm (D x W x H)
Package dimensions: 267 x 487 x 84 mm (D x W x H)
Product weight: 2208 g
Weight with package: 2886 g
