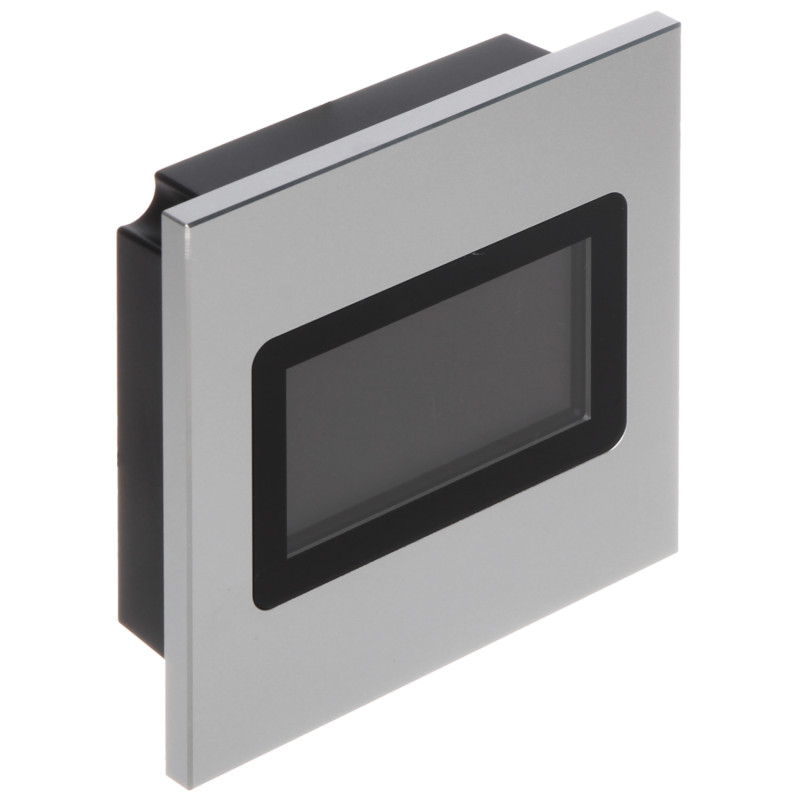

3 inch STN LCD display module for IP video intercom, metal housing, vandal-proof IK07 IP65 Silver DAHUA VTO4202F-MS
zł348.09
Tax included
The VTO4202F-MS display module is a professional solution dedicated to expanding Dahua modular IP video intercom systems. This device is a key element for modern installations in multi-family buildings, office buildings, and gated communities where clear communication with the user is required. Equipped with a 3-inch screen using STN technology, the module allows for clear presentation of tenant lists, apartment numbers, and system messages, which significantly facilitates navigation for visitors.
The device construction has been designed to operate in the harshest outdoor conditions. The combination of high-quality metal alloy with durable plastic ensures not only an aesthetic silver appearance but, above all, exceptional durability. The module features an IP65 ingress protection rating (when using additional sealing), which protects sensitive electronics from rain, snow, and moisture. Additionally, the IK07 vandal-proof certificate guarantees protection against impacts and destruction attempts, which is extremely important in public places.
The advantages of this solution are primarily full integration with the VTO4202F-P main module, from which the device draws 5V DC power, eliminating the need for additional power cabling. Energy efficiency at a level below 1W and a wide operating temperature range from -20°C to +60°C make the system reliable and inexpensive to operate all year round. The modular nature of the system allows for any configuration and adjustment of the outdoor panel to the individual needs of the investment, and the elegant design enhances the prestige of every building entrance. By choosing this module, you are investing in the highest quality of workmanship and reliability confirmed by a global leader in the field of security systems.
3 inch STN LCD display module for IP video intercom, metal housing, vandal-proof IK07 IP65 Silver
Model: DAHUA VTO4202F-MS
EAN: 6931240087367 SKU: 931087369
- Compatibility with Dahua VTO4202F modular video intercom system
- Clear 3-inch STN display
- Vandal-proof housing with IK07 impact resistance class
- High IP65 ingress protection rating (when sealed)
- 5V DC cascade power supply directly from the main module
- Very low power consumption below 1W
- Wide operating temperature range from -20°C to 60°C
- Modern silver design matching contemporary architecture
Description
The VTO4202F-MS display module is a professional solution dedicated to expanding Dahua modular IP video intercom systems. This device is a key element for modern installations in multi-family buildings, office buildings, and gated communities where clear communication with the user is required. Equipped with a 3-inch screen using STN technology, the module allows for clear presentation of tenant lists, apartment numbers, and system messages, which significantly facilitates navigation for visitors.
The device construction has been designed to operate in the harshest outdoor conditions. The combination of high-quality metal alloy with durable plastic ensures not only an aesthetic silver appearance but, above all, exceptional durability. The module features an IP65 ingress protection rating (when using additional sealing), which protects sensitive electronics from rain, snow, and moisture. Additionally, the IK07 vandal-proof certificate guarantees protection against impacts and destruction attempts, which is extremely important in public places.
The advantages of this solution are primarily full integration with the VTO4202F-P main module, from which the device draws 5V DC power, eliminating the need for additional power cabling. Energy efficiency at a level below 1W and a wide operating temperature range from -20°C to +60°C make the system reliable and inexpensive to operate all year round. The modular nature of the system allows for any configuration and adjustment of the outdoor panel to the individual needs of the investment, and the elegant design enhances the prestige of every building entrance. By choosing this module, you are investing in the highest quality of workmanship and reliability confirmed by a global leader in the field of security systems.
Specification
Compatibility
Full cooperation with the VTO4202F-P main camera module and other expansion modules from the VTO4202F series.
Device type
LCD display module for IP video intercom systems.
Screen and display
3-inch STN matrix ensuring high readability of text, tenant lists, and system status messages.
Power parameters
5V DC - voltage supplied from the main module or the previous module in a cascade connection.
Power consumption
Maximum power consumption is ≤ 1W, making the device highly energy-efficient.
Housing construction
Made of a combination of metal (aluminum) and high-quality plastic.
Finish and color scheme
Silver color, aesthetic finish resistant to scratches.
Ingress protection (IP)
IP65 - protection against dust and water jets (additional silicone sealing required at the mounting surface contact point).
Mechanical resistance (IK)
IK07 - protection against external mechanical impacts with energy up to 2J.
Environmental conditions
Operating temperature from -20 °C to 60 °C; ambient humidity from 10% to 90%.
Communication interface
Cascade connector for data and power transmission between VTO system modules.
Certificates and standards
Compliance with CE standards and Dahua Technology safety standards.
Software and operation
The device integrates with the advanced Dahua IP ecosystem. The module firmware manages the display of the graphical user interface on the STN matrix. It enables the presentation of an intuitive menu, a tenant list with search capability, and system status messages (e.g., 'call', 'door open'). Configuration is performed remotely via the VTO main module, which allows the administrator to quickly upload the resident database over the LAN using dedicated Smart PSS software or the Web Service interface. The system ensures high responsiveness and font readability even in difficult lighting conditions.
Warranty and support
3 years (36 months) full manufacturer warranty.
Contents
1x VTO4202F-MS display module
1x Connection ribbon (cascade cable)
1x Mounting screw set
1x Rubber gasket
Dimensions, Weight
Product dimensions: 29 x 100 x 100 mm (D x W x H)
Package dimensions: 165 x 190 x 70 mm (D x W x H)
Product weight: 220 g
Weight with packaging: 342 g
