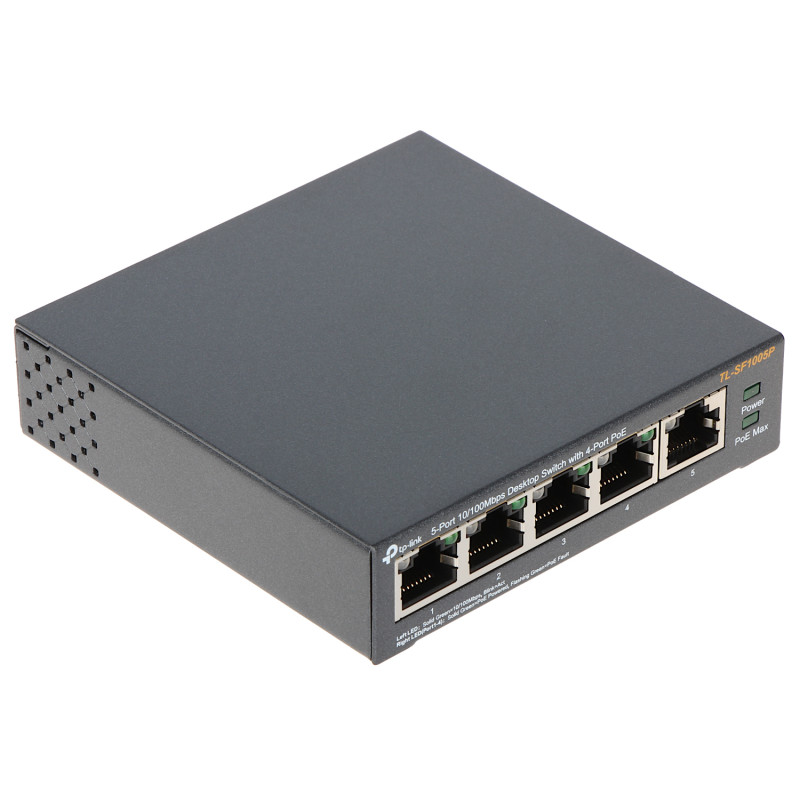

5-Port 10/100 Mbps PoE Switch 4x PoE 58W Desktop LAN RJ45 Network Splitter TP-LINK TL-SF1005P
zł191.70
Tax included
The PoE switch is a reliable desktop network device, ideal for expanding home and office network structures. Equipped with 5 RJ45 ports at 10/100 Mbps speed, 4 of which support Power over Ethernet (PoE) technology, it allows for simultaneous data transmission and power supply to end devices such as IP cameras, access points, or VoIP phones using a single network cable.The main advantage of this model is the port priority function, which protects the system against overload – if the total power consumption exceeds 58W, the device cuts power to the lowest priority port, ensuring the stability of key network components. Installation is extremely simple thanks to Plug and Play technology, which eliminates the need for complex configuration. The solid metal housing ensures durability and effective heat dissipation, which translates into the device's longevity.The switch supports IEEE 802.3af standards, which guarantees compatibility with a wide range of PoE-powered devices. Thanks to its compact dimensions, the device takes up minimal space on a desk or shelf. By choosing this model, you are investing in high-quality transmission and the security of your network infrastructure. This device is an excellent choice for CCTV monitoring system installers looking for a stable and efficient solution for powering IP cameras.An additional advantage is the lack of a fan, which ensures silent operation, ideal for office and home environments where silence is a priority. TP-LINK Green technology allows for energy savings by adjusting power consumption based on connection status and cable length, making it an ecological and economical solution.
5-Port 10/100 Mbps PoE Switch 4x PoE 58W Desktop LAN RJ45 Network Splitter
Model: TP-LINK TL-SF1005P
EAN: 6931240040782 SKU: 931040785
- 5 x 10/100 Mbps RJ45 ports
- 4 x PoE (Power over Ethernet) ports compliant with 802.3af standard
- Total PoE power budget up to 58W (maximum 15.4W per port)
- Port priority function to protect against overload
- Plug and Play technology - no configuration required
- Durable metal desktop housing
- Supports Auto-MDI/MDIX and Auto-negotiation
- Silent operation due to fanless design
- Compliant with FCC, CE, and RoHS certifications
Description
The PoE switch is a reliable desktop network device, ideal for expanding home and office network structures. Equipped with 5 RJ45 ports at 10/100 Mbps speed, 4 of which support Power over Ethernet (PoE) technology, it allows for simultaneous data transmission and power supply to end devices such as IP cameras, access points, or VoIP phones using a single network cable.
The main advantage of this model is the port priority function, which protects the system against overload – if the total power consumption exceeds 58W, the device cuts power to the lowest priority port, ensuring the stability of key network components. Installation is extremely simple thanks to Plug and Play technology, which eliminates the need for complex configuration. The solid metal housing ensures durability and effective heat dissipation, which translates into the device's longevity.The switch supports IEEE 802.3af standards, which guarantees compatibility with a wide range of PoE-powered devices. Thanks to its compact dimensions, the device takes up minimal space on a desk or shelf. By choosing this model, you are investing in high-quality transmission and the security of your network infrastructure. This device is an excellent choice for CCTV monitoring system installers looking for a stable and efficient solution for powering IP cameras.An additional advantage is the lack of a fan, which ensures silent operation, ideal for office and home environments where silence is a priority. TP-LINK Green technology allows for energy savings by adjusting power consumption based on connection status and cable length, making it an ecological and economical solution.Specification
Device type
Unmanaged desktop PoE switch
LAN ports
5x RJ45 10/100 Mbps (including 4 PoE 802.3af ports)
Transmission speed
10 / 100 Mbps : 1 LAN Port + 4 LAN & PoE Ports
PoE output power
Maximum 15.4 W per single PoE port
Total PoE power
Maximum power budget for all ports is 58 W
Standards and protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af
LED indicators
Power, Link/Act, PoE Status, PoE Max (power budget overload indicator)
MAC address table
2k - automatic address learning and aging
Operating modes and range
Standard range up to 100m using Cat 5e or 6 UTP cable
Advanced features
Port priority (port-1 > port-2 > port-3 > port-4), Auto-Learning and Auto-Aging of MAC addresses, IEEE802.3x Flow Control for full-duplex mode and Backpressure for half-duplex mode
Power supply
External power adapter 48 V DC / 1.25 A (included)
Certifications
FCC, CE, RoHS - safety and environmental protection guarantee
Housing and mounting
Metal desktop housing, fanless
Software and logic
The device operates based on advanced internal firmware algorithms that automatically manage network traffic and PoE power distribution. The system supports the Auto-Negotiation function, which intelligently detects the connection speed of the connected device (10 or 100 Mbps) and adjusts operating parameters for optimal performance. A key element of the software is the Priority Function, which monitors power consumption in real-time. If an overload is detected (above 58W), the system automatically manages power, protecting higher priority devices (ports 1-3) at the expense of lower priority ports. Additionally, the implemented IEEE 802.3x Flow Control protocol ensures reliable data transmission, eliminating the risk of data loss during heavy network traffic.
Contents
1x PoE Switch TL-SF1005P
1x Power adapter 48V/1.25A
1x Installation guide
Dimensions, Weight
Product dimensions: 98 x 100 x 25 mm (D x W x H)
Package dimensions: 125 x 190 x 100 mm (D x W x H)
Product weight: 250 g
Weight with packaging: 850 g
