- New

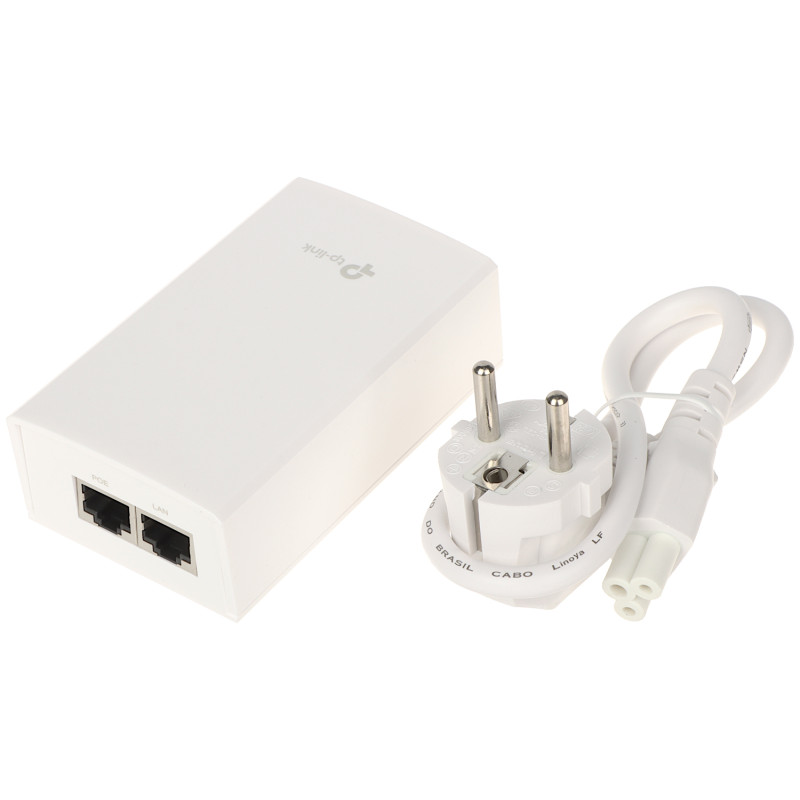

Passive PoE Gigabit Ethernet 48V 24W Power Adapter RJ45 Network Injector LAN Stable TP-LINK TL-POE4824G
zł160.28
Tax included
The TL-POE4824G power adapter is a professional device designed to power network equipment using Passive PoE technology. It is an ideal solution for modern installations that require data and electrical power transmission via a single standard network cable (twisted pair). This solution eliminates the need to run additional power cables to end devices, which significantly reduces installation costs and improves mounting aesthetics.
A key advantage of this model is full support for the Gigabit Ethernet standard (10/100/1000 Mbps). This means the injector does not limit network throughput, which is critical for high-performance Wi-Fi access points, high-resolution 4K IP cameras, and other advanced network devices. The device provides a stable 48V DC output voltage with up to 24W of power, ensuring reliable operation of connected equipment even in continuous 24/7 mode.
The power adapter features exceptional Plug and Play simplicity – it requires no configuration. Simply connect the LAN cable with data to the input and the cable leading to the end device to the PoE output. A solid housing made of high-quality plastic and a built-in LED indicating power status make this a durable and user-friendly product. By choosing the TP-LINK brand, you are investing in proven network solutions trusted by installers worldwide. It is an indispensable component of video surveillance systems and extensive wireless networks in offices and homes.
Passive PoE Gigabit Ethernet 48V 24W Power Adapter RJ45 Network Injector LAN Stable
Model: TP-LINK TL-POE4824G
EAN: 6931240035757 SKU: 931035751
- Gigabit Ethernet standard support (10/100/1000 Mbps)
- Passive PoE technology delivering power and data via a single cable
- Stable 48V DC output voltage
- Maximum output power up to 24W
- Convenient LED indicator for network connection status
- Compact and durable plastic housing
- Simple Plug and Play installation with no configuration required
- Wide input voltage range 100-240V AC
- IEC C6 power connector (cloverleaf)
Description
The TL-POE4824G power adapter is a professional device designed to power network equipment using Passive PoE technology. It is an ideal solution for modern installations that require data and electrical power transmission via a single standard network cable (twisted pair). This solution eliminates the need to run additional power cables to end devices, which significantly reduces installation costs and improves mounting aesthetics.
A key advantage of this model is full support for the Gigabit Ethernet standard (10/100/1000 Mbps). This means the injector does not limit network throughput, which is critical for high-performance Wi-Fi access points, high-resolution 4K IP cameras, and other advanced network devices. The device provides a stable 48V DC output voltage with up to 24W of power, ensuring reliable operation of connected equipment even in continuous 24/7 mode.
The power adapter features exceptional Plug and Play simplicity – it requires no configuration. Simply connect the LAN cable with data to the input and the cable leading to the end device to the PoE output. A solid housing made of high-quality plastic and a built-in LED indicating power status make this a durable and user-friendly product. By choosing the TP-LINK brand, you are investing in proven network solutions trusted by installers worldwide. It is an indispensable component of video surveillance systems and extensive wireless networks in offices and homes.
Specification
Power standard
Passive PoE - The device is not compliant with the IEEE 802.3af/at standard. It uses transmission pairs in the UTP cable to deliver constant supply voltage to the receiver.
Transmission speed
Full support for 10/100/1000 Mbps standards (Gigabit Ethernet). Ensures maximum network performance without data transmission delays.
Input voltage
Wide input voltage range from 100 V to 240 V AC at 50 Hz / 60 Hz frequency, allowing operation under various power standards.
Output voltage
Stabilised 48 V DC voltage (Passive PoE), perfectly matched to the requirements of TP-LINK network devices and other manufacturers supporting this standard.
Output power
Maximum output power is 24 W, allowing for the powering of even more demanding access points or surveillance cameras.
Number of inputs
1 RJ-45 port serving as a data input (LAN / Data In) from a switch or router.
Number of outputs
1 RJ-45 port serving as a power and data output (PoE / Data + Power Out) to the end device.
Connectors
Equipped with two RJ-45 sockets and one IEC C6 mains power socket (popular cloverleaf).
Optical signalling
Built-in LED indicating connection of the device to a mains power source.
Housing
Compact housing made of high-quality, flame-retardant black plastic, ensuring an aesthetic appearance.
Operating conditions
Device designed for operation at temperatures from 0 °C to 40 °C with relative humidity from 10 % to 90 % (non-condensing).
Application
Dedicated to powering wireless access points (AP), IP cameras, and VoIP phones supporting 48V Passive PoE power.
Technical protections
Integrated protection circuits against short-circuit, overload, and power supply surges.
Energy efficiency
High energy conversion efficiency, which minimises device heating during long-term operation.
Operational recommendations
For continuous operation (24/7), it is recommended that the load does not exceed 80% of the maximum current to maintain longevity.
Contents
1x PoE Power Adapter TL-POE4824G
1x Mains power cable
1x Quick installation guide
Dimensions, Weight
Product dimensions: 36 x 110 x 57 mm (D x W x H)
Package dimensions: 64 x 196 x 165 mm (D x W x H)
Product weight: 150 g
Weight with packaging: 372 g
