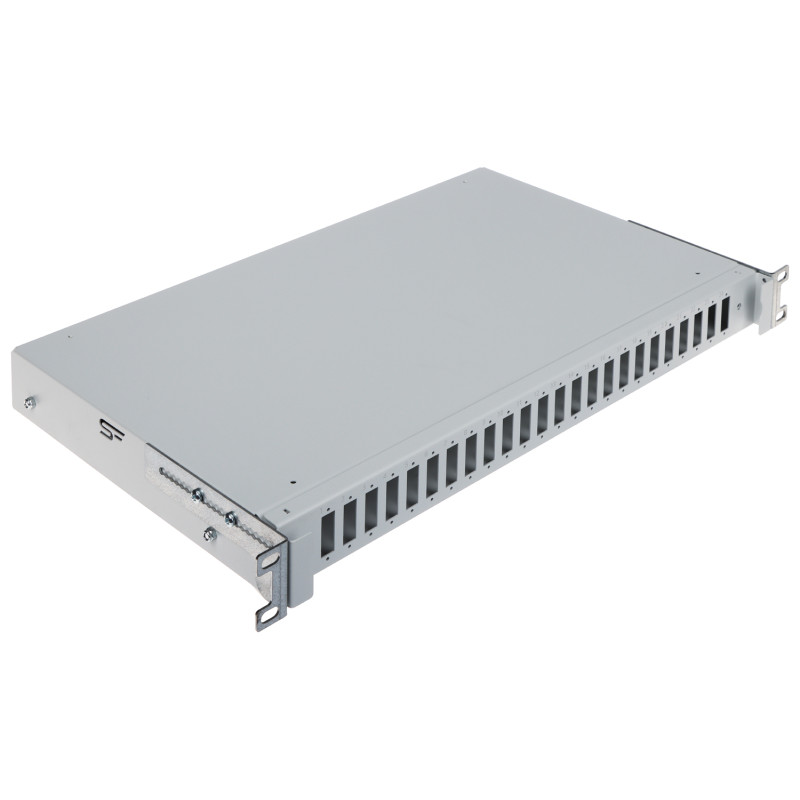

19 inch 1U 24 port fiber optic patch panel SC Duplex LC Quad sliding drawer grey

Model: STALFLEX TFDP-19-1U-24D-SC-G

EAN: 6931240097137 SKU: 931097131

• Enclosure type: 1U Rack 19"
• Sliding drawer on rails
• 24 slots for SC duplex / LC quad adapters
• 4 cable glands at the rear of the enclosure
• Solid steel construction
• Grey color RAL7035
• Polish product

Description

The TFDP-19-1U-24D-SC-G fiber optic patch panel is a professional solution designed for organizing and terminating fiber optic cables in standard 19-inch Rack cabinets. The device features a 1U height, allowing for optimal use of mounting space in server rooms and data centers. The main advantage of this model is the sliding drawer on rails, which significantly facilitates access to the interior of the patch panel during installation, fiber splicing, and subsequent system maintenance without the need to dismantle the entire device.

The front panel is equipped with 24 openings adapted for mounting SC Duplex or LC Quad type adapters, providing a total capacity of up to 48 fibers in the case of LC connectors. This solution makes the product extremely versatile and suitable for extensive telecommunications networks, IP monitoring systems, and modern FTTH installations. At the rear of the enclosure, there are four cable glands that allow for convenient entry of trunk cables and their secure immobilization.

Product advantages:

- Sliding drawer on metal rails for easy installation and service.

- High port density (up to 48 fibers in 1U).

- Versatility of SC Duplex and LC Quad adapter mounting.

- Solid steel enclosure protecting splices and delicate pigtails.

- Standard 1U dimension fitting any 19-inch Rack cabinet.

- Aesthetic powder coating RAL7035 and Polish production ensuring quality.

- Complete mounting kit including glands included.

Specification

Enclosure type

Standard 1U height designed for mounting in server and telecommunications cabinets with a 19-inch spacing.

Front panel

Equipped with precisely cut mounting holes, allowing for stable seating of fiber optic adapters.

Number of slots

24 dedicated mounting slots that can accommodate SC Duplex or LC Quad adapters depending on network needs.

Fiber capacity

Possibility to terminate up to 48 fiber optic fibers using LC connectors, ensuring high connection density.

Drawer construction

Innovative sliding drawer on metal rails, providing full access to the interior without dismantling the device.

Cable glands

Four holes in the rear part of the enclosure, adapted for mounting cable glands protecting trunk cables.

Hole dimensions

Standard windows with dimensions of 9.5 x 25.5 mm, compatible with most flangeless adapters available on the market.

Material

Durable steel sheet of appropriate thickness, ensuring structural rigidity and protection against damage.

Protective coating

Powder coating in grey RAL7035, characterized by high scratch resistance and an aesthetic appearance.

Professional application

Ideal for building distribution points in LAN, WAN, IP video surveillance systems, and FTTH.

Mounting and installation

Simple front mounting to 19-inch Rack rails using a standard set of M6 mounting screws.

Fiber safety

Interior designed to maintain safe bending radii for glass fibers and fiber optic pigtails.

Compatibility with cassettes

Patch panel adapted for mounting PPKS-12N or PPKS-24N splice cassettes, which facilitates splice organization.

Warranty and quality

Product covered by a 2-year manufacturer's warranty, made in accordance with the highest quality standards in Poland.

Physical parameters

Width 484 mm, depth 285 mm, height 44 mm; net weight of the device is 2.48 kg.

Contents

1x Fiber optic patch panel

1x Set of mounting screws

4x Cable gland

Cardboard packaging

Dimensions, Weight

Product dimensions: 285 x 484 x 44 mm (Depth x Width x Height)

Packaging dimensions: 350 x 520 x 55 mm (Depth x Width x Height)

Product weight: 2480 g

Weight with packaging: 2864 g
