- New

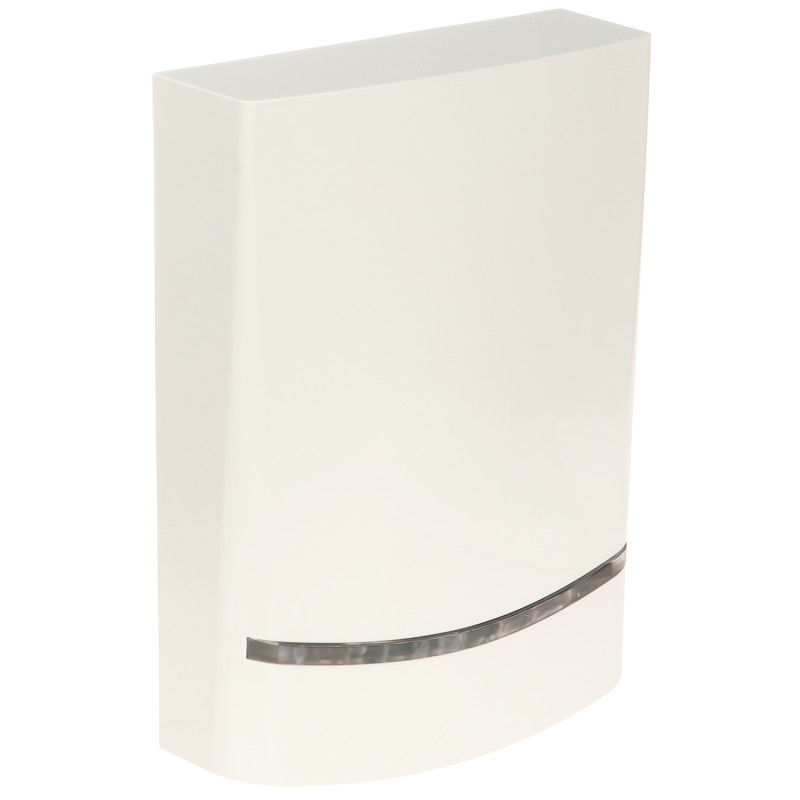

External Optical-Acoustic LED Piezo Siren Grade 2 IP54 Blue Alarm Anti-tamper AMC SV-BLADE-01/BLUE
zł179.01
Tax included
The professional external optical-acoustic siren SV-BLADE-01/BLUE is an advanced alarm device designed for the highest level of security in intrusion and hold-up alarm systems (I&HAS). The product combines modern visual signaling technology based on super-bright blue LEDs with a powerful sound signal generated by an efficient piezoelectric transducer.
One of the key advantages of this model is its exceptional durability. The housing is made of high-impact polycarbonate, which guarantees resistance to mechanical damage, vandalism, and changing weather conditions. Thanks to the use of UV stabilizers, the siren retains its aesthetic white appearance for many years without yellowing under the influence of sunlight.
The device offers flexibility in terms of power supply – it can operate as a standard system component powered directly from the control panel, or as an independent unit with its own emergency power supply when equipped with a dedicated battery. Installation security is enhanced by an advanced anti-tamper system that immediately detects attempts to open the housing or tear the device from the mounting surface. The product meets rigorous Grade 2 safety standards, making it an ideal choice for homes, offices, and commercial facilities requiring certified solutions.
External Optical-Acoustic LED Piezo Siren Grade 2 IP54 Blue Alarm Anti-tamper
Model: AMC SV-BLADE-01/BLUE
EAN: 6931240057872 SKU: 931057871
- Optical signaling using super-bright blue LEDs
- Acoustic signaling based on an efficient piezoelectric transducer
- High-impact polycarbonate housing resistant to weather conditions and UV radiation
- Full anti-tamper protection against opening and removal from the wall
- Compliance with European standard EN 50131-4 (Grade 2)
- Provision for internal backup battery installation
- Watchdog function for monitoring device readiness status
- High IP54 ingress protection rating allowing operation in harsh conditions
Description
The professional external optical-acoustic siren SV-BLADE-01/BLUE is an advanced alarm device designed for the highest level of security in intrusion and hold-up alarm systems (I&HAS). The product combines modern visual signaling technology based on super-bright blue LEDs with a powerful sound signal generated by an efficient piezoelectric transducer.
One of the key advantages of this model is its exceptional durability. The housing is made of high-impact polycarbonate, which guarantees resistance to mechanical damage, vandalism, and changing weather conditions. Thanks to the use of UV stabilizers, the siren retains its aesthetic white appearance for many years without yellowing under the influence of sunlight.
The device offers flexibility in terms of power supply – it can operate as a standard system component powered directly from the control panel, or as an independent unit with its own emergency power supply when equipped with a dedicated battery. Installation security is enhanced by an advanced anti-tamper system that immediately detects attempts to open the housing or tear the device from the mounting surface. The product meets rigorous Grade 2 safety standards, making it an ideal choice for homes, offices, and commercial facilities requiring certified solutions.
Specification
Device type
External optical-acoustic siren
Sound source
Piezoelectric transducer generating a modulated high-frequency signal
Light source
Set of super-bright LEDs with low energy consumption and high luminance
Sound intensity level
100 dB at 1 meter; 85 dB at 3 meters
Anti-tamper protection
Dual protection system: microswitch detecting cover opening and tear-off sensor from the mounting surface
Ingress protection (IP) rating
IP54 - protection against dust and water splashes from any direction
Compliance with standards
EN 50131-4:2010, Security grade: Grade 2, Environmental class: IV
Main power supply
13.8 V DC (permissible range 11 V ... 15 V DC) from an external power supply or control panel
Emergency power supply
Space for an optional internal 12V / 2.2Ah battery (not included)
Current consumption
Maximum 150 mA during full signaling
Operating conditions
Temperature from -25 °C to 55 °C; adapted for operation in temperate and harsh climates
Housing
High-impact polycarbonate (PC), white color with blue signaling lens
Battery compartment dimensions
Two configurations: 185 x 72 x 34 mm or 99 x 72 x 52 mm
Additional functions
Watchdog function - optional optical signaling of system standby mode; support for a wide range of alarm control panels from various manufacturers
Software and logic
The device has a built-in microprocessor controller managing alarm logic. The firmware implements a Watchdog function, which allows for discreet confirmation of system health through periodic LED flashes. The control algorithm optimizes current consumption when operating on battery power, ensuring the longest possible signaling time in the event of a main power failure. The system intelligently manages control input priorities, allowing for independent triggering of optics and acoustics depending on the alarm panel configuration.
Contents
1x External siren SV-BLADE-01/BLUE
1x Set of mounting screws
1x Installation and operation manual
Dimensions, Weight
Product dimensions: 70 x 210 x 295 mm (D x W x H)
Packaging dimensions: 80 x 215 x 300 mm (D x W x H)
Product weight: 770 g
Weight with packaging: 868 g
