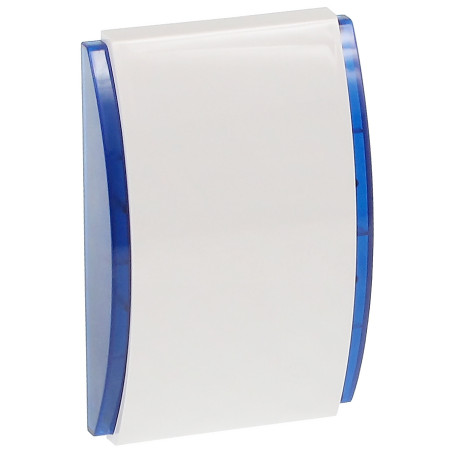

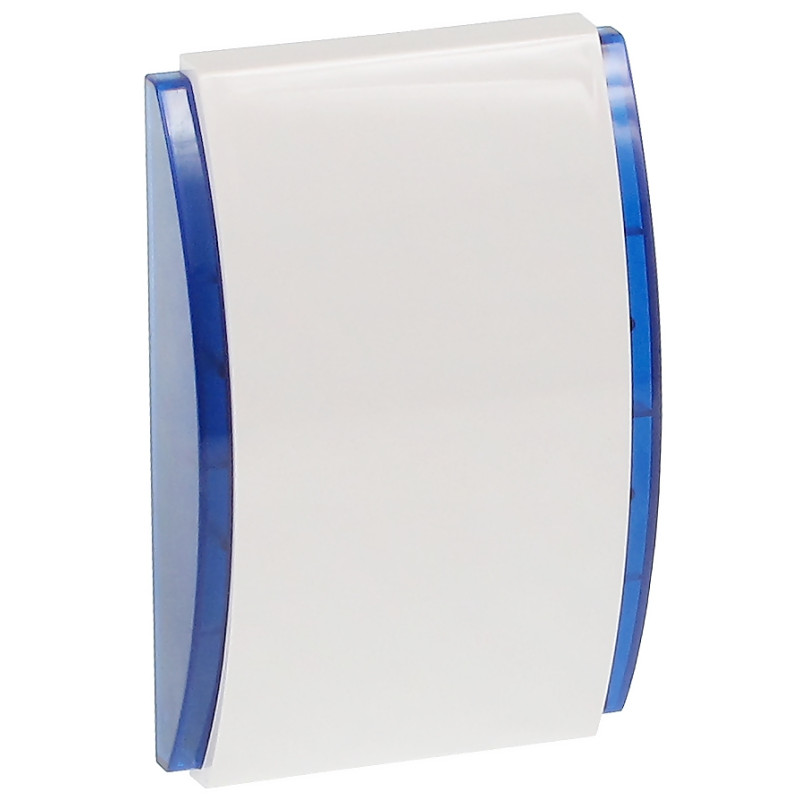

Internal optical-acoustic LED piezo blue alarm siren SATEL SPW-220-BL
zł162.83
Tax included
The SPW-220-BL internal siren is an advanced optical-acoustic device designed by the renowned company SATEL, a leader in the security systems industry. This device is a key component of any intrusion and robbery signaling system (SSWiN), providing effective notification of alarm events inside the protected facility. Thanks to the combination of intense light signaling based on modern LEDs and a loud sound signal generated by an efficient piezoelectric transducer, the SPW-220-BL guarantees that no alarm will be overlooked.
The main advantage of this model is its exceptional durability. The enclosure is made of high-impact polycarbonate, which makes it extremely resistant to mechanical damage and sabotage attempts. This material retains its aesthetic properties for many years, does not yellow, and does not become brittle. The siren is also characterized by compact dimensions, which allows for discreet installation in various rooms, from offices to private homes.
System security is a priority, which is why the SPW-220-BL is equipped with double tamper protection. The device reacts immediately to attempts to open the enclosure or tear it off the mounting surface, making it extremely difficult to neutralize by unauthorized persons. The blue color of the optical signaling gives the device a modern look and allows for easy differentiation of the alarm type in complex systems.
Installation of the device is simple and intuitive, and the wide range of permissible supply voltage (12V DC +/- 15%) makes the siren compatible with most alarm control panels available on the market. Low power consumption in standby mode and optimal power draw during an alarm (max 290mA) do not excessively load the system power supply. By choosing a SATEL brand product, the user receives a guarantee of reliability and the highest quality of workmanship, which is confirmed by numerous certificates and a two-year warranty period.
Internal optical-acoustic LED piezo blue alarm siren
Model: SATEL SPW-220-BL
EAN: 6931240034620 SKU: 931034628
- Acoustic signaling: piezoelectric transducer
- Optical signaling: ultra-bright LEDs
- Tamper protection against enclosure opening
- Tamper protection against removal from mounting surface
- High-impact polycarbonate enclosure
- Modern design and aesthetic appearance
- Blue optical signaling color
- High mechanical resistance
Description
The SPW-220-BL internal siren is an advanced optical-acoustic device designed by the renowned company SATEL, a leader in the security systems industry. This device is a key component of any intrusion and robbery signaling system (SSWiN), providing effective notification of alarm events inside the protected facility. Thanks to the combination of intense light signaling based on modern LEDs and a loud sound signal generated by an efficient piezoelectric transducer, the SPW-220-BL guarantees that no alarm will be overlooked.
The main advantage of this model is its exceptional durability. The enclosure is made of high-impact polycarbonate, which makes it extremely resistant to mechanical damage and sabotage attempts. This material retains its aesthetic properties for many years, does not yellow, and does not become brittle. The siren is also characterized by compact dimensions, which allows for discreet installation in various rooms, from offices to private homes.
System security is a priority, which is why the SPW-220-BL is equipped with double tamper protection. The device reacts immediately to attempts to open the enclosure or tear it off the mounting surface, making it extremely difficult to neutralize by unauthorized persons. The blue color of the optical signaling gives the device a modern look and allows for easy differentiation of the alarm type in complex systems.
Installation of the device is simple and intuitive, and the wide range of permissible supply voltage (12V DC +/- 15%) makes the siren compatible with most alarm control panels available on the market. Low power consumption in standby mode and optimal power draw during an alarm (max 290mA) do not excessively load the system power supply. By choosing a SATEL brand product, the user receives a guarantee of reliability and the highest quality of workmanship, which is confirmed by numerous certificates and a two-year warranty period.
Specification
Device type
Internal optical-acoustic siren
Sound source
High-intensity piezoelectric transducer
Light source
High-brightness LEDs
Optical signaling color
Blue
Enclosure material
High-impact polycarbonate (PC) resistant to damage
Tamper protection 1
Tamper contact reacting to enclosure opening
Tamper protection 2
Tamper contact reacting to removal from mounting surface
Supply voltage
12 V DC (tolerance ± 15%)
Current consumption
Maximum 290 mA during alarm
Operating temperature
-10 °C ... 55 °C (Environmental class II)
Permissible humidity
Up to 93% without water vapor condensation
Compliance with standards
CE, EN 50130-4, EN 50130-5
Warranty
24 months (2 years)
Software and configuration
The device works with SATEL alarm control panels (Integra, Versa, Perfecta). Management of the siren's operation logic is performed via DLOADX or PERFECTA SOFT software. These programs allow for precise determination of the signaling duration, assignment of the device to specific zones, and selection of events triggering the alarm. The software interface allows for remote system diagnostics and full personalization of settings for outputs controlling the siren, which ensures maximum flexibility in designing security systems.
Contents
1x SPW-220-BL siren
1x Set of mounting screws and wall plugs
1x Installation and user manual
Dimensions, Weight
Product dimensions: 37 x 87 x 134 mm (D x W x H)
Packaging dimensions: 50 x 100 x 140 mm (D x W x H)
Product weight: 150 g
Weight with packaging: 210 g
