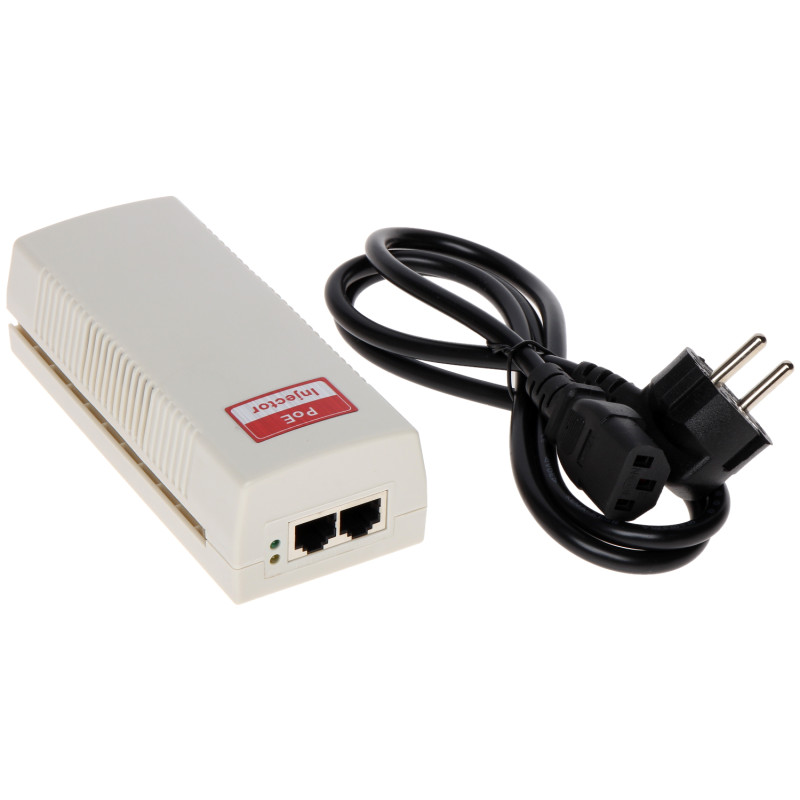

PoE Injector 15.4W IEEE 802.3af 48V-56V DC RJ45 10/100 Mbps Network Power Adapter Delta SPT-1/1P
zł146.37
Tax included
The SPT-1/1P PoE injector is a professional device designed to power network equipment using Power over Ethernet technology. Thanks to this solution, the installation of IP monitoring systems, Wi-Fi access points, or VoIP phones becomes significantly simpler and more economical. The device allows for the transmission of electrical energy and data using a single standard category 5e or higher computer twisted-pair cable, which eliminates the need to run additional power cabling to each receiver.
A key advantage of the SPT-1/1P injector is its full compliance with the IEEE 802.3af standard, which guarantees safe compatibility with a wide range of devices from various manufacturers. It offers an output power of 15.4 W, which is sufficient for most dome cameras, bullet cameras, and smaller network switches. The output voltage in the range of 48V to 56V DC ensures stable operation even over longer cable runs where voltage drops may occur.
The device's construction has been optimized for reliability. The housing, made of durable plastic, features special tabs that allow multiple injectors to be connected together, which helps maintain order in telecommunications cabinets or distribution points. Built-in LED indicators clearly inform the user about the power status and PoE port activity, which significantly facilitates the diagnosis of potential network problems.
Please note that for continuous operation (24/7), it is recommended that the load does not exceed 80% of the maximum power, which extends the lifespan of electronic components. The SPT-1/1P injector is an ideal solution for installers looking for a solid and proven way to power network infrastructure in places where access to 230V sockets is limited or impossible.
PoE Injector 15.4W IEEE 802.3af 48V-56V DC RJ45 10/100 Mbps Network Power Adapter
Model: Delta SPT-1/1P
EAN: 6931240025789 SKU: 931025780
- Compliance with IEEE 802.3af standard
- Output power 15.4 W
- Support for 10/100 Mbps speeds
- Wide input voltage range 100-240V AC
- Modular housing connection capability
- LED optical signaling (Power, PoE)
- Simple Plug & Play installation
- Compact dimensions and low weight
Description
The SPT-1/1P PoE injector is a professional device designed to power network equipment using Power over Ethernet technology. Thanks to this solution, the installation of IP monitoring systems, Wi-Fi access points, or VoIP phones becomes significantly simpler and more economical. The device allows for the transmission of electrical energy and data using a single standard category 5e or higher computer twisted-pair cable, which eliminates the need to run additional power cabling to each receiver.
A key advantage of the SPT-1/1P injector is its full compliance with the IEEE 802.3af standard, which guarantees safe compatibility with a wide range of devices from various manufacturers. It offers an output power of 15.4 W, which is sufficient for most dome cameras, bullet cameras, and smaller network switches. The output voltage in the range of 48V to 56V DC ensures stable operation even over longer cable runs where voltage drops may occur.
The device's construction has been optimized for reliability. The housing, made of durable plastic, features special tabs that allow multiple injectors to be connected together, which helps maintain order in telecommunications cabinets or distribution points. Built-in LED indicators clearly inform the user about the power status and PoE port activity, which significantly facilitates the diagnosis of potential network problems.
Please note that for continuous operation (24/7), it is recommended that the load does not exceed 80% of the maximum power, which extends the lifespan of electronic components. The SPT-1/1P injector is an ideal solution for installers looking for a solid and proven way to power network infrastructure in places where access to 230V sockets is limited or impossible.
Specification
Standards
IEEE 802.3af - a standard allowing for data and power transmission via a single twisted-pair cable up to 100 meters.
Input voltage
100 V ... 240 V AC - universal AC voltage allowing operation in various power grids.
Output voltage
48 V ... 56 V DC - stabilized DC voltage dedicated to PoE devices.
Number of inputs
1 LAN port (RJ-45) for connecting the data signal from a switch or router.
Connectors
2 x RJ-45 socket (Data In and Data + Power Out).
Signaling LEDs
Indicator for connection to mains power and indicator for PoE power activity.
Output power
15.4 W - maximum power delivered to the end device.
Supported transmission speed
10 / 100 Mbps - Fast Ethernet standard ensuring smooth video and audio data transmission.
Protections
No built-in surge protection - the use of external surge arresters is recommended.
Housing
Made of high-quality plastic, the design allows for mechanical connection of multiple units.
Operating temperature
0 °C ... 40 °C - optimal temperature range for stable indoor operation.
Relative humidity
5 % ... 90 % - permissible humidity range without water vapor condensation.
Warranty
2 years (24 months) provided by the manufacturer.
Operating logic and software
The device operates in Plug & Play mode, meaning it does not require initial configuration or driver installation. The internal logic of the injector automatically negotiates power parameters with the connected end device (PD - Powered Device) in accordance with the IEEE 802.3af protocol. The system monitors current consumption and ensures stable energy delivery. If a device non-compliant with the PoE standard is detected, the injector will not supply voltage to the transmission pins, thereby protecting delicate electronics from damage. The physical interface based on LEDs allows for immediate verification of the connection status without the need for external diagnostic tools.
Contents
1x PoE Injector SPT-1/1P
1x User manual
Dimensions, Weight
Product dimensions: 65 x 145 x 43 mm (D x W x H)
Package dimensions: 125 x 205 x 55 mm (D x W x H)
Product weight: 166 g
Weight with packaging: 406 g
