- New

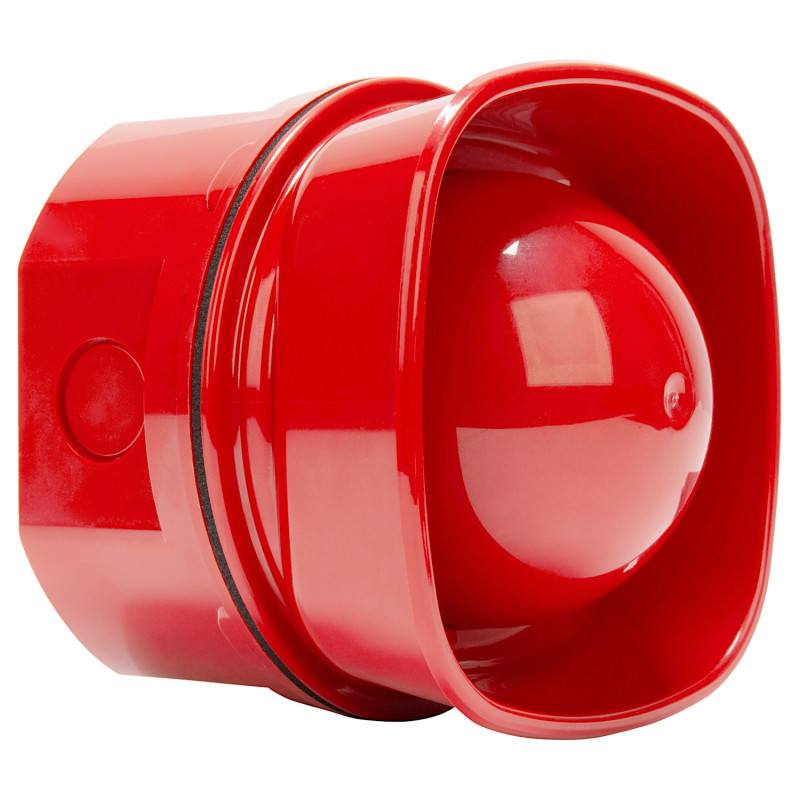

External Acoustic Fire Alarm IP65 Red CSP SATEL SPP-111
zł195.03
Tax included
The SPP-111 is a professional external acoustic alarm designed for the highest level of safety in fire alarm systems. The device features exceptional resistance to harsh weather conditions due to its high IP65 ingress protection rating, allowing for trouble-free operation outdoors even in extreme rain or dusty environments. The alarm is fully compatible with conventional SATEL CSP series control panels, making it an ideal choice for professional fire protection installations in industrial, office, and public utility buildings.
The main advantage of the device is the ability to choose from 32 available sound signals, allowing for precise adjustment of the alarm characteristics to the specifics of the facility or local safety regulations. The robust red housing, made of high-quality plastic, ensures excellent visibility and mechanical durability. The device operates in a wide temperature range from -25°C to 70°C, guaranteeing reliability during both cold winters and hot days. Low standby power consumption (only 0.1 mA) minimizes the load on the emergency power system, while in alarm mode, the consumption is 15 mA, resulting in a loud and clear warning signal. The product holds the necessary certificates and CNBOP approvals, confirming its compliance with rigorous fire safety standards. By choosing the SPP-111, you are investing in proven Polish technology that has been protecting property and human lives in thousands of facilities for years. Product benefits primarily include high reliability confirmed by certificates, ease of installation thanks to a dedicated base, and an aesthetic appearance that does not detract from the building facade. Additionally, the wide selection of sounds allows for avoiding confusion with other alarm systems installed in the same facility.
External Acoustic Fire Alarm IP65 Red CSP
Model: SATEL SPP-111
EAN: 6931240026670 SKU: 931026678
- Full compatibility with the SATEL CSP system
- High IP65 ingress protection rating for outdoor applications
- 32 programmable sound signaling modes
- Very low standby power consumption (0.1 mA)
- Wide operating temperature range from -25°C to 70°C
- CPR certified and CNBOP approved
- Durable red housing ensuring visibility
- Product of the Polish manufacturer SATEL
Description
The SPP-111 is a professional external acoustic alarm designed for the highest level of safety in fire alarm systems. The device features exceptional resistance to harsh weather conditions due to its high IP65 ingress protection rating, allowing for trouble-free operation outdoors even in extreme rain or dusty environments. The alarm is fully compatible with conventional SATEL CSP series control panels, making it an ideal choice for professional fire protection installations in industrial, office, and public utility buildings.
The main advantage of the device is the ability to choose from 32 available sound signals, allowing for precise adjustment of the alarm characteristics to the specifics of the facility or local safety regulations. The robust red housing, made of high-quality plastic, ensures excellent visibility and mechanical durability. The device operates in a wide temperature range from -25°C to 70°C, guaranteeing reliability during both cold winters and hot days. Low standby power consumption (only 0.1 mA) minimizes the load on the emergency power system, while in alarm mode, the consumption is 15 mA, resulting in a loud and clear warning signal. The product holds the necessary certificates and CNBOP approvals, confirming its compliance with rigorous fire safety standards. By choosing the SPP-111, you are investing in proven Polish technology that has been protecting property and human lives in thousands of facilities for years. Product benefits primarily include high reliability confirmed by certificates, ease of installation thanks to a dedicated base, and an aesthetic appearance that does not detract from the building facade. Additionally, the wide selection of sounds allows for avoiding confusion with other alarm systems installed in the same facility.
Specification
Application
Conventional fire alarm systems SATEL CSP
Supply voltage
18 ... 28 V DC (direct current)
Current consumption (standby)
0.1 mA - minimum detection line load
Current consumption (alarm)
15 mA - high energy efficiency
Sound intensity level
min. 73 dBA @ 165° , min. 71 dBA @ 15°
Signaling modes
32 different sound signals selectable by the installer
Ingress protection rating
IP65 - protection against dust and strong water jets
Operating environment
Class B (outdoor, weather-resistant)
Operating temperature
-25 °C ... 70 °C
Housing color
Red (RAL 3001)
Certification
Compliance with EN 54-3 standard, CPR Certificate, CNBOP Certificate
Warranty
2 years (24 months)
Software
The device works with the SATEL CSP system, which offers advanced configuration software. The CSP (Conventional System Panel) system enables full line diagnostics, current monitoring, and precise programming of alarm scenarios. The software allows for remote or local configuration of control panel operating parameters, which translates into optimal management of SPP-111 alarms. Thanks to advanced algorithms, the system can distinguish between real threats and false alarms, and the user interface provides a clear overview of the status of all devices in the system, facilitating maintenance and periodic technical inspections.
Compliance with standards
Construction product compliant with CPR Regulation 305/2011
Contents
1x SPP-111 Alarm
1x Operating and installation manual
1x Set of seals and screws
Dimensions, Weight
Product dimensions: 96 x 108 x 108 mm (D x W x H)
Packaging dimensions: 90 x 110 x 110 mm (D x W x H)
Product weight: 228 g
Weight with packaging: 300 g
