- New

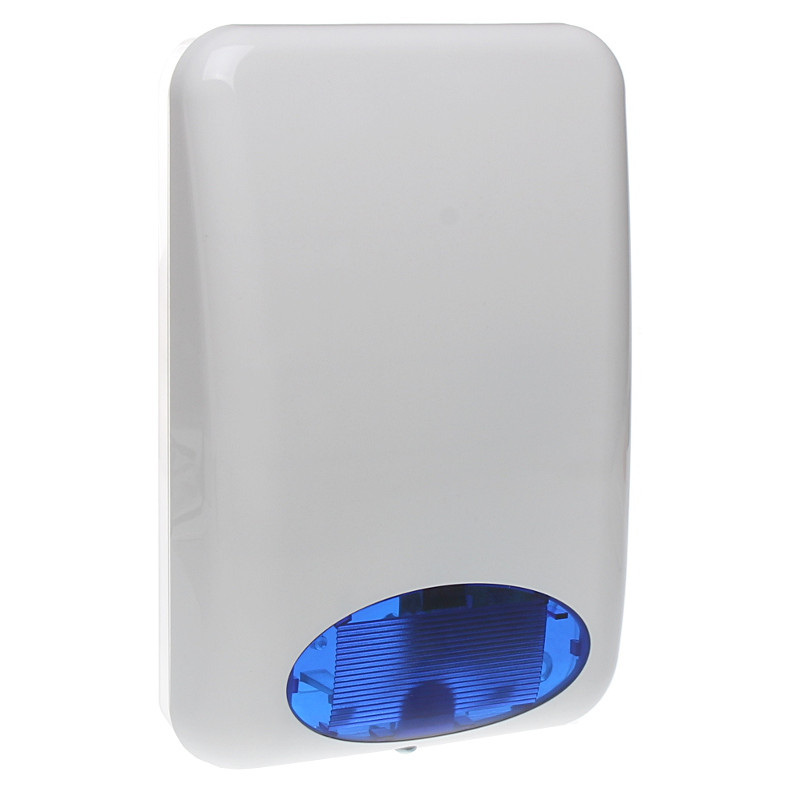

SATEL SPL-5010-BL Blue Outdoor Optical-Acoustic Alarm Siren 120dB SATEL SPL-5010-BL
zł160.93
Tax included
The SPL-5010-BL outdoor siren is a professional optical-acoustic device designed by the renowned company SATEL, a leader in the security systems industry. This product is a key element of intrusion and robbery signaling systems, ensuring effective notification of threats to both residents and the surrounding area. Thanks to the use of modern technologies, the siren is characterized by exceptional reliability and resistance to neutralization attempts by unauthorized persons.
The main advantage of the SPL-5010-BL model is its powerful acoustic output of up to 120 dB, which guarantees excellent audibility of the alarm signal even in a noisy urban environment. Optical signaling is provided by bright blue light elements, allowing for quick location of the alarm source after dark. The device is equipped with two independent control inputs, giving the installer flexibility in choosing the alarm triggering method (voltage level or ground).
System security is enhanced by advanced tamper protection. The siren reacts immediately to any attempt to open the housing or detach the device from the surface, making it extremely difficult to disable. The housing made of high-impact polycarbonate ensures not only an aesthetic appearance for many years, but above all protects the delicate electronics against mechanical damage and harsh weather conditions, such as rain, snow, or extreme temperatures.
By choosing the SATEL SPL-5010-BL siren, you are investing in a proven, durable product that is fully compliant with rigorous safety standards. It is an ideal solution for single-family homes, commercial facilities, and offices where operational reliability and high quality of workmanship are important. The product is entirely manufactured in Poland, which is an additional advantage confirming its robustness and ease of technical support.
SATEL SPL-5010-BL Blue Outdoor Optical-Acoustic Alarm Siren 120dB
Model: SATEL SPL-5010-BL
EAN: 6931240047972 SKU: 931047977
- Acoustic signaling: piezoelectric transducer
- Optical signaling: 12V 5W bulb
- Sound intensity: 120 dB
- Full tamper protection against opening and removal
- High-impact polycarbonate housing
- Two control inputs (selectable control method)
- Resistance to harsh weather conditions
- Polish product from the renowned SATEL brand
Description
The SPL-5010-BL outdoor siren is a professional optical-acoustic device designed by the renowned company SATEL, a leader in the security systems industry. This product is a key element of intrusion and robbery signaling systems, ensuring effective notification of threats to both residents and the surrounding area. Thanks to the use of modern technologies, the siren is characterized by exceptional reliability and resistance to neutralization attempts by unauthorized persons.
The main advantage of the SPL-5010-BL model is its powerful acoustic output of up to 120 dB, which guarantees excellent audibility of the alarm signal even in a noisy urban environment. Optical signaling is provided by bright blue light elements, allowing for quick location of the alarm source after dark. The device is equipped with two independent control inputs, giving the installer flexibility in choosing the alarm triggering method (voltage level or ground).
System security is enhanced by advanced tamper protection. The siren reacts immediately to any attempt to open the housing or detach the device from the surface, making it extremely difficult to disable. The housing made of high-impact polycarbonate ensures not only an aesthetic appearance for many years, but above all protects the delicate electronics against mechanical damage and harsh weather conditions, such as rain, snow, or extreme temperatures.
By choosing the SATEL SPL-5010-BL siren, you are investing in a proven, durable product that is fully compliant with rigorous safety standards. It is an ideal solution for single-family homes, commercial facilities, and offices where operational reliability and high quality of workmanship are important. The product is entirely manufactured in Poland, which is an additional advantage confirming its robustness and ease of technical support.
Specification
Device type
Outdoor optical-acoustic siren
Acoustic transducer
Piezoelectric, 120 dB sound intensity
Optical signaling
12 V / 5 W bulb, blue lens color
Tamper protection
Detection of housing opening and detection of detachment from the surface (tamper switch)
Control inputs
2 independent control inputs for sound and light
Triggering logic
Selectable control: +12V voltage supply or ground (0V) supply
Power parameters
12 V DC ± 15% (external power supply required)
Current consumption
Maximum current consumption: 300 mA
Operating conditions
Operating temperature: -35 °C ... 60 °C
Housing construction
High-impact polycarbonate (PC), high mechanical strength
Colors and design
White housing, blue lens, aesthetic design
System compatibility
Compatibility with any alarm control panel (e.g., SATEL INTEGRA, VERSA, PERFECTA) and home automation systems
Certification and standards
CE compliance, product manufactured in Poland
Control logic and integration
The SPL-5010-BL device, despite the lack of a built-in digital processor, bases its operation on advanced analog control logic, which is fully integrable with the software of alarm control panels such as DLOADX or PERFECTA Soft. This integration allows for full control over alarm scenarios. From the control panel software level, the installer can precisely define the operation times of the acoustic and optical signaling, as well as assign them to specific zones or event types (e.g., burglary, fire, robbery). The siren supports advanced diagnostic functions of the control panel, such as monitoring the presence of load on the outputs, which allows the system to immediately detect the cutting of wires connecting the control panel to the siren. Thanks to two independent inputs, it is possible to create notification priorities – e.g., light only for a silent alarm or full signaling for a burglary. The device is fully software-passive, which eliminates the risk of the siren's operating system hanging, ensuring 100% effectiveness in critical moments.
Contents
1x SPL-5010-BL siren
1x User manual
Set of mounting accessories
Dimensions, Weight
Product dimensions: 72 x 197 x 298 mm (D x W x H)
Packaging dimensions: 75 x 210 x 310 mm (D x W x H)
Product weight: 670 g
Weight with packaging: 860 g
