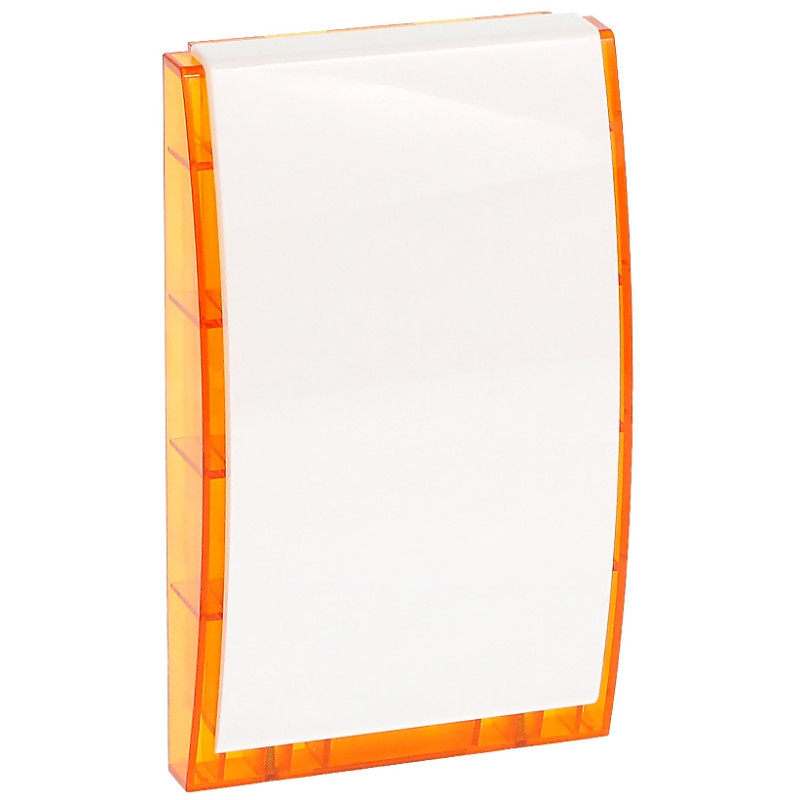

External optical-acoustic LED piezo orange alarm siren for intruder alarm systems 120dB SATEL SP-4001-O
zł195.98
Tax included
The SP-4001-O external siren is an advanced optical-acoustic device that is a key element of any professional intrusion and robbery signaling system. Designed for reliability and effectiveness, it combines intense light signaling based on modern LED diodes with a powerful sound signal generated by an efficient piezoelectric transducer with a volume of up to 120 dB. This combination ensures that the alarm will be perfectly visible and audible even from a long distance, which effectively deters potential intruders and informs the surroundings about the threat.
One of the most important advantages of this model is its exceptional resistance to difficult weather conditions and mechanical damage. The housing is made of high-impact polycarbonate, a material known for its enormous impact resistance and resistance to UV radiation. Thanks to this, the siren retains its aesthetic, orange color and impeccable appearance for many years, without fading or cracking under the influence of frost or sun.
The safety of the device itself is a priority, which is why the manufacturer has equipped it with double tamper protection. The system detects both attempts to open the housing and attempts to tear the device from the ground, which immediately triggers a reaction from the alarm control panel. An additional advantage is the internal galvanized sheet metal cover, which acts as a mechanical barrier for the electronics.
Product advantages:
- Very high sound intensity (120 dB) ensuring effective notification.
- Energy-saving and durable LED optical signaling.
- Polycarbonate housing resistant to vandalism and weather conditions.
- Full tamper protection increasing the system's security level.
- Wide operating temperature range from -35°C to 55°C, ideal for the climate.
- Aesthetic design and easy installation on the building facade.
- Product of a renowned brand, which guarantees high quality and technical support.
External optical-acoustic LED piezo orange alarm siren for intruder alarm systems 120dB
Model: SATEL SP-4001-O
EAN: 6931240092811 SKU: 931092817
- Acoustic signaling: piezoelectric transducer
- Optical signaling: LED diodes
- High mechanical resistance due to polycarbonate housing
- Internal galvanized sheet metal cover
- Tamper protection against opening and removal from the surface
- Wide operating temperature range
- Aesthetic orange lens color
Description
The SP-4001-O external siren is an advanced optical-acoustic device that is a key element of any professional intrusion and robbery signaling system. Designed for reliability and effectiveness, it combines intense light signaling based on modern LED diodes with a powerful sound signal generated by an efficient piezoelectric transducer with a volume of up to 120 dB. This combination ensures that the alarm will be perfectly visible and audible even from a long distance, which effectively deters potential intruders and informs the surroundings about the threat.
One of the most important advantages of this model is its exceptional resistance to difficult weather conditions and mechanical damage. The housing is made of high-impact polycarbonate, a material known for its enormous impact resistance and resistance to UV radiation. Thanks to this, the siren retains its aesthetic, orange color and impeccable appearance for many years, without fading or cracking under the influence of frost or sun.
The safety of the device itself is a priority, which is why the manufacturer has equipped it with double tamper protection. The system detects both attempts to open the housing and attempts to tear the device from the ground, which immediately triggers a reaction from the alarm control panel. An additional advantage is the internal galvanized sheet metal cover, which acts as a mechanical barrier for the electronics.
Product advantages:
- Very high sound intensity (120 dB) ensuring effective notification.
- Energy-saving and durable LED optical signaling.
- Polycarbonate housing resistant to vandalism and weather conditions.
- Full tamper protection increasing the system's security level.
- Wide operating temperature range from -35°C to 55°C, ideal for the climate.
- Aesthetic design and easy installation on the building facade.
- Product of a renowned brand, which guarantees high quality and technical support.
Specification
Device type
External optical-acoustic siren
Acoustic signaling
Piezoelectric transducer generating a 120 dB sound, ensuring excellent audibility in open areas
Optical signaling
Use of high-efficiency, long-life LED diodes, orange lens color
Housing construction
Made of high-impact polycarbonate (PC), characterized by extreme resistance to impacts and external factors
Mechanical protection
Internal galvanized sheet metal cover protecting the electronics board and transducer from physical damage
Tamper protection
Double tamper contact reacting to cover opening and base removal from the wall
Power parameters
12V DC rated voltage with +/- 15% tolerance, allowing stable operation during voltage drops
Current consumption
Maximum current consumption during full signaling is 270 mA (acoustics and optics combined)
Environmental conditions
Device adapted for continuous operation in temperatures from -35 °C to +55 °C
Environmental classification
Designed for outdoor installation, resistant to rain, snow, and humidity
Compliance with standards
Holds CE declaration of conformity, meets rigorous European safety standards for alarm systems
System cooperation
Full compatibility with INTEGRA, VERSA alarm control panels, and other systems operating in the 12V standard
Installation
Adapted for surface mounting on flat facades, features dedicated mounting holes and cable glands
Software and management
The device works with advanced DLOADX configuration software, which allows installers to precisely define how the signaling is triggered. End users can manage the system state, including monitoring the siren's tamper status, via the GX Control or Integra CONTROL mobile application. These applications offer PUSH notifications about alarm events, status preview of inputs/outputs, and remote system control from anywhere in the world. The interface is intuitive and ensures the highest level of data transmission security through encryption.
Warranty and origin
Product covered by a 24-month manufacturer's warranty
Contents
1x SP-4001-O Siren
1x Internal metal cover
1x Set of mounting screws
1x User manual
Dimensions, Weight
Product dimensions: 64 x 148 x 254 mm (D x W x H)
Packaging dimensions: 70 x 160 x 260 mm (D x W x H)
Product weight: 800 g
Weight with packaging: 1000 g
