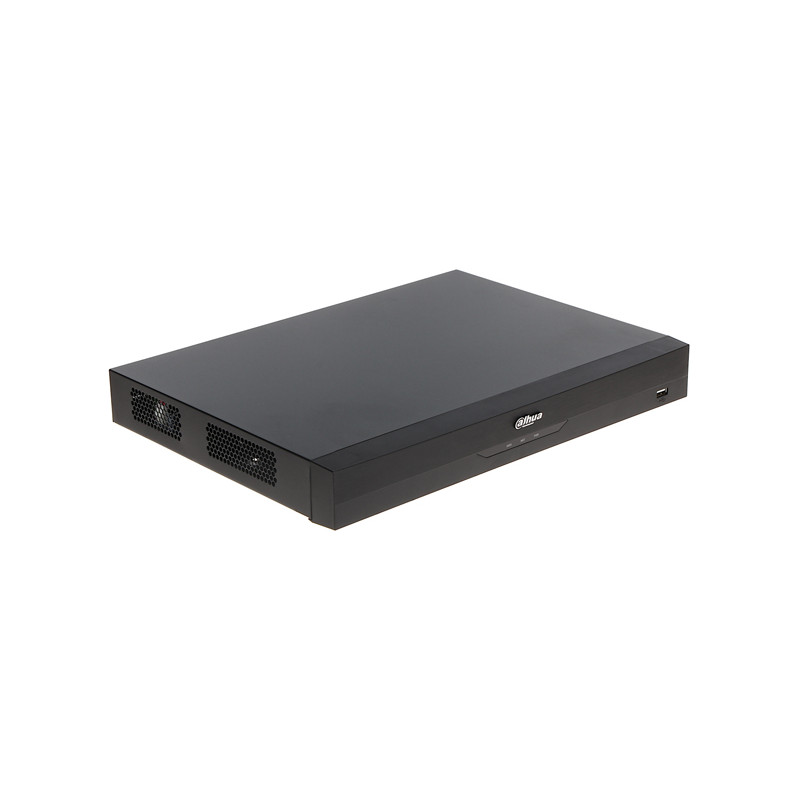

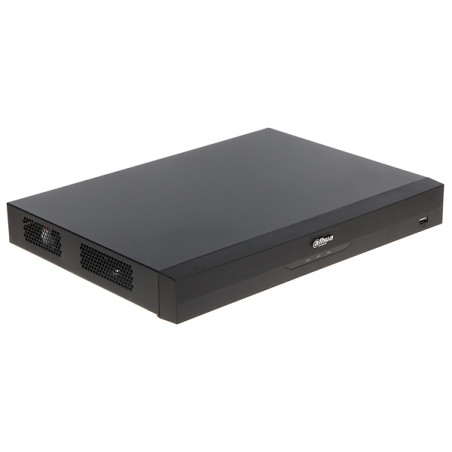

16 Channel Hybrid Recorder AHD HD-CVI HD-TVI CVBS IP 4K DAHUA XVR5216AN-4KL-I3/T
zł4,587.90
Tax included
The XVR5216AN-4KL-I3/T digital recorder is an advanced, 16-channel hybrid device designed for professional video surveillance systems. It supports a wide range of signal transmission standards, including AHD, HD-CVI, HD-TVI, CVBS, and IP cameras, making it an extremely versatile solution for upgrading existing installations and building new security systems. The device is distinguished by high-performance image processing in 4K resolution, ensuring crystal-clear recordings.
A key advantage of the recorder is its built-in advanced AI-based image analytics. Features such as human and vehicle classification, face detection, perimeter protection, and AcuPick technology allow for precise searching through vast amounts of video data, significantly reducing response time to events. The recorder also supports intelligent Smart H.265+ encoding, which optimizes bandwidth and storage space usage without compromising image quality.
The user interface has been designed for intuitive operation, enabling easy configuration even for less experienced installers. Thanks to full network support, a built-in web server, and the dedicated DMSS mobile application, the user has constant access to live view and recordings from anywhere in the world. The robust construction, support for two hard drives with a total capacity of up to 32 TB, and a 3-year manufacturer's warranty confirm the high reliability of the device in demanding working conditions.
16 Channel Hybrid Recorder AHD HD-CVI HD-TVI CVBS IP 4K
Model: DAHUA XVR5216AN-4KL-I3/T
EAN: 6931240031988 SKU: 931031989
- Support for AHD, HD-CVI, HD-TVI, CVBS and IP standards
- Advanced AI image analytics (human and vehicle classification)
- AcuPick technology for fast target searching
- 4K resolution support (3840 x 2160)
- Support for Smart H.265+ compression
- Support for two SATA drives up to 16 TB each
- Remote access via DMSS mobile app (Android/iOS)
- Built-in web server for remote management
Description
The XVR5216AN-4KL-I3/T digital recorder is an advanced, 16-channel hybrid device designed for professional video surveillance systems. It supports a wide range of signal transmission standards, including AHD, HD-CVI, HD-TVI, CVBS, and IP cameras, making it an extremely versatile solution for upgrading existing installations and building new security systems. The device is distinguished by high-performance image processing in 4K resolution, ensuring crystal-clear recordings.
A key advantage of the recorder is its built-in advanced AI-based image analytics. Features such as human and vehicle classification, face detection, perimeter protection, and AcuPick technology allow for precise searching through vast amounts of video data, significantly reducing response time to events. The recorder also supports intelligent Smart H.265+ encoding, which optimizes bandwidth and storage space usage without compromising image quality.
The user interface has been designed for intuitive operation, enabling easy configuration even for less experienced installers. Thanks to full network support, a built-in web server, and the dedicated DMSS mobile application, the user has constant access to live view and recordings from anywhere in the world. The robust construction, support for two hard drives with a total capacity of up to 32 TB, and a 3-year manufacturer's warranty confirm the high reliability of the device in demanding working conditions.
Specification
Standard
AHD, HD-CVI, HD-TVI, CVBS, IP
Video inputs
16 pcs BNC
Video outputs
1 pc HDMI 4K, 1 pc VGA, SPOT function configuration possible
Audio inputs/outputs
1 pc CINCH input, 1 pc CINCH output, audio support via coaxial cable (HD-CVI only)
Compression method
AI Coding, Smart H.265+, H.265, Smart H.264+, H.264
Recording resolutions
Up to 8 Mpx (4K) for AHD/CVI/TVI/IP, support for 4K-N, 6 Mpx, 5 Mpx, 4 Mpx, 3 Mpx, 1080p, 720p, 960H
Supported drives
2 x 16 TB SATA
Network functions
Full network support, remote copying, built-in web server, support for up to 128 online users
Mobile access
DMSS application (Android/iOS), access via P2P cloud
Intelligent analysis
Line crossing, warning zone, human/vehicle classification, AcuPick, face recognition, SMD PLUS
Software
The device has a built-in operating system with a graphical interface managed via a web browser or locally with a mouse. The DMSS mobile application offers full support for live view, playback of recordings, configuration of push notifications for alarm events, and remote control of PTZ cameras. The system supports advanced AI algorithms that allow for filtering false alarms, searching a face database (up to 10,000 photos), and fast location of objects using AcuPick technology, which significantly increases monitoring efficiency.
PTZ control
IP Speed Dome cameras, coax PTZ HD-CVI, RS-485 (PELCO-D/P)
Power supply
12V DC / 5A (power adapter included)
Operating temperature
-10°C to 55°C
Contents
1x XVR5216AN-4KL-I3/T Recorder
1x 12V/5A Power adapter
1x Computer mouse
User manual
Dimensions, Weight
Product dimensions: 290 x 375 x 53 mm (D x W x H)
Packaging dimensions: 350 x 425 x 138 mm (D x W x H)
Product weight: 1680 g
Weight with packaging: 3040 g
