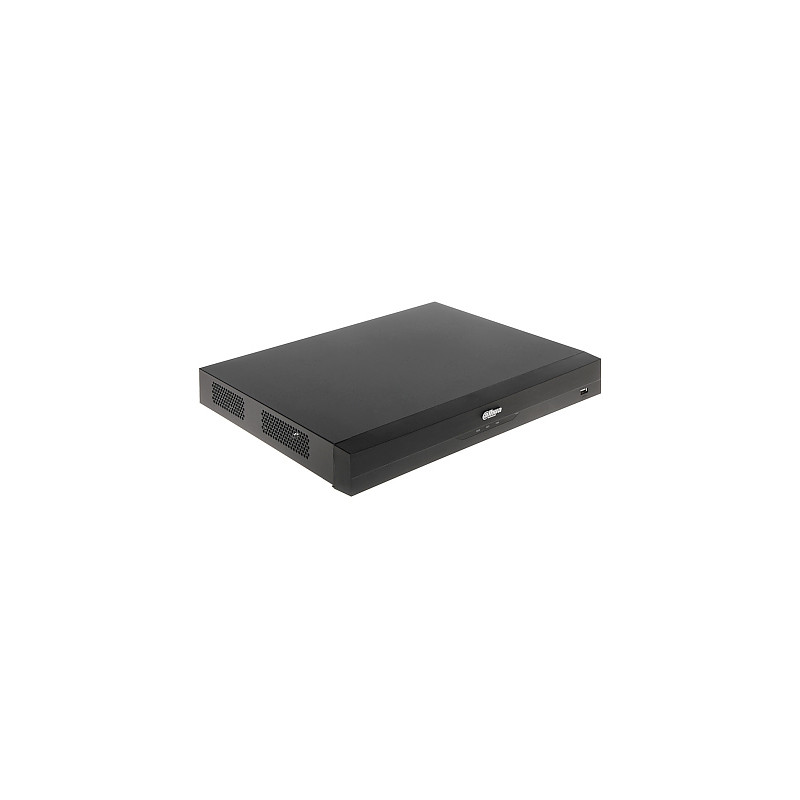

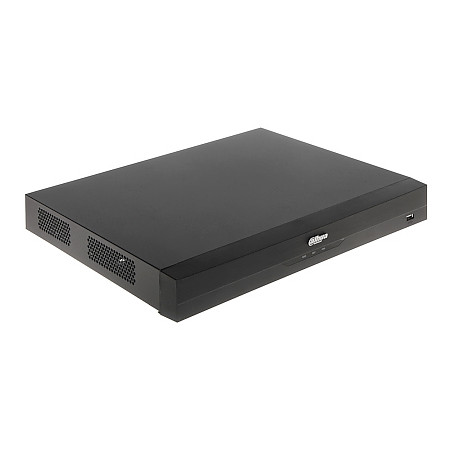

16-channel hybrid AHD CVI TVI CVBS IP 4K-N recorder DAHUA XVR5216A-4KL-I3
zł6,191.82
Tax included
The XVR5216A-4KL-I3 digital recorder is an advanced, 16-channel hybrid device designed for professional video surveillance systems. It supports a wide range of signal transmission standards, including AHD, HD-CVI, HD-TVI, CVBS, and IP cameras, making it an extremely versatile solution for upgrading existing analog installations and building new high-resolution systems. The device supports resolutions up to 4K, ensuring crystal-clear images and the detail necessary for modern surveillance.
A key advantage of the recorder is its integration with advanced artificial intelligence (AI) features, such as SMD Plus, which effectively classifies objects (humans, vehicles), minimizing the number of false alarms. The device also offers advanced face recognition features, support for face databases, and intelligent video analysis (IVS), including tripwire or people counting. The intuitive menu makes configuration simple even for novice users.
The recorder has a built-in web server, supports remote access via the cloud (P2P), and the dedicated DMSS mobile application, which allows for live viewing and playback of recordings from anywhere in the world. Thanks to the support for two SATA drives with a capacity of up to 16 TB each, the device ensures long data archiving times. A solid construction, high-performance H.265+ compression, and a rich set of features make it an ideal choice for demanding industrial, commercial, and private installations.
16-channel hybrid AHD CVI TVI CVBS IP 4K-N recorder
Model: DAHUA XVR5216A-4KL-I3
EAN: 6931240049815 SKU: 931049810
- Support for 16 analog channels (AHD/CVI/TVI/CVBS) + additional IP channels
- Support for 4K (8 Mpx) resolution
- Advanced AI analytics: SMD Plus, face recognition, object classification
- H.265+ video compression for disk space savings
- Support for two SATA hard drives up to 16 TB each
- Remote access via P2P cloud and DMSS mobile application
- Intelligent Video System (IVS): tripwire, intrusion, people counting
- Compatibility with Dahua IoT systems
- Audio support over coaxial cable (for HD-CVI)
Description
The XVR5216A-4KL-I3 digital recorder is an advanced, 16-channel hybrid device designed for professional video surveillance systems. It supports a wide range of signal transmission standards, including AHD, HD-CVI, HD-TVI, CVBS, and IP cameras, making it an extremely versatile solution for upgrading existing analog installations and building new high-resolution systems. The device supports resolutions up to 4K, ensuring crystal-clear images and the detail necessary for modern surveillance.
A key advantage of the recorder is its integration with advanced artificial intelligence (AI) features, such as SMD Plus, which effectively classifies objects (humans, vehicles), minimizing the number of false alarms. The device also offers advanced face recognition features, support for face databases, and intelligent video analysis (IVS), including tripwire or people counting. The intuitive menu makes configuration simple even for novice users.
The recorder has a built-in web server, supports remote access via the cloud (P2P), and the dedicated DMSS mobile application, which allows for live viewing and playback of recordings from anywhere in the world. Thanks to the support for two SATA drives with a capacity of up to 16 TB each, the device ensures long data archiving times. A solid construction, high-performance H.265+ compression, and a rich set of features make it an ideal choice for demanding industrial, commercial, and private installations.
Specification
Standard
AHD, HD-CVI, HD-TVI, CVBS, TCP/IP
Video inputs
16 pcs BNC
Video outputs
1x HDMI 4K, 1x VGA, SPOT function configuration possible
Audio inputs/outputs
4x CINCH input, 1x CINCH output, audio support over coax (HD-CVI)
Image compression
H.265+, H.265, H.264+, H.264
Supported drives
2x SATA up to 16 TB each
AI functions
SMD Plus, human and vehicle classification, face recognition (up to 10 databases, 20,000 photos)
Intelligent analysis
Tripwire, warning zone, abandoned/missing object, people/vehicle counting
Software
The device has a built-in web server and works with the free DMSS mobile application (Android/iOS). The DMSS application enables remote live image viewing, playback of archive recordings, receiving push notifications about alarm events, and remote configuration of recorder parameters. The system supports cloud access (P2P), which eliminates the need for a public IP address. The user interface is clear and intuitive, designed for easy operation by both professionals and novice users.
Network interface
Full network support, built-in web server, support for up to 128 online users
Alarm inputs/outputs
16 inputs / 3 outputs
PTZ control
IP Speed Dome cameras, Coax PTZ HD-CVI, RS-485 (PELCO-D/P)
Power supply
12V DC / 5A (power adapter included)
Operating temperature
-10°C to 55°C
Contents
1x XVR5216A-4KL-I3 recorder
1x 12V/5A power adapter
1x Computer mouse
User manual
Dimensions, Weight
Product dimensions: 287 x 375 x 53 mm (D x W x H)
Package dimensions: 350 x 450 x 150 mm (D x W x H)
Product weight: 1800 g
Weight with packaging: 2500 g
