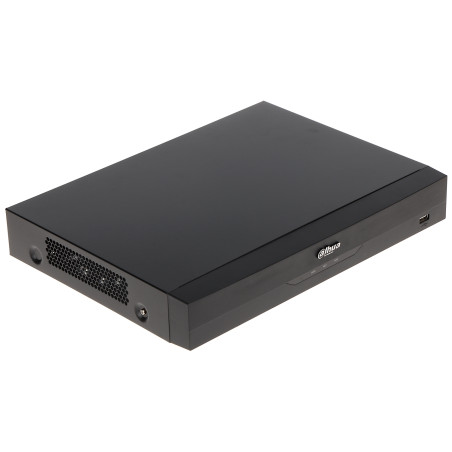

4 Channel Hybrid Recorder AHD HD-CVI HD-TVI CVBS IP XVR5104HE-I3 Dahua XVR5104HE-I3
zł1,542.42
Tax included
The XVR5104HE-I3 digital recorder is an advanced hybrid device designed for professional video surveillance systems. It supports a wide range of signal transmission standards, including AHD, HD-CVI, HD-TVI, CVBS, and IP cameras, making it an extremely versatile solution for both modernized and new CCTV installations. The device offers high performance thanks to the use of modern image compression algorithms such as AI Coding, H.265+, and H.265, which allows for significant hard drive space savings while maintaining excellent recording quality.
One of the key advantages of this model is its built-in artificial intelligence (AI), which supports functions such as SMD PLUS (object classification: human/vehicle), advanced face recognition, and archive searching based on face images. This allows the user to instantly find events of interest, significantly increasing the facility's security level. The recorder features an intuitive menu that allows for easy configuration even for less experienced users. The device supports remote network access, including via P2P cloud, which allows for live viewing and playback of recordings from anywhere in the world using the free DMSS mobile app for Android and iOS systems. A robust design, support for SATA drives up to 6TB, and a rich set of alarm functions make the XVR5104HE-I3 an ideal choice for homes, offices, and small to medium-sized enterprises requiring a reliable monitoring system.
4 Channel Hybrid Recorder AHD HD-CVI HD-TVI CVBS IP XVR5104HE-I3
Model: Dahua XVR5104HE-I3
EAN: 6931240062050 SKU: 931062055
- Supported standards: AHD, HD-CVI, HD-TVI, CVBS, IP
- AI support: SMD PLUS, human and vehicle classification
- Advanced face recognition and search
- Video compression: AI Coding, H.265+, H.265, H.264+, H.264
- Remote access via P2P cloud (DMSS app)
- Support for SATA hard drives up to 6TB
- Built-in web server for 128 online users
- Alarm inputs/outputs: 8/3
Description
The XVR5104HE-I3 digital recorder is an advanced hybrid device designed for professional video surveillance systems. It supports a wide range of signal transmission standards, including AHD, HD-CVI, HD-TVI, CVBS, and IP cameras, making it an extremely versatile solution for both modernized and new CCTV installations. The device offers high performance thanks to the use of modern image compression algorithms such as AI Coding, H.265+, and H.265, which allows for significant hard drive space savings while maintaining excellent recording quality.
One of the key advantages of this model is its built-in artificial intelligence (AI), which supports functions such as SMD PLUS (object classification: human/vehicle), advanced face recognition, and archive searching based on face images. This allows the user to instantly find events of interest, significantly increasing the facility's security level. The recorder features an intuitive menu that allows for easy configuration even for less experienced users. The device supports remote network access, including via P2P cloud, which allows for live viewing and playback of recordings from anywhere in the world using the free DMSS mobile app for Android and iOS systems. A robust design, support for SATA drives up to 6TB, and a rich set of alarm functions make the XVR5104HE-I3 an ideal choice for homes, offices, and small to medium-sized enterprises requiring a reliable monitoring system.
Specification
Standard
AHD, HD-CVI, HD-TVI, CVBS, TCP/IP
Video inputs
4 pcs BNC
Video outputs
1 pc HDMI, 1 pc VGA
Audio inputs/outputs
4 pcs CINCH (inputs), 1 pc CINCH (output). Audio support via coaxial cable for HD-CVI.
Compression method
AI Coding / H.265+ / H.265 / H.264+ / H.264
Recording resolutions
AHD/CVI/TVI: 5M-N, 4M-N, 1080p, 1080N, 720p. CVBS: 960H. IP: up to 6 Mpx.
Operating modes
4 x AHD/CVI/TVI/CVBS/IP + 2 x IP
Disk support
1 x SATA up to 6 TB
AI functions
SMD PLUS (human and vehicle classification), face recognition (up to 10 databases, 10,000 images), face search in archive.
Software
The device works with the free DMSS mobile application (Android/iOS), which enables remote live view, playback of recordings from the archive, receiving push notifications about alarm events, and configuration of basic recorder parameters. The application uses the P2P cloud, which eliminates the need for a public IP address. Additionally, the recorder has a built-in web server that allows for full system management from a web browser, supporting up to 128 users simultaneously. The software also supports advanced analytical functions such as line crossing, intrusion, and intelligent face search, allowing for quick identification of events in the monitoring system.
Alarm inputs/outputs
8 / 3
Power supply
12V DC / 1.5A (power adapter included)
Operating temperature
-10°C ... 55°C
Warranty
3 years
Contents
1x XVR5104HE-I3 Recorder
1x 12V/1.5A Power adapter
1x Computer mouse
User manual
Dimensions, Weight
Product dimensions: 257 x 325 x 55 mm (D x W x H)
Package dimensions: 305 x 370 x 117 mm (D x W x H)
Product weight: 1180 g
Weight with packaging: 1840 g
