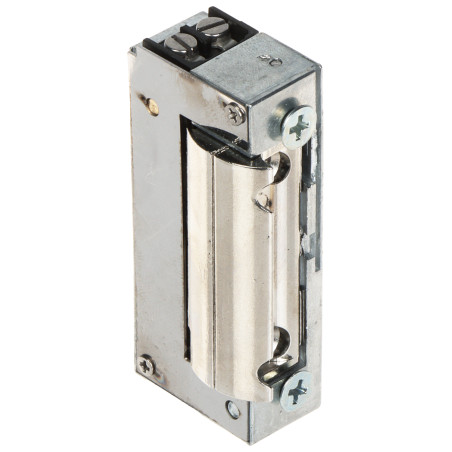

Reversible electric strike for spring-loaded doors 16.2mm Hartte XS12R-B
zł200.11
Tax included
The Hartte XS series electric strike is an advanced solution dedicated to access control systems, characterized by an exceptionally narrow design with a width of only 16.2 mm. Thanks to such compact dimensions, the device is ideal for installation in narrow aluminum and steel profiles, as well as door frames where space is limited. The XS12R-B model has been specifically designed to work with spring-loaded doors, achieved through the use of a reinforced spring that ensures reliable operation even under high pressure on the strike latch.
The electric strike construction is fully symmetrical, making it a universal product that works perfectly for both left and right-handed doors. The user gains the ability to precisely adjust the latch clearance within a range of 3.5 mm, allowing for a perfect fit to a specific door model. The strike features a radial shape, meaning it does not extend beyond the electric strike outline during opening, which significantly facilitates installation and requires a smaller cutout in the door frame.
The device operates in reversible mode (NO - Normally Open), meaning it remains open in the absence of supply voltage and closes when power is applied. This is a key feature in fire safety and evacuation systems. High build quality is confirmed by a durability of 200,000 opening cycles, guaranteeing long-term and trouble-free operation in demanding service conditions.
Reversible electric strike for spring-loaded doors 16.2mm
Model: Hartte XS12R-B
EAN: 6931240051443 SKU: 931051444
- Narrow 16.2 mm profile
- Reversible operation mode (NO)
- Reinforced spring for spring-loaded doors
- Symmetrical housing (left/right doors)
- 3.5 mm latch adjustment
- Radial strike shape
- Durability 200,000 cycles
Description
The Hartte XS series electric strike is an advanced solution dedicated to access control systems, characterized by an exceptionally narrow design with a width of only 16.2 mm. Thanks to such compact dimensions, the device is ideal for installation in narrow aluminum and steel profiles, as well as door frames where space is limited. The XS12R-B model has been specifically designed to work with spring-loaded doors, achieved through the use of a reinforced spring that ensures reliable operation even under high pressure on the strike latch.
The electric strike construction is fully symmetrical, making it a universal product that works perfectly for both left and right-handed doors. The user gains the ability to precisely adjust the latch clearance within a range of 3.5 mm, allowing for a perfect fit to a specific door model. The strike features a radial shape, meaning it does not extend beyond the electric strike outline during opening, which significantly facilitates installation and requires a smaller cutout in the door frame.
The device operates in reversible mode (NO - Normally Open), meaning it remains open in the absence of supply voltage and closes when power is applied. This is a key feature in fire safety and evacuation systems. High build quality is confirmed by a durability of 200,000 opening cycles, guaranteeing long-term and trouble-free operation in demanding service conditions.
Specification
Rated voltage
10 ... 14 V AC/DC
Current consumption
480 mA @ 12V AC / 680 mA @ 12V DC
Application
Right door / left door - dedicated to spring-loaded doors
Latch lock
No
Memory function
No
Reversible operation
Yes (open in the absence of voltage)
Latch adjustment
3.5 mm
Permissible door load
3000 N
Permissible operating time
Continuous operation
Resistance
17.6 Ω
Number of opening cycles
200,000
Housing
Symmetrical, narrow 16.2 mm profile
Strike shape
Radial (does not extend beyond the lock outline during opening)
Warranty
2 years
Contents
1x Electric strike XS12R-B
Dimensions, Weight
Product dimensions: 67 x 16 x 28 mm (D x W x H)
Packaging dimensions: 28 x 97 x 35 mm (D x W x H)
Product weight: 136 g
Weight with packaging: 140 g
