- New
5-port 10/100 Base-T PoE Switch with Long Range support and daisy-chain power ATTE XPOE-6-11-S2
zł391.50
Tax included
The XPOE-6-11-S2 switch is an advanced network device designed for professional IP monitoring systems. The device enables powering of IP cameras operating in the IEEE 802.3af/at standard, offering 5 ports with Power over Ethernet (PoE) technology support. A key advantage of this model is the LONG RANGE operating mode, which allows for a significant increase in power and data transmission range for LAN ports 1 to 4, reaching a distance of up to 280 meters while limiting bandwidth to 10 Mbps. This is an ideal solution in situations where cameras are located far from the signal distribution point. The device housing features a high IP56 ingress protection rating, which ensures protection against harsh weather conditions, allowing for installation in areas exposed to moisture and dust. The switch supports daisy-chain power, meaning one switch can power subsequent devices, which significantly simplifies network architecture in extensive CCTV installations. Thanks to the wide input voltage range (10-56V DC), the device is extremely flexible in the selection of power sources. A robust construction, cable glands, and the ability to independently turn PoE power on/off for each port make it a reliable element of network infrastructure.
5-port 10/100 Base-T PoE Switch with Long Range support and daisy-chain power

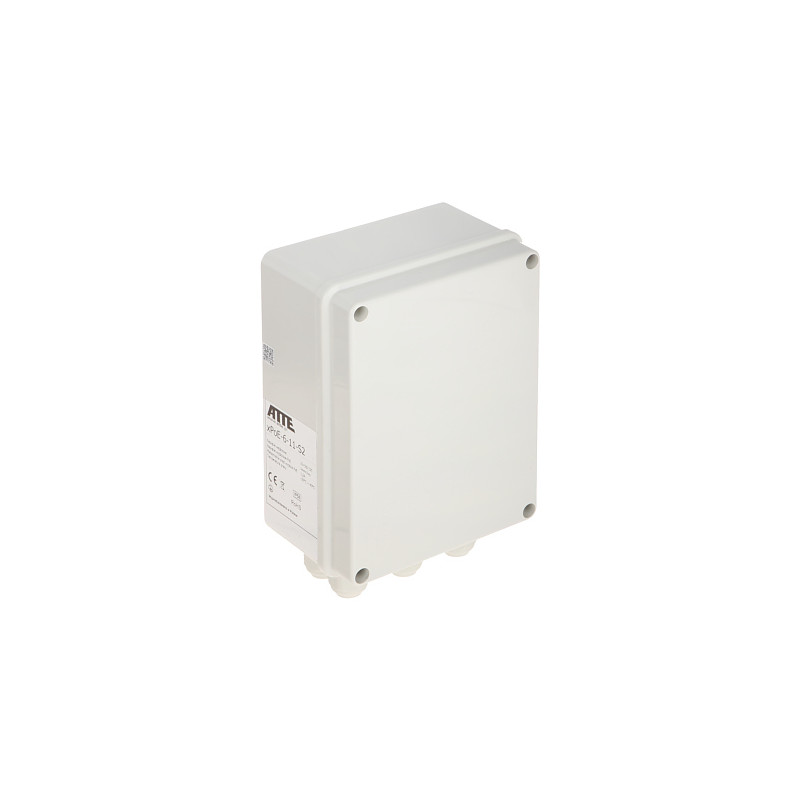

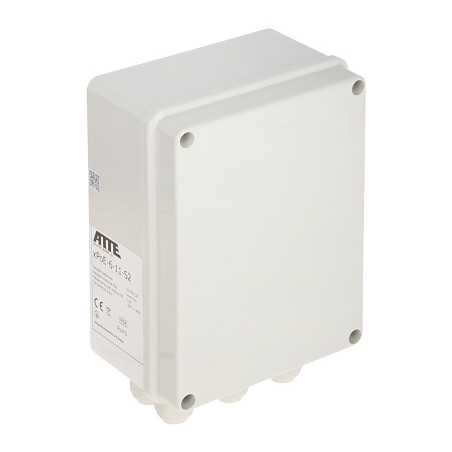

Model: ATTE XPOE-6-11-S2
EAN: 6931240043127 SKU: 931043123
- 5 PoE ports with 802.3af/at standard support
- Long Range mode: range up to 280m at 10 Mbps
- IP56 ingress protection rating
- Daisy-chain power (PoE IN/OUT)
- Wide input voltage range 10-56V DC
- Independent PoE power control for each port
- Equipped with 6 M16 cable glands
Description
The XPOE-6-11-S2 switch is an advanced network device designed for professional IP monitoring systems. The device enables powering of IP cameras operating in the IEEE 802.3af/at standard, offering 5 ports with Power over Ethernet (PoE) technology support. A key advantage of this model is the LONG RANGE operating mode, which allows for a significant increase in power and data transmission range for LAN ports 1 to 4, reaching a distance of up to 280 meters while limiting bandwidth to 10 Mbps. This is an ideal solution in situations where cameras are located far from the signal distribution point. The device housing features a high IP56 ingress protection rating, which ensures protection against harsh weather conditions, allowing for installation in areas exposed to moisture and dust. The switch supports daisy-chain power, meaning one switch can power subsequent devices, which significantly simplifies network architecture in extensive CCTV installations. Thanks to the wide input voltage range (10-56V DC), the device is extremely flexible in the selection of power sources. A robust construction, cable glands, and the ability to independently turn PoE power on/off for each port make it a reliable element of network infrastructure.
Specification
LAN ports
1 x RJ45 10/100 Base-T (Uplink), 5 x RJ45 10/100 Base-T with PoE 802.3af/at / Passive PoE support
Management
None
LED indicators
Power, LAN
Transmission speed
10/100 Mbps (1 Uplink port + 5 PoE ports)
Maximum output power
40W (Passive PoE ports 1-4), 70W (Passive PoE port 5), 30W (PoE 802.3af/at ports 1-5)
Maximum total power
50W
Operating modes
Standard: 100m @ 10/100 Mbps (ports 1-6); Long Range: 280m @ 10 Mbps (ports 1-4), 100m @ 10/100 Mbps (ports 5-6)
Selected features
Independent PoE on/off for ports 1-5, wide input voltage range, daisy-chain power, output voltage Vout = Vin
Ingress protection rating
IP56 (housing with 6 M16 glands)
Power supply
10-56V DC (screw terminal or Passive PoE)
Operating temperature
-25°C to 50°C
Warranty
2 years
Manufacturer / Brand
ATTE
Software
The device is an 'unmanaged' type, which means it does not have a built-in web interface, mobile application, or cloud support. It operates at the second layer of the OSI model, automatically detecting devices connected to PoE ports and negotiating the power standard (802.3af/at or Passive). Configuration of operating modes (e.g., Long Range) is performed via hardware using physical switches on the device's motherboard, which ensures high operational stability without the need for software updates or network management.
Contents
1x PoE Switch XPOE-6-11-S2
User manual
Dimensions, Weight
Product dimensions: 77 x 158 x 118 mm (D x W x H)
Package dimensions: 90 x 190 x 150 mm (D x W x H)
Product weight: 340 g
Weight with packaging: 418 g
