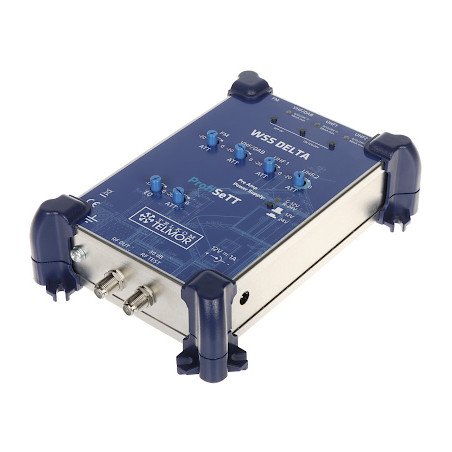

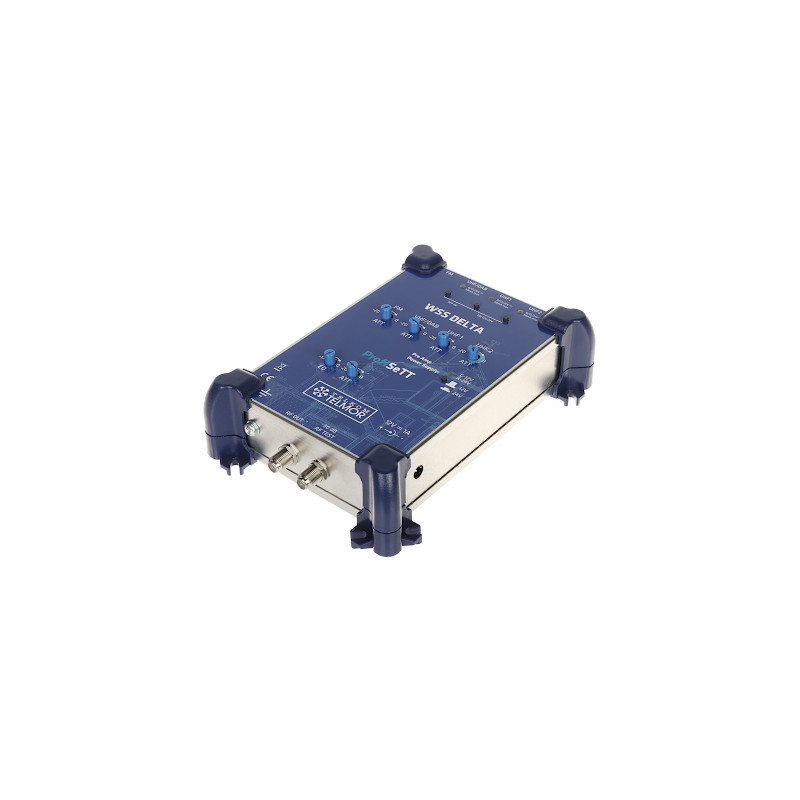

TELMOR WSS-DELTA Multi-band Amplifier TELMOR WSS-DELTA
zł496.97
Tax included
WSS-DELTA is a professional band amplifier designed for advanced terrestrial television installations. The device enables effective summing of signals from two UHF antennas, one VHF/DAB antenna, and one FM antenna. Thanks to its advanced design, the amplifier is perfect for systems requiring signal reception from different directions, ensuring high transmission quality. One of the key advantages of the device is the built-in 5G Protected technology, which effectively eliminates interference from the mobile telephony band, which is essential in modern DVB-T2 installations. The amplifier has the ability to power antenna preamplifiers directly from the device inputs, which eliminates the need for additional power injectors. The user has smooth gain control and signal correction at their disposal, which allows for precise tuning of the installation to reception conditions. The output signal is characterized by a high level and can be distributed passively over long distances or serve as a signal source for a multiswitch. The solid housing ensures a high level of shielding, which protects the signal from the influence of external factors. A dedicated power supply is included in the set, making the device ready for operation immediately after taking it out of the packaging.
TELMOR WSS-DELTA Multi-band Amplifier
Model: TELMOR WSS-DELTA
EAN: 6931240028315 SKU: 931028316
- ProfiSETT product series
- DVB-T, DVB-T2, DAB, DAB+ compliant
- Dual UHF input for installations requiring reception from different directions
- 5G Protected technology
- Smooth gain control
- High isolation between inputs > 35 dB
- Gain and slope control at the output
- High shielding level
- -30dB test point
Description
WSS-DELTA is a professional band amplifier designed for advanced terrestrial television installations. The device enables effective summing of signals from two UHF antennas, one VHF/DAB antenna, and one FM antenna. Thanks to its advanced design, the amplifier is perfect for systems requiring signal reception from different directions, ensuring high transmission quality. One of the key advantages of the device is the built-in 5G Protected technology, which effectively eliminates interference from the mobile telephony band, which is essential in modern DVB-T2 installations. The amplifier has the ability to power antenna preamplifiers directly from the device inputs, which eliminates the need for additional power injectors. The user has smooth gain control and signal correction at their disposal, which allows for precise tuning of the installation to reception conditions. The output signal is characterized by a high level and can be distributed passively over long distances or serve as a signal source for a multiswitch. The solid housing ensures a high level of shielding, which protects the signal from the influence of external factors. A dedicated power supply is included in the set, making the device ready for operation immediately after taking it out of the packaging.
Specification
Frequency range
87 MHz ... 112 MHz - FM, 170 MHz ... 240 MHz - VHF / DAB, 470 MHz ... 694 MHz - UHF1, UHF2
Gain
20 dB @ FM, 25 dB @ VHF / DAB, 35 dB @ UHF1, UHF2
Number of inputs/outputs
4 / 1 + 1 (test, -30dB)
Preamplifier power supply
12 / 24 V DC : 50 mA / VHF/DAB, UHF1, UHF2 input
Gain control
0 dB ... 20 dB (for a single path), 0 dB ... 20 dB (summed signal)
Cable attenuation correction
0 dB ... 16 dB
Maximum output level DIN45004B
115 dBµV
Return loss
> 10 dB
Noise figure
< 7 dB
Selected features
ProfiSETT series, DVB-T/T2/DAB+ compliant, 5G Protected, high input isolation, test point
Power supply
12 V DC / 1.2 A (power supply included)
Power consumption
14.4 W (max)
Operating temperature
0 °C ... 50 °C
Warranty
2 years
Contents
1x WSS-DELTA Amplifier
1x Power supply
Dimensions, Weight
Product dimensions: 52 x 190 x 135 mm (D x W x H)
Packaging dimensions: 65 x 295 x 170 mm (D x W x H)
Product weight: 420 g
Weight with packaging: 664 g
