- New

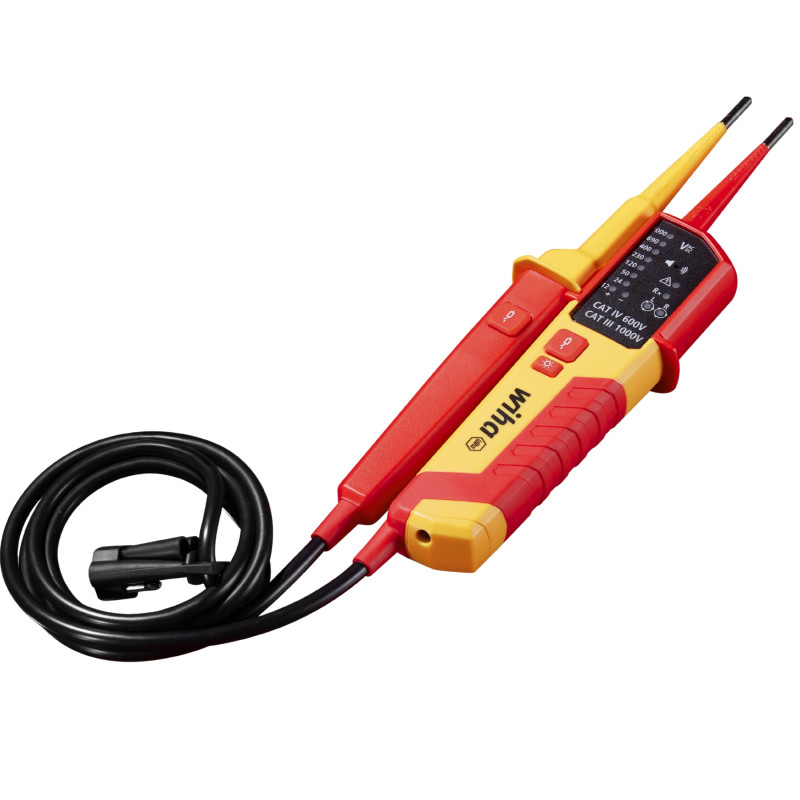

Voltage and phase sequence tester 12V-1000V AC / 1500V DC with flashlight and RCD test Wiha WH-VOLT-TEST/45216
zł538.36
Tax included
The Wiha voltage and continuity tester is a professional tool designed for maximum safety and efficiency during electrical work. The device allows for quick and precise verification of voltage presence across a wide measurement range from 12 V to 1000 V AC and up to 1500 V DC. It is an indispensable companion for every electrician, supporting daily tasks such as continuity testing, optical rotary field checking, single-pole testing, and automatic polarity detection. Measurement results are clearly presented on an LED display, and a built-in audible signal provides additional information about current flow during continuity tests. One of the key advantages of this model is the integrated spacer, which allows for convenient one-handed operation when checking electrical sockets. The built-in flashlight function ensures excellent visibility even in poorly lit workspaces. The tester also features an RCD check function by connecting a load, which is performed by simultaneously pressing buttons on both probe handles. Thanks to compliance with measurement categories CAT III up to 1000 V and CAT IV up to 600 V, the device guarantees maximum safety when working on building installations and low-voltage energy sources.
Voltage and phase sequence tester 12V-1000V AC / 1500V DC with flashlight and RCD test
Model: Wiha WH-VOLT-TEST/45216
EAN: 6931240097779 SKU: 931097779
- AC voltage measurement: 12V - 1000V
- DC voltage measurement: 12V - 1500V
- Phase sequence detection
- DC voltage polarity detection
- Continuity testing (0 - 500 kΩ)
- Residual Current Device (RCD) test
- Built-in LED flashlight
- Audible signal
- Overvoltage indicator
- Single-pole voltage tester function
- Measurement category CAT III 1000V / CAT IV 600V
Description
The Wiha voltage and continuity tester is a professional tool designed for maximum safety and efficiency during electrical work. The device allows for quick and precise verification of voltage presence across a wide measurement range from 12 V to 1000 V AC and up to 1500 V DC. It is an indispensable companion for every electrician, supporting daily tasks such as continuity testing, optical rotary field checking, single-pole testing, and automatic polarity detection. Measurement results are clearly presented on an LED display, and a built-in audible signal provides additional information about current flow during continuity tests. One of the key advantages of this model is the integrated spacer, which allows for convenient one-handed operation when checking electrical sockets. The built-in flashlight function ensures excellent visibility even in poorly lit workspaces. The tester also features an RCD check function by connecting a load, which is performed by simultaneously pressing buttons on both probe handles. Thanks to compliance with measurement categories CAT III up to 1000 V and CAT IV up to 600 V, the device guarantees maximum safety when working on building installations and low-voltage energy sources.
Specification
Display
LED (no LCD display)
DC voltage measurement
12V, 24V, 50V, 120V, 230V, 400V, 690V, 1000V, 1500V
AC voltage measurement
12V, 24V, 50V, 120V, 230V, 400V, 690V, 1000V
Phase sequence detection
Yes
DC polarity detection
Yes
Continuity signaling
0 ... 500 kΩ, audible signal
RCD test
Yes, residual current device test
Additional functions
Built-in flashlight, overvoltage indicator, single-pole measurement
Measurement category
CAT III 1000V / CAT IV 600V
Power supply
2 x 1.5V battery, type AAA/LR03 (included)
Warranty
2 years
Manufacturer
WIHA
Contents
1x Voltage and phase sequence tester WH-VOLT-TEST/45216
2x AAA battery
Dimensions, Weight
Product dimensions: 35 x 75 x 280 mm (D x W x H)
Packaging dimensions: 55 x 111 x 285 mm (D x W x H)
Product weight: 200 g
Weight with packaging: 335 g
Zum Download
931097779
3 Items
Specific References
- ean13
- 6931240097779
Comments (0)
No customer reviews for the moment.
The Wiha voltage and continuity tester is a professional tool designed for maximum safety and efficiency during electrical work. The device allows for quick and precise verification of voltage presence across a wide measurement range from 12 V to 1000 V AC and up to 1500 V DC. It is an indispensable companion for every electrician, supporting daily tasks such as continuity testing, optical rotary field checking, single-pole testing, and automatic polarity detection. Measurement results are clearly presented on an LED display, and a built-in audible signal provides additional information about current flow during continuity tests. One of the key advantages of this model is the integrated spacer, which allows for convenient one-handed operation when checking electrical sockets. The built-in flashlight function ensures excellent visibility even in poorly lit workspaces. The tester also features an RCD check function by connecting a load, which is performed by simultaneously pressing buttons on both probe handles. Thanks to compliance with measurement categories CAT III up to 1000 V and CAT IV up to 600 V, the device guarantees maximum safety when working on building installations and low-voltage energy sources.
