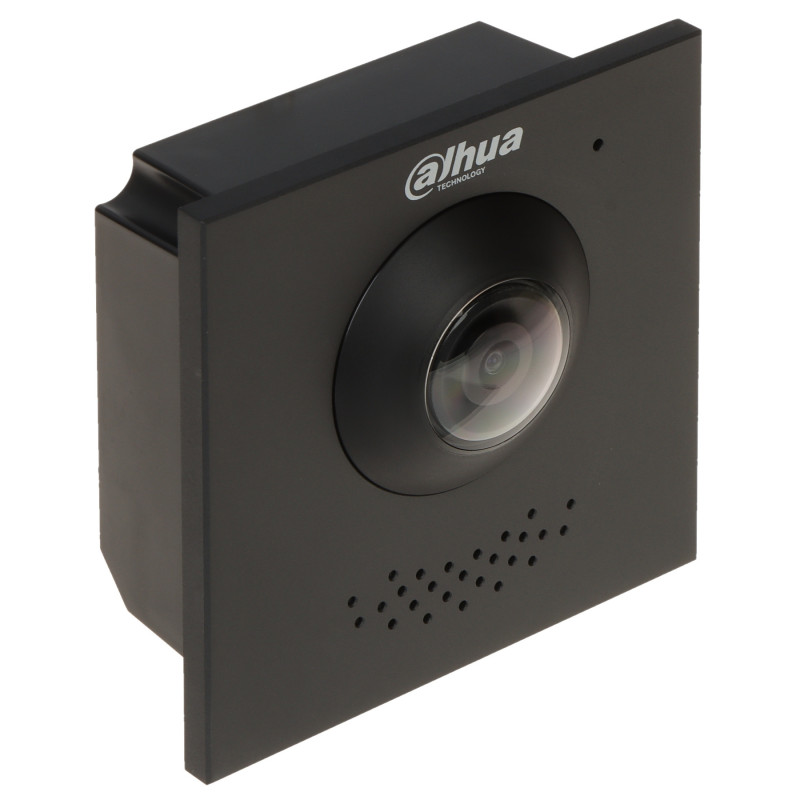

IP Video Intercom with 2 Mpx CMOS sensor, 168.6° viewing angle, aluminum housing IP65 IK07 DAHUA VTO4201FB-P
zł1,485.84
Tax included
The VTO4201FB-P IP video intercom is an advanced access control solution designed for durability and high image quality. The device is equipped with a modern 2 Mpx CMOS sensor that provides a clear Full HD image. Thanks to a wide viewing angle of 168.6°, the panel allows for monitoring a large area in front of the entrance, which significantly increases user safety. The housing, made of high-quality aluminum, features an IP65 ingress protection rating and IK07 mechanical resistance, making it an ideal choice for outdoor installation, even in harsh weather conditions.
The device's advantages include advanced two-way communication with noise and echo reduction, ensuring clear sound during conversations. The WDR 120 dB function allows for a clear image even in strong backlight, and the automatic ICR filter ensures excellent night visibility. The device supports modern H.265 and H.264 compression standards, which optimizes bandwidth usage and storage space on the Micro SD memory card (up to 256 GB). Thanks to P2P cloud support and the dedicated DMSS application, the user has constant access to live view and remote lock control using an Android or iOS smartphone. This is a reliable device that combines elegance, durability, and advanced network features, serving as a key element of a modern video intercom system.
IP Video Intercom with 2 Mpx CMOS sensor, 168.6° viewing angle, aluminum housing IP65 IK07
Model: DAHUA VTO4201FB-P
EAN: 6931240028971 SKU: 931028977
- 2 Mpx CMOS sensor
- Wide 168.6° viewing angle
- WDR 120 dB for excellent image quality
- Aluminum housing with IP65 ingress protection and IK07 impact resistance
- Micro SD card support up to 256 GB
- Remote access via DMSS app (Android/iOS) and P2P cloud
- Two-way communication with noise and echo reduction
- PoE or 12V DC power supply
Description
The VTO4201FB-P IP video intercom is an advanced access control solution designed for durability and high image quality. The device is equipped with a modern 2 Mpx CMOS sensor that provides a clear Full HD image. Thanks to a wide viewing angle of 168.6°, the panel allows for monitoring a large area in front of the entrance, which significantly increases user safety. The housing, made of high-quality aluminum, features an IP65 ingress protection rating and IK07 mechanical resistance, making it an ideal choice for outdoor installation, even in harsh weather conditions.
The device's advantages include advanced two-way communication with noise and echo reduction, ensuring clear sound during conversations. The WDR 120 dB function allows for a clear image even in strong backlight, and the automatic ICR filter ensures excellent night visibility. The device supports modern H.265 and H.264 compression standards, which optimizes bandwidth usage and storage space on the Micro SD memory card (up to 256 GB). Thanks to P2P cloud support and the dedicated DMSS application, the user has constant access to live view and remote lock control using an Android or iOS smartphone. This is a reliable device that combines elegance, durability, and advanced network features, serving as a key element of a modern video intercom system.
Specification
Sensor
1/2.9", 2 Mpx CMOS
Viewing angle
168.6°
Image compression method
H.265 / H.264
IR illuminator
Yes
Compatibility
DAHUA
Mobile phone access
Port: 37777 or cloud access (P2P); Android/iOS: Free DMSS application. The DMSS application enables full operation of the video intercom, including live image preview, conducting conversations with visitors, remote door opening, and viewing recordings saved on the memory card. The application interface is intuitive and allows for quick configuration of push notifications for events.
Selected features
Two-way communication, Noise and echo reduction, WDR - 120 dB, 3D-DNR, automatic ICR filter, Micro SD card support up to 256GB, RS-485 interface, Alarm output, 12V DC/600mA power output, Door status detection, Lock control, RJ-45 10/100 Mbps port, Tamper detection.
Power supply
PoE (802.3af/at), 12V DC / 2A
Power consumption
≤ 5 W
Housing
Aluminum
Ingress protection rating
IP65
Mechanical protection class
IK07
Operating temperature
-30 °C ... 60 °C
Supported languages
Polish, English
Contents
1x VTO4201FB-P Video Intercom
Dimensions, Weight
Product dimensions: 49 x 100 x 100 mm (D x W x H)
Package dimensions: 75 x 190 x 165 mm (D x W x H)
Product weight: 290 g
Weight with packaging: 470 g
