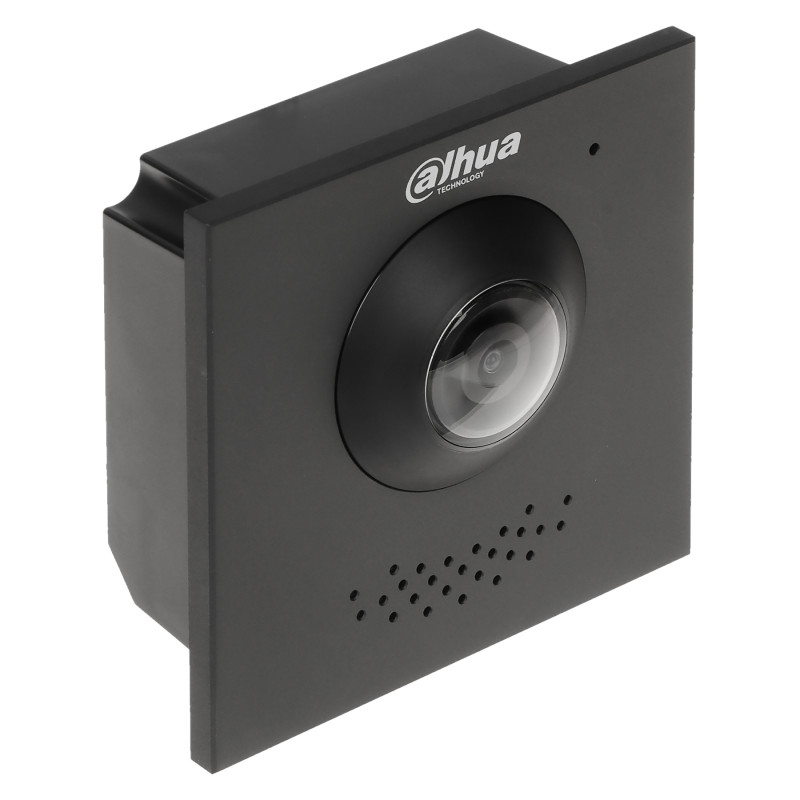

2 MP CMOS Video Intercom Outdoor Station with 168.6° Wide Angle and 120 dB WDR DAHUA VTO4103FB
zł1,846.23
Tax included
The Dahua VTO4103FB is an advanced outdoor video intercom station designed to provide the highest level of security and convenience in access control systems. The device is equipped with a high-class 2 MP CMOS sensor, which, combined with a fisheye lens, offers an impressive viewing angle of up to 168.6°. This gives the user a wide view of the entrance area, significantly increasing monitoring effectiveness. The use of 120 dB WDR technology allows for a clear image even in difficult lighting conditions, effectively eliminating overexposure and underexposure of the scene. Additionally, the 3D-DNR function provides digital noise reduction, resulting in a clean and stable image under various operating conditions.
The station offers two-way audio communication, enabling convenient conversation with visitors. The robust anodized aluminum housing features high mechanical resistance of IK07 class and IP65 ingress protection, ensuring reliable operation in harsh weather conditions. The device supports the modern 2-Wire Hybrid interface, which facilitates installation in existing systems. Among its numerous advantages are support for a lock, exit button, door status detection, and advanced tamper detection. It is an ideal solution for modern homes and commercial facilities where durability, aesthetics, and high functionality are essential.
2 MP CMOS Video Intercom Outdoor Station with 168.6° Wide Angle and 120 dB WDR
Model: DAHUA VTO4103FB
EAN: 6931240082379 SKU: 931082373
- 2 MP CMOS sensor with 168.6° wide viewing angle
- 120 dB WDR technology for excellent image quality in varying lighting
- 3D-DNR digital noise reduction
- Two-way audio communication with built-in microphone and speaker
- Robust anodized aluminum housing (IK07, IP65)
- Support for lock, exit button, and door status detection
- Tamper detection (detachment from surface)
- Power supply via 2-Wire Hybrid interface
Description
The Dahua VTO4103FB is an advanced outdoor video intercom station designed to provide the highest level of security and convenience in access control systems. The device is equipped with a high-class 2 MP CMOS sensor, which, combined with a fisheye lens, offers an impressive viewing angle of up to 168.6°. This gives the user a wide view of the entrance area, significantly increasing monitoring effectiveness. The use of 120 dB WDR technology allows for a clear image even in difficult lighting conditions, effectively eliminating overexposure and underexposure of the scene. Additionally, the 3D-DNR function provides digital noise reduction, resulting in a clean and stable image under various operating conditions.
The station offers two-way audio communication, enabling convenient conversation with visitors. The robust anodized aluminum housing features high mechanical resistance of IK07 class and IP65 ingress protection, ensuring reliable operation in harsh weather conditions. The device supports the modern 2-Wire Hybrid interface, which facilitates installation in existing systems. Among its numerous advantages are support for a lock, exit button, door status detection, and advanced tamper detection. It is an ideal solution for modern homes and commercial facilities where durability, aesthetics, and high functionality are essential.
Specification
Sensor
1/2.5", 2 Mpx CMOS. High-class sensor providing a detailed image in 2-megapixel resolution.
Viewing angle
168.6°. Wide-angle fisheye lens providing maximum field of view coverage in front of the entrance.
Built-in proximity reader
No
LED illuminator
No
IR illuminator
Yes. Automatic infrared illuminator enabling night operation.
Compatibility
DAHUA
Mobile phone access
Port: 37777 or cloud access (P2P). Android/iOS: Free DMSS application. The DMSS application allows for remote real-time camera view, conversations with people at the door, remote lock opening, and receiving push notifications about events. The application interface is intuitive and allows for full management of the video intercom system from a smartphone, ensuring security and control from anywhere in the world.
Selected features
Two-way communication, built-in microphone and speaker, noise and echo reduction, 120 dB WDR (Wide Dynamic Range), 3D-DNR (digital noise reduction), automatic ICR filter (day/night), RS-485 interface, alarm output, 12V DC/1A power output, exit button support, door status detection, lock control, tamper detection.
Power supply
2-Wire Hybrid interface
Power consumption
≤ 12 W
Housing
Aluminum alloy
Color
Black
Ingress protection class
IP65 (after additional sealing of the housing connection to the mounting surface)
Mechanical protection class
IK07 (mechanical impact resistance)
Operating temperature
-40 °C ... 60 °C
Supported languages
Polish, English
Warranty
3 years
Contents
1x VTO4103FB Video Intercom
Dimensions, Weight
Product dimensions: 47 x 100 x 100 mm (D x W x H)
Package dimensions: 90 x 145 x 135 mm (D x W x H)
Product weight: 310 g
Weight with packaging: 461 g
