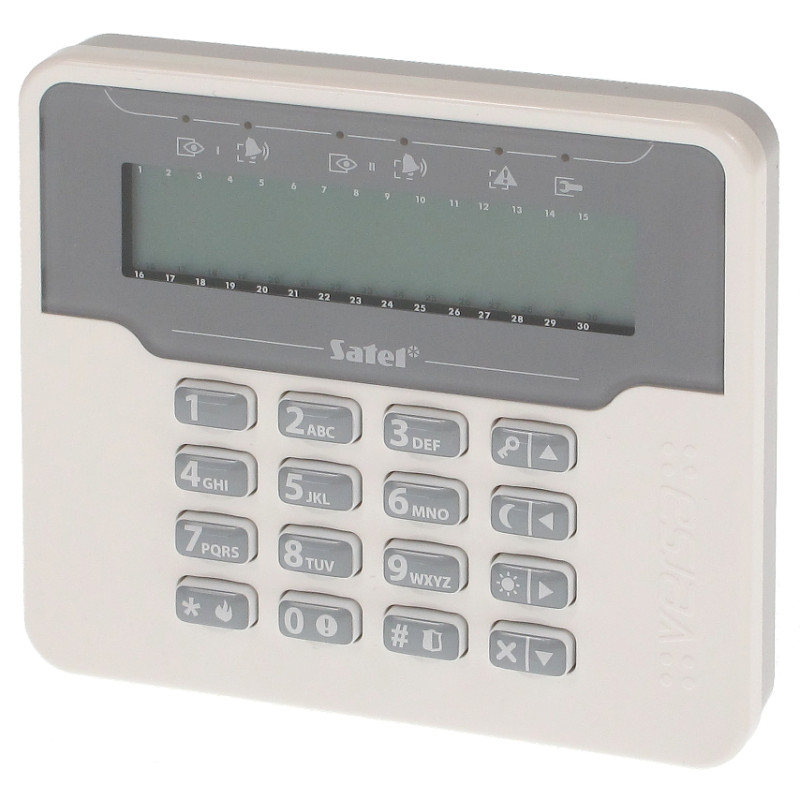

Alarm control panel keypad with LCD display SATEL VERSA-LCDM-WH
zł472.48
Tax included
The VERSA-LCDM-WH manipulator is an advanced interface device designed specifically for operating and programming VERSA series alarm control panels. Thanks to the use of a clear LCD display, the user receives access to transparent text messages, which significantly facilitates the management of even the most extensive alarm system functions. The device combines modern design with high functionality, ensuring comfortable daily operation.
The advantages of the device primarily include an intuitive interface that allows for quick arming and disarming of the system, as well as easy viewing of the event history. The keypad is equipped with backlit buttons, which guarantees convenient operation even in low-light conditions. LED indicators inform about the current operating status of the system, allowing for instant verification of the facility's security. Additionally, the manipulator offers the ability to quickly trigger alarms such as PANIC, FIRE, or MEDICAL directly from the keypad, which increases the level of user safety. A robust construction with a built-in tamper microswitch protects the device against unauthorized opening or attempts at destruction, ensuring reliability in every situation.
Alarm control panel keypad with LCD display
Model: SATEL VERSA-LCDM-WH
EAN: 6931240098882 SKU: 931098889
- Compatibility with VERSA series control panels
- LCD display with text messages
- Backlit keypad buttons
- LED status indicators
- Quick arming modes
- Alarms: PANIC, FIRE, MEDICAL
- Audible event signaling
- Tamper protection
Description
The VERSA-LCDM-WH manipulator is an advanced interface device designed specifically for operating and programming VERSA series alarm control panels. Thanks to the use of a clear LCD display, the user receives access to transparent text messages, which significantly facilitates the management of even the most extensive alarm system functions. The device combines modern design with high functionality, ensuring comfortable daily operation. The advantages of the device primarily include an intuitive interface that allows for quick arming and disarming of the system, as well as easy viewing of the event history. The keypad is equipped with backlit buttons, which guarantees convenient operation even in low-light conditions. LED indicators inform about the current operating status of the system, allowing for instant verification of the facility's security. Additionally, the manipulator offers the ability to quickly trigger alarms such as PANIC, FIRE, or MEDICAL directly from the keypad, which increases the level of user safety. A robust construction with a built-in tamper microswitch protects the device against unauthorized opening or attempts at destruction, ensuring reliability in every situation.
Specification
Compatibility
VERSA series alarm control panel
Display
Alphanumeric LCD with text messages
Backlighting
Backlit keypad buttons for better visibility at night
LED indicators
LED indicators displaying device and system operating status
Key functions
Quick activation of the selected arming mode using dedicated function keys
Alarms
Alarms: PANIC, FIRE, MEDICAL triggered directly from the keypad
Signaling
Audible signaling of selected system events and loss of communication with the control panel
Security
Microswitch detecting manipulator tampering (opening the enclosure)
Power supply
12V DC
Current consumption
Maximum 60 mA
Operating temperature
-10 °C to 55 °C
Warranty
2 years
Software
The manipulator works with the VERSA control panel software. The user interface is fully integrated with the control panel logic, enabling full system configuration, user management, event log viewing, and detector testing. The software provides an intuitive text menu that guides the user through the process of programming system parameters, such as entry/exit times, alarm line definitions, or home automation output control. Thanks to the built-in server in the control panel, the manipulator allows quick access to system diagnostics, which enables instant fault localization and remote operation of advanced security functions.
Manufacturer
SATEL
Contents
1x VERSA-LCDM-WH Keypad
1x User manual
Dimensions, Weight
Product dimensions: 22 x 139 x 124 mm (D x W x H)
Packaging dimensions: 35 x 145 x 135 mm (D x W x H)
Product weight: 240 g
Weight with packaging: 270 g
