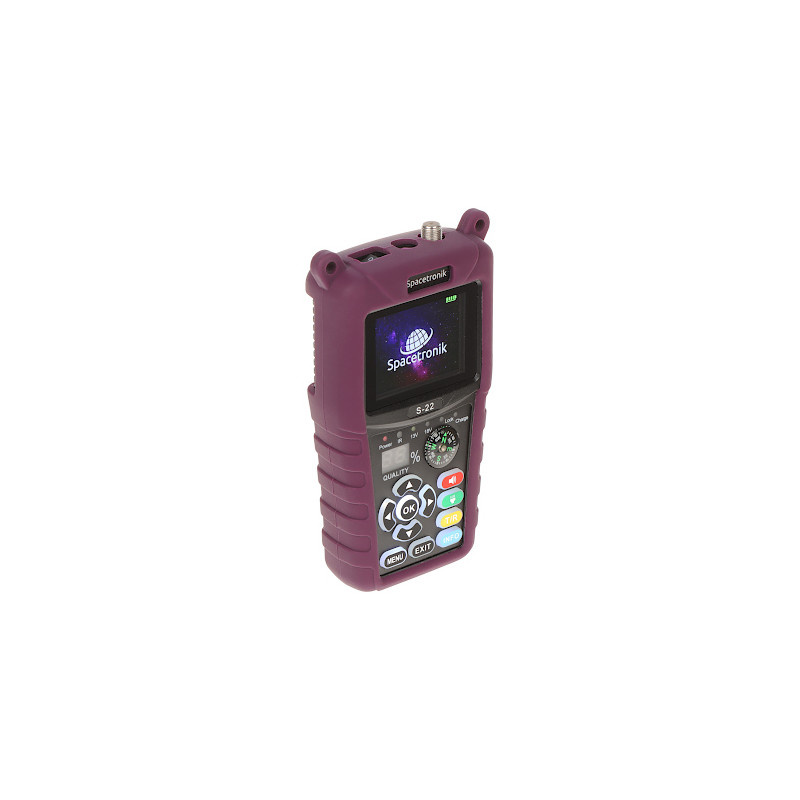

DVB-S/S2/S2X Satellite Meter with 2.4 inch TFT LCD display, signal measurement, spectrum, compass Spacetronik S-22
zł424.14
Tax included
The S-22 satellite meter is a professional tool designed for satellite television system installers. The device enables precise measurement of signals in DVB-S, DVB-S2, and modern DVB-S2X standards. Thanks to its compact design and clear 2.4-inch TFT LCD display, field work becomes much faster and more efficient. The meter offers advanced diagnostic functions, such as signal strength and quality measurement, BER, PWR, and SNR parameters, as well as a spectrum analysis mode, which allows for accurate satellite antenna alignment even in difficult reception conditions.
The device's advantages include a built-in compass, flashlight, and backlit buttons that facilitate work in low-light conditions. The device supports UNICABLE technology and antenna rotor control, making it an extremely versatile solution. Powered by a high-performance 7.4V 2500mAh Li-Ion battery, the meter ensures long operating time without the need for frequent charging. The set also includes a silicone shockproof case that protects the device from mechanical damage. The intuitive menu in Polish makes operating the meter simple and understandable even for less experienced users.
DVB-S/S2/S2X Satellite Meter with 2.4 inch TFT LCD display, signal measurement, spectrum, compass
Model: Spacetronik S-22
EAN: 6931240067628 SKU: 931067624
- DVB-S/S2/S2X signal measurement
- 2.4" TFT LCD display
- BER, PWR, SNR measurement
- Spectrum measurement mode
- UNICABLE technology support
- Built-in compass and flashlight
- Silicone shockproof case
- Menu in Polish
Description
The S-22 satellite meter is a professional tool designed for satellite television system installers. The device enables precise measurement of signals in DVB-S, DVB-S2, and modern DVB-S2X standards. Thanks to its compact design and clear 2.4-inch TFT LCD display, field work becomes much faster and more efficient. The meter offers advanced diagnostic functions, such as signal strength and quality measurement, BER, PWR, and SNR parameters, as well as a spectrum analysis mode, which allows for accurate satellite antenna alignment even in difficult reception conditions.
The device's advantages include a built-in compass, flashlight, and backlit buttons that facilitate work in low-light conditions. The device supports UNICABLE technology and antenna rotor control, making it an extremely versatile solution. Powered by a high-performance 7.4V 2500mAh Li-Ion battery, the meter ensures long operating time without the need for frequent charging. The set also includes a silicone shockproof case that protects the device from mechanical damage. The intuitive menu in Polish makes operating the meter simple and understandable even for less experienced users.
Specification
Output and input
1x F-connector, 1x micro USB, 1x 2.1/5.5 mm jack
Display
2.4" TFT LCD
Frequency range
950 MHz ... 2150 MHz - DVB-S / DVB-S2 / DVB-S2X
Signal level
-25 ... -65 dBm
LNB power supply
13 / 18V, 350 mA
Band switching
0 / 22 kHz
DiSEqC
Support for DiSEqC 1.0, 1.1, 1.2, USALS systems
Programming and update
Via micro USB port. The device has a built-in interface that allows for easy updating of the transponder list and firmware. This process is carried out by connecting the meter to a computer using a micro USB cable, which enables the uploading of the latest satellite data, ensuring compatibility with current broadcasting standards.
Battery power
7.4V / 2500mAh Li-Ion battery, 12V / 2A power adapter included
Selected features
Signal strength and quality measurement, LED/audio indicator, BER/PWR/SNR measurement, spectrum mode, rotor support, UNICABLE support, loop search, built-in compass, built-in flashlight, backlit buttons, silicone case
Supported languages
Polish, English, French, German, Portuguese, Russian
Warranty
2 years
Contents
1x S-22 Meter
1x 12V/2A Power adapter
1x Silicone case
Dimensions, Weight
Product dimensions: 42 x 164 x 93 mm (D x W x H)
Package dimensions: 54 x 218 x 153 mm (D x W x H)
Product weight: 310 g
Weight with packaging: 588 g
