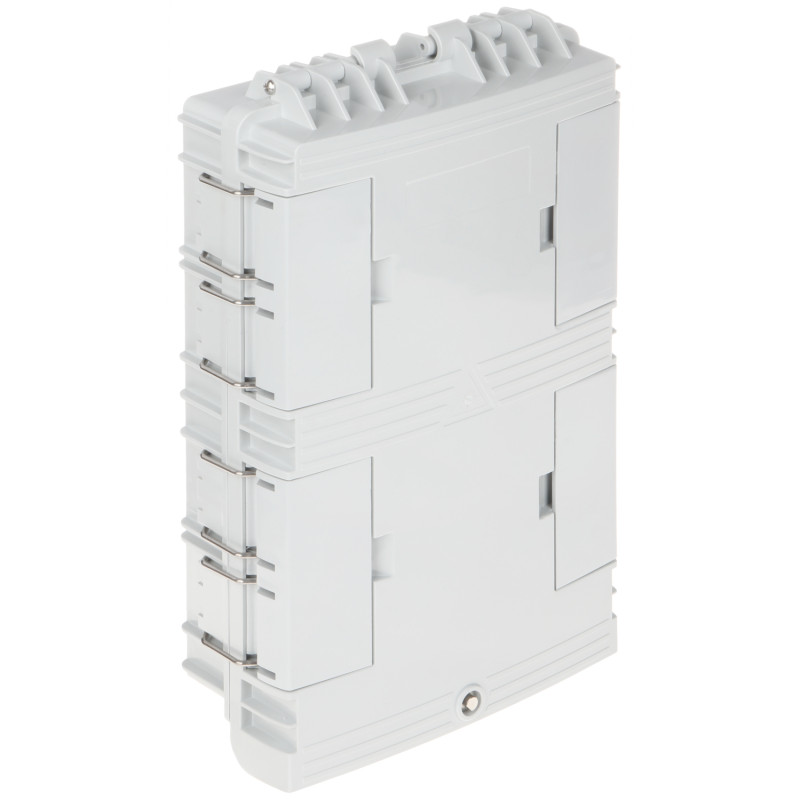

IP65 Wall Mount Fiber Optic Patch Panel 18x SC simplex 18x LC duplex outdoor box OPTON PPO-16/3
zł177.73
Tax included
A fiber optic patch panel is a key element of any modern optical network, ensuring safe and organized termination of line cables. This model is designed for wall mounting, making it an ideal solution for installations inside buildings, basements, or server rooms where space is limited. Thanks to its robust construction made of high-quality plastic and IP65 protection class, the device effectively protects delicate fiber optic connections from dust, moisture, and accidental mechanical damage.
The main advantage of the product is its great versatility. The patch panel allows for the installation of up to 18 SC simplex adapters or 18 LC duplex adapters, giving the installer great flexibility in network configuration. Inside the housing, there is space for a maximum of three splice trays, which allows for up to 18 fusion or mechanical splices. This solution guarantees installation clarity and facilitates subsequent maintenance work.
The security of the installation is enhanced by the fact that the housing is lockable, preventing access by unauthorized persons. The light gray color makes the patch panel aesthetically blend into the environment. The set includes necessary mounting accessories, which significantly speeds up the installation process. By choosing this model, you are investing in the durability and reliability of your telecommunications infrastructure, minimizing the risk of failures resulting from external factors. This is a professional solution for demanding installers, combining functionality with high resistance to harsh environmental conditions.
IP65 Wall Mount Fiber Optic Patch Panel 18x SC simplex 18x LC duplex outdoor box
Model: OPTON PPO-16/3
EAN: 6931240054161 SKU: 931054162
- Supports up to 18 SC simplex adapters or 18 LC duplex adapters
- High IP65 protection class against dust and water
- Capacity for up to 3 splice trays
- Space for 18 fusion or mechanical splices
- Robust housing made of durable plastic
- Key lock for protection against unauthorized access
- Designed for wall mounting (hanging)
- Aesthetic light gray color
Description
A fiber optic patch panel is a key element of any modern optical network, ensuring safe and organized termination of line cables. This model is designed for wall mounting, making it an ideal solution for installations inside buildings, basements, or server rooms where space is limited. Thanks to its robust construction made of high-quality plastic and IP65 protection class, the device effectively protects delicate fiber optic connections from dust, moisture, and accidental mechanical damage.
The main advantage of the product is its great versatility. The patch panel allows for the installation of up to 18 SC simplex adapters or 18 LC duplex adapters, giving the installer great flexibility in network configuration. Inside the housing, there is space for a maximum of three splice trays, which allows for up to 18 fusion or mechanical splices. This solution guarantees installation clarity and facilitates subsequent maintenance work.
The security of the installation is enhanced by the fact that the housing is lockable, preventing access by unauthorized persons. The light gray color makes the patch panel aesthetically blend into the environment. The set includes necessary mounting accessories, which significantly speeds up the installation process. By choosing this model, you are investing in the durability and reliability of your telecommunications infrastructure, minimizing the risk of failures resulting from external factors. This is a professional solution for demanding installers, combining functionality with high resistance to harsh environmental conditions.
Specification
Device type
Wall-mounted fiber optic patch panel, hanging
Number of line cables
Maximum 2 inputs
Number of splice trays
Maximum 3 units
Adapter capacity
18x SC - simplex or 18x LC - duplex
Number of splices
18 fusion or 18 mechanical
Protection class
IP65 (resistance to dust and water jets)
Material
High-quality plastic (ABS)
Security
Mechanical key lock
Color
Light gray (RAL 7035)
Application
Termination of line cables inside and outside buildings
Fiber organization
Internal guides ensuring proper bending radius
Warranty
2 years (24 months)
Software
Passive device. Does not require software or electrical power. Fiber management is performed mechanically via dedicated splice trays and guides, ensuring optimal transmission parameters of the fiber optic network without the need for digital configuration.
Contents
1x Fiber optic patch panel PPO-16/3
1x Housing key
Mounting accessories (plugs, screws)
Splice sleeves
Cable ties
Dimensions, Weight
Product dimensions: 89 x 217 x 345 mm (D x W x H)
Package dimensions: 100 x 360 x 240 mm (D x W x H)
Product weight: 1440 g
Weight with packaging: 1586 g
