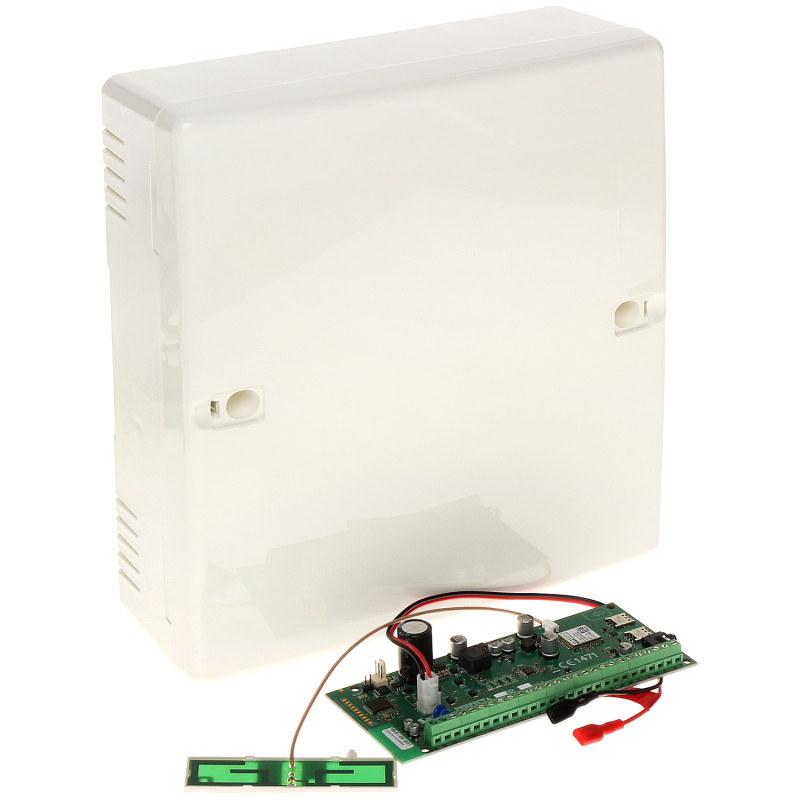

GSM GPRS Grade 2 Alarm Control Panel Housing Antenna Intrusion Detection System Kit SATEL PERFECTA-32-SET-A
zł812.42
Tax included
The PERFECTA-32-SET-A alarm control panel is a professional and versatile solution from the renowned Polish manufacturer SATEL, designed for the comprehensive protection of small and medium-sized facilities. This kit is an ideal choice for owners of apartments, detached houses, offices, and small businesses who are looking for reliability combined with modern functionality. The device meets the rigorous Grade 2 security requirements according to the EN 50131 standard, which guarantees high resistance to sabotage attempts and effectiveness in detecting threats.
One of the greatest advantages of the PERFECTA system is the built-in GSM/GPRS module, which supports two nano-SIM cards. This solution ensures unprecedented communication continuity – in case of coverage issues with one operator, the control panel automatically switches to the second card. The system enables not only traditional voice and SMS notifications but also full remote operation via the intuitive PERFECTA CONTROL mobile application. Thanks to it, the user can arm and disarm the alarm, check the status of zones, and control home automation devices from anywhere in the world.
The control panel also offers advanced audio verification, allowing for the listening of sounds from the protected facility in the event of an alarm, which enables a quick assessment of the situation. The ability to update software and a wide range of expansion modules make the PERFECTA system a future-proof investment that can be easily adapted to the changing needs of the user. By choosing this kit, you receive a complete control panel board, a dedicated OPU-4-P housing, and a GSM antenna, which significantly facilitates and speeds up the installation process.
GSM GPRS Grade 2 Alarm Control Panel Housing Antenna Intrusion Detection System Kit
Model: SATEL PERFECTA-32-SET-A
EAN: 6931240025260 SKU: 931025264
- Compliance with Grade 2 EN 50131 standard
- Built-in GSM/GPRS module with support for 2 nano-SIM cards
- Support for the functional PERFECTA CONTROL mobile application
- Acoustic alarm verification capability (listening)
- Built-in voice module with 16 messages
- Support for up to 32 inputs and 12 programmable outputs
- System division into 2 zones with 3 arming modes each
- Built-in 2A switching power supply with diagnostics
- Communication bus for keypads and expanders
- Event log with a capacity of 3584 entries
- Firmware update capability
- Includes OPU-4-P housing and GSM antenna
Description
The PERFECTA-32-SET-A alarm control panel is a professional and versatile solution from the renowned Polish manufacturer SATEL, designed for the comprehensive protection of small and medium-sized facilities. This kit is an ideal choice for owners of apartments, detached houses, offices, and small businesses who are looking for reliability combined with modern functionality. The device meets the rigorous Grade 2 security requirements according to the EN 50131 standard, which guarantees high resistance to sabotage attempts and effectiveness in detecting threats.
One of the greatest advantages of the PERFECTA system is the built-in GSM/GPRS module, which supports two nano-SIM cards. This solution ensures unprecedented communication continuity – in case of coverage issues with one operator, the control panel automatically switches to the second card. The system enables not only traditional voice and SMS notifications but also full remote operation via the intuitive PERFECTA CONTROL mobile application. Thanks to it, the user can arm and disarm the alarm, check the status of zones, and control home automation devices from anywhere in the world.
The control panel also offers advanced audio verification, allowing for the listening of sounds from the protected facility in the event of an alarm, which enables a quick assessment of the situation. The ability to update software and a wide range of expansion modules make the PERFECTA system a future-proof investment that can be easily adapted to the changing needs of the user. By choosing this kit, you receive a complete control panel board, a dedicated OPU-4-P housing, and a GSM antenna, which significantly facilitates and speeds up the installation process.
Specification
System Type
Wired alarm control panel with GSM/GPRS communication
Inputs and Outputs
Inputs on board: 8 (programmable); Maximum number of inputs: 32; Outputs on board: 4 (programmable); Maximum number of outputs: 12
Communication
Built-in GSM/GPRS module; Support for 2 nano-SIM cards; SMS, PUSH, Voice notifications; Monitoring to station (GPRS, SMS)
Users and Control
Users: 15 + 1 administrator; Timers: 8; Supported keypads: max. 4 units (PRF-LCD)
System Partitioning
Zones: 2; Arming modes: 3 in each zone; Ability to assign an input to two zones
Memory and Events
Event log: 3584 entries; Registration of alarms, faults, and user operations
Audio Verification
Built-in acoustic alarm verification module (listening to sounds from the facility)
Power Supply
Supply voltage: 18 V AC; Power supply current capacity: 2 A; 2 power outputs on board
Security
Security Grade: 2 according to EN 50131; Advanced power and line diagnostics
Expansion
Communication bus; Support for modules: INT-E (inputs), INT-O/INT-ORS (outputs)
Additional Functions
Support for vibration and roller shutter detectors; Editing of user, zone, and input names; Voice module (16 messages)
Environmental Parameters
Operating temperature: -10 °C ... 55 °C; Permissible humidity: 93 %
Construction
PCB dimensions: 160 x 68 mm; Housing dimensions: 283 x 263 x 91 mm; Kit weight: 1.20 kg
Software
The PERFECTA system offers two key software solutions: PERFECTA Soft and PERFECTA CONTROL. PERFECTA Soft is a dedicated application for Windows computers that enables full, clear, and fast configuration of the control panel. Thanks to it, the installer can easily manage inputs, outputs, zones, and users, as well as update the control panel firmware. Communication can take place locally via the RS-232 (TTL) port or remotely via GPRS technology. The second element is the PERFECTA CONTROL mobile application, available for Android and iOS devices. This application revolutionizes the way the user interacts with the alarm system, offering remote arming and disarming, checking system status, viewing event history, and controlling home automation outputs. It uses secure PUSH notifications, informing about alarms and faults in real-time. Thanks to the Satel connection setup service, the application configuration is extremely simple and does not require advanced knowledge of computer networks or having a public IP address.
Contents
1x PERFECTA-32 control panel motherboard
1x OPU-4-P housing
1x GSM antenna
1x Mounting accessories
Dimensions, Weight
Product dimensions: 91 x 283 x 263 mm (D x W x H)
Packaging dimensions: 120 x 295 x 275 mm (D x W x H)
Product weight: 1200 g
Weight with packaging: 1414 g
