- New

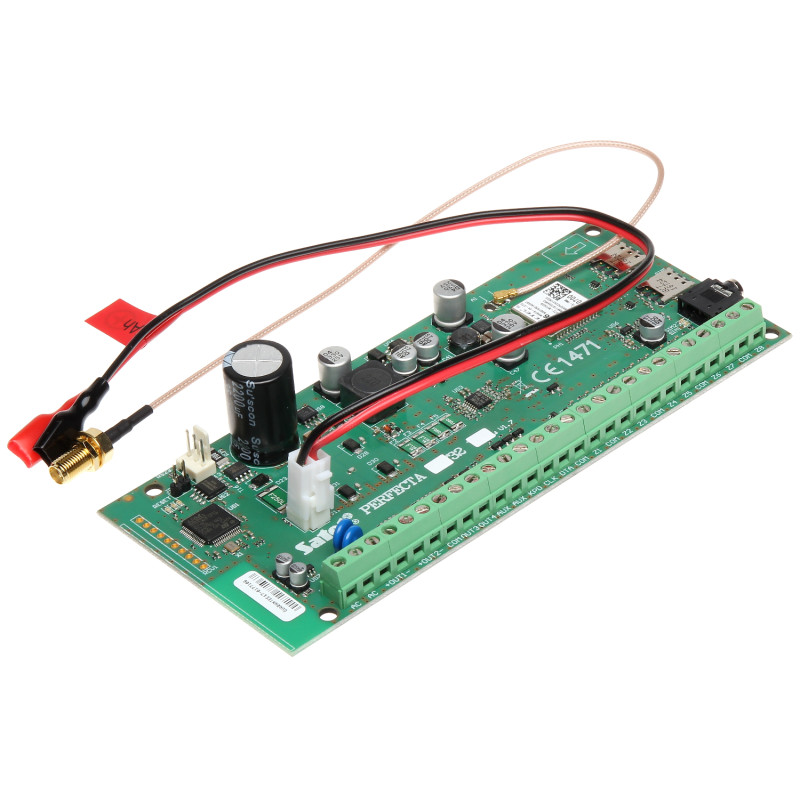

GSM GPRS Alarm Control Panel 8-32 inputs Grade 2 PUSH notifications mobile app audio verification SATEL PERFECTA-32
zł653.13
Tax included
The PERFECTA series alarm control panels are technologically advanced solutions dedicated to protecting small and medium-sized facilities, such as detached houses, apartments, offices, or small retail outlets. The device provides professional protection in accordance with the rigorous requirements of the European Grade 2 EN 50131 standard, which guarantees high system effectiveness and reliability. The main advantage of the control panel is its communication versatility – the integrated GSM/GPRS module allows for instant transmission of event information to a monitoring station and directly to the user.
The system offers modern control methods, including the intuitive PERFECTA CONTROL mobile app, which enables remote arming and disarming of the system, checking zone status, and receiving real-time PUSH notifications. Thanks to dual nano-SIM card support, the control panel ensures communication continuity even in the event of a network failure from one of the telecommunications operators. An additional advantage is the audio verification function, which allows for remote listening to sounds from the protected facility, significantly facilitating situation assessment in the event of an alarm. By choosing this solution, you are investing in security based on proven Polish components that combine traditional reliability with modern Smart Home functions.
GSM GPRS Alarm Control Panel 8-32 inputs Grade 2 PUSH notifications mobile app audio verification
Model: SATEL PERFECTA-32
EAN: 6931240022733 SKU: 931022730
- Compliance with Grade 2 EN 50131 standard for high security levels
- Built-in GSM/GPRS module with dual nano-SIM card support
- Expandable system up to 32 inputs and 12 programmable outputs
- Remote control via the free PERFECTA CONTROL mobile app
- Built-in voice module with 16-message memory for telephone notifications
- Acoustic alarm verification function (remote listening)
- Support for up to 4 PRF-LCD wired keypads
- Advanced switching power supply with full diagnostics and two power outputs
- System partitioning into 2 independent zones with 3 arming modes each
- Easy local and remote configuration via PERFECTA Soft software
Description
The PERFECTA series alarm control panels are technologically advanced solutions dedicated to protecting small and medium-sized facilities, such as detached houses, apartments, offices, or small retail outlets. The device provides professional protection in accordance with the rigorous requirements of the European Grade 2 EN 50131 standard, which guarantees high system effectiveness and reliability. The main advantage of the control panel is its communication versatility – the integrated GSM/GPRS module allows for instant transmission of event information to a monitoring station and directly to the user.
The system offers modern control methods, including the intuitive PERFECTA CONTROL mobile app, which enables remote arming and disarming of the system, checking zone status, and receiving real-time PUSH notifications. Thanks to dual nano-SIM card support, the control panel ensures communication continuity even in the event of a network failure from one of the telecommunications operators. An additional advantage is the audio verification function, which allows for remote listening to sounds from the protected facility, significantly facilitating situation assessment in the event of an alarm. By choosing this solution, you are investing in security based on proven Polish components that combine traditional reliability with modern Smart Home functions.
Specification
Inputs
8 pcs on the main board (programmable); maximum number of supported inputs: 32 pcs after expansion with expanders
Outputs
4 pcs on the main board (programmable); maximum number of supported outputs: 12 pcs after expansion
Power supply and efficiency
Power supply: 18 V AC; Power supply current capacity: 2 A; Built-in advanced power supply with extensive diagnostics and 2 power outputs
Users
Support for up to 15 users + 1 administrator
Zones
2 independent zones; 3 arming modes in each zone (full, day, night); possibility to assign an input to two zones
Event memory
Memory capacity: 3584 events
Timers
8 programmable timers for automatic system control
Communication
Built-in GSM/GPRS module; 2 slots for nano-SIM cards; SMS, PUSH notifications, monitoring to station
Audio functions
Built-in voice module (16 messages); built-in acoustic alarm verification module (sound listening)
Keypad support
Maximum 4 pcs of PRF-LCD wired keypads
Expansion
Communication bus for connecting manipulators and expansion modules (INT-E, INT-O, INT-ORS)
Security
Security grade: 2 according to EN 50131; support for vibration and roller shutter detectors
Operating conditions
Operating temperature: -10 °C ... 55 °C; Permissible relative ambient humidity: 93 %
Software
PERFECTA Soft is dedicated software designed for configuring PERFECTA series control panels. The application enables quick and intuitive system preparation both locally (via RS-232 TTL port) and remotely via GPRS data transmission. The program offers a clear interface, user and zone management, and full real-time system diagnostics. Thanks to it, the installer can easily edit names, set timers, and update the control panel firmware, which ensures access to the latest features and security patches.
Contents
1x PERFECTA-32 alarm control panel board
1x GSM antenna
1x Mounting accessories (plugs, resistors)
1x Quick start guide
Dimensions, Weight
Product dimensions: 20 x 160 x 68 mm (D x W x H)
Package dimensions: 55 x 230 x 130 mm (D x W x H)
Product weight: 105 g
Package weight: 222 g
