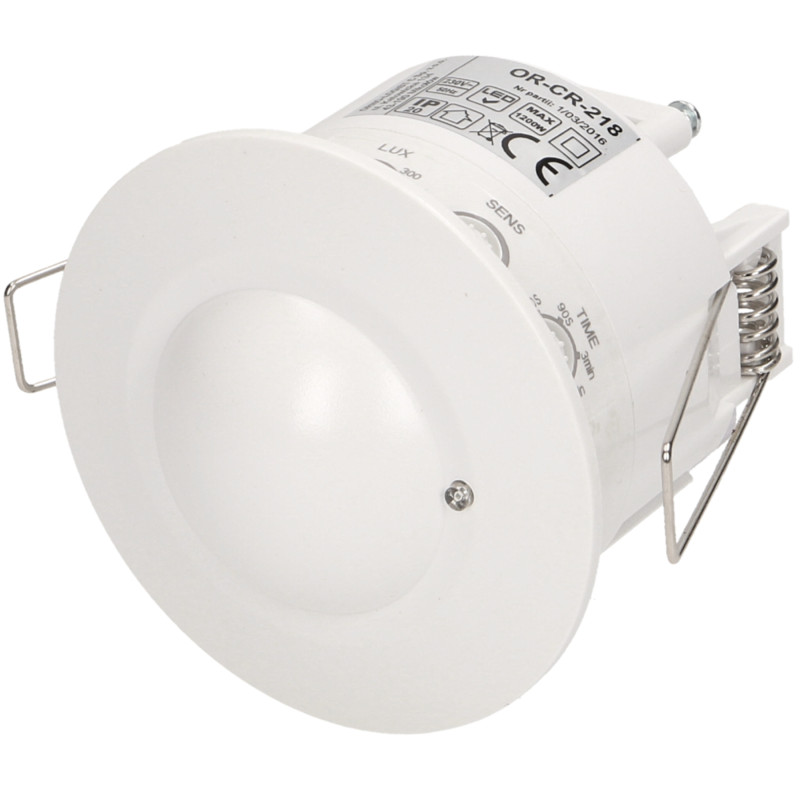

Ceiling Microwave Motion Sensor Radar 360 Degrees 230V IP20 LED Automatic Light Switch ORNO OR-CR-218
zł147.59
Tax included
The OR-CR-218 ceiling microwave motion sensor is a modern and highly effective device designed for automating lighting systems inside buildings. Thanks to the use of radar (microwave) technology, this sensor offers significantly higher detection precision compared to traditional PIR sensors. The device emits electromagnetic waves at a frequency of 5.8 GHz and analyzes their echo, which allows for the detection of even the slightest movement, regardless of ambient temperature or objects. One of the greatest advantages of this model is its ability to detect motion through thin obstacles, such as plasterboard, glass, or plastics, which allows for discreet installation.
The product has been designed for flush mounting in suspended ceilings, making it almost invisible after installation and not disturbing the interior aesthetics. It is an ideal solution for corridors, staircases, offices, and utility rooms. The OR-CR-218 sensor is fully compatible with modern LED lighting, which allows for the construction of energy-efficient smart home and building automation systems. The user has three independent adjustment parameters at their disposal: detection range (from 1 to 8 meters), lighting hold time (from 10 seconds to 12 minutes), and light intensity threshold (from 3 to 2000 lux), which allows for perfect adjustment of the device's operation to the specifics of a given room.
Product advantages:
- High sensitivity thanks to 5.8GHz microwave technology.
- Motion detection through glass, wood, and plasterboard.
- Wide 360-degree viewing angle eliminating blind spots.
- Possibility to adjust range, operating time, and twilight sensitivity.
- Very low power consumption of only 0.9W.
- Aesthetic, white color and compact dimensions facilitating installation.
- Long service life and reliability confirmed by a 3-year manufacturer's warranty.
- Seamless cooperation with LED bulbs up to 300W.
Ceiling Microwave Motion Sensor Radar 360 Degrees 230V IP20 LED Automatic Light Switch
Model: ORNO OR-CR-218
EAN: 6931240088012 SKU: 931088017
- Active motion detector emitting 5.8GHz electromagnetic waves
- Motion detection through glass, plastics, and plasterboard
- Full 360-degree detection angle ideal for ceiling mounting
- Compatible with modern LED lighting (up to 300W)
- Adjustable detection range from 1 to 8 meters
- Adjustable lighting time from 10 seconds to 12 minutes
- Built-in twilight sensor with adjustment from 3 to 2000 Lux
- Low power consumption in operating mode of only 0.9W
- Flush mounting in suspended ceilings (61.5mm hole)
- No influence of ambient temperature on detection efficiency
Description
The OR-CR-218 ceiling microwave motion sensor is a modern and highly effective device designed for automating lighting systems inside buildings. Thanks to the use of radar (microwave) technology, this sensor offers significantly higher detection precision compared to traditional PIR sensors. The device emits electromagnetic waves at a frequency of 5.8 GHz and analyzes their echo, which allows for the detection of even the slightest movement, regardless of ambient temperature or objects. One of the greatest advantages of this model is its ability to detect motion through thin obstacles, such as plasterboard, glass, or plastics, which allows for discreet installation.
The product has been designed for flush mounting in suspended ceilings, making it almost invisible after installation and not disturbing the interior aesthetics. It is an ideal solution for corridors, staircases, offices, and utility rooms. The OR-CR-218 sensor is fully compatible with modern LED lighting, which allows for the construction of energy-efficient smart home and building automation systems. The user has three independent adjustment parameters at their disposal: detection range (from 1 to 8 meters), lighting hold time (from 10 seconds to 12 minutes), and light intensity threshold (from 3 to 2000 lux), which allows for perfect adjustment of the device's operation to the specifics of a given room.
Product advantages:
- High sensitivity thanks to 5.8GHz microwave technology.
- Motion detection through glass, wood, and plasterboard.
- Wide 360-degree viewing angle eliminating blind spots.
- Possibility to adjust range, operating time, and twilight sensitivity.
- Very low power consumption of only 0.9W.
- Aesthetic, white color and compact dimensions facilitating installation.
- Long service life and reliability confirmed by a 3-year manufacturer's warranty.
- Seamless cooperation with LED bulbs up to 300W.
Specification
Sensor type
Microwave (MW) - active detection system based on the emission of high-frequency electromagnetic waves
Operating frequency
5.8 GHz - band ensuring high resistance to interference and precise motion detection
Detection angle
360 degrees - full range of space monitoring around the sensor mounting axis
Detection range
Adjustable smoothly in the range from 1 meter to 8 meters of detection radius
Application
Designed for indoor use (IP20), mounting in suspended ceilings and structures
Light sensitivity adjustment
From 3 to 2000 Lux - allows the device to work only after dark or during the day (manual adjustment)
Hold time
Adjustable from 10 seconds (+/- 3s) to 12 minutes (+/- 1min) after the last detected movement
Maximum load
1200 W for resistive loads (incandescent bulbs) and 300 W for inductive loads (LED)
Detection speed
Detects objects moving at a speed of 0.6 to 1.5 meters per second
Control output
Relay - ensures reliable and durable switching of lighting electrical circuits
Ingress protection class
IP20 - protection against solid objects larger than 12.5 mm, no protection against water
Mains power supply
230 V AC at 50 Hz frequency - direct connection to standard home installation
Power consumption
Very low power consumption of approximately 0.9 W during active operation of the device
Operating conditions
Stable operation in a wide temperature range from -20 degrees Celsius to +50 degrees Celsius
Mounting dimensions
Outer diameter 76 mm, height 76 mm, required mounting hole with a diameter of 61.5 mm
Contents
1x Ceiling motion sensor OR-CR-218
1x Complete installation and operating manual in Polish
Dimensions, Weight
Product dimensions: 76 x 76 x 76 mm (D x W x H)
Package dimensions: 85 x 80 x 100 mm (D x W x H)
Product weight: 100 g
Weight with packaging: 138 g
