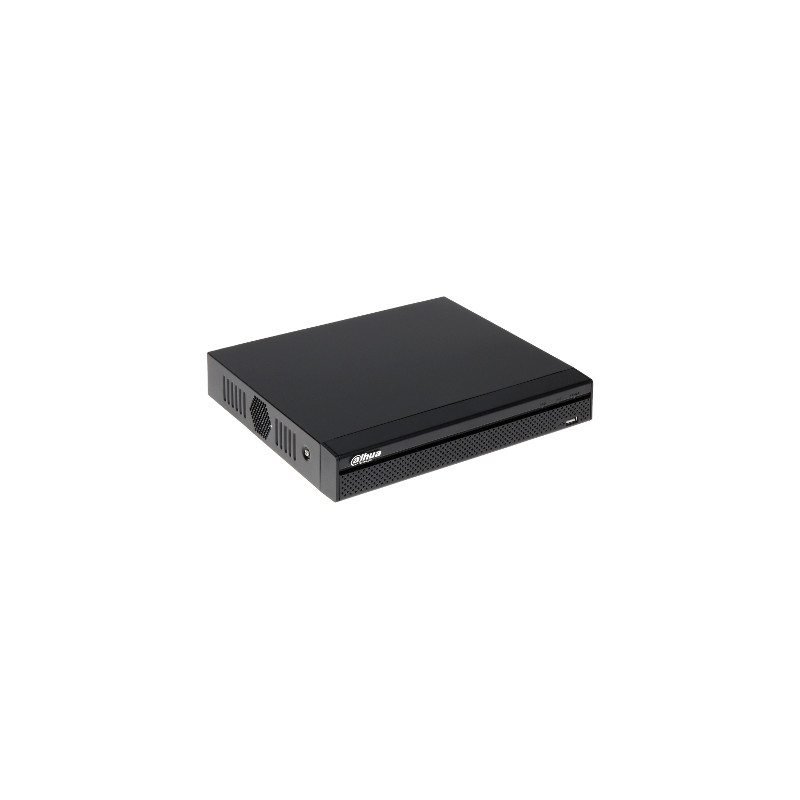

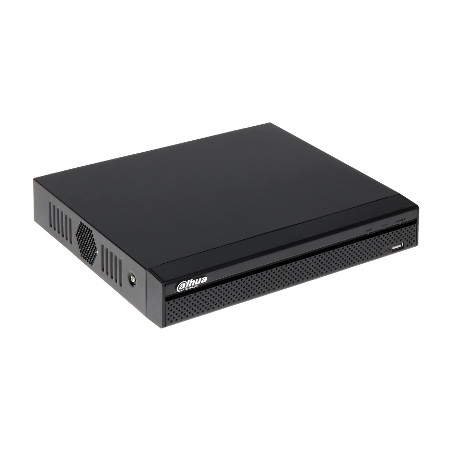

4-Channel 4K UHD H.265+ ONVIF P2P Network Video Recorder with SMD PLUS Motion Detection DAHUA NVR4104HS-4KS3
zł1,328.40
Tax included
A professional network video recorder is the heart of a modern IP monitoring system, offering unparalleled image quality at resolutions up to 12 megapixels (4K UHD). Thanks to advanced Smart H.265+ compression technology, the device allows for significant savings in hard drive space and network bandwidth while maintaining crystal-clear recording quality. The main advantage of this model is the implemented SMD Plus function, which intelligently classifies objects, distinguishing humans and vehicles from moving leaves or animals, which drastically reduces the number of false alarms and increases protection effectiveness. The device supports hard drives with a capacity of up to 20TB, ensuring an exceptionally long data archiving time without the need for frequent overwriting. An intuitive interface and full support for the DMSS mobile application enable live viewing and playback of recordings from anywhere in the world via a secure P2P cloud. A robust design and a wide operating temperature range guarantee reliability in all environmental conditions. Additionally, full compliance with the ONVIF standard ensures seamless cooperation with a wide range of cameras from various manufacturers. The recorder features 4K HDMI and VGA video outputs, allowing for the connection of modern monitors and televisions. The Smart Playback function facilitates quick location of key events, saving the user time when reviewing evidence material. This is an ideal solution for homes, offices, and small retail outlets looking for professional security at an affordable price, combining high performance with ease of use.
4-Channel 4K UHD H.265+ ONVIF P2P Network Video Recorder with SMD PLUS Motion Detection
Model: DAHUA NVR4104HS-4KS3
EAN: 6931240089026 SKU: 931089025
- Supports up to 4 IP channels at a maximum resolution of 12 Mpx (4K)
- Advanced image compression: Smart H.265+ / H.265 / H.264+
- SMD Plus technology - intelligent human and vehicle classification
- Support for AI functions from cameras: perimeter protection, face detection, people counting
- Supports one SATA hard drive up to 20 TB
- HDMI video output supporting 4K standard and analog VGA
- Remote access via P2P cloud and dedicated DMSS mobile application
- Full compliance with ONVIF 22.12 standard
- Built-in web server for full management via browser
- Two-way audio path (CINCH input/output)
Description
A professional network video recorder is the heart of a modern IP monitoring system, offering unparalleled image quality at resolutions up to 12 megapixels (4K UHD). Thanks to advanced Smart H.265+ compression technology, the device allows for significant savings in hard drive space and network bandwidth while maintaining crystal-clear recording quality. The main advantage of this model is the implemented SMD Plus function, which intelligently classifies objects, distinguishing humans and vehicles from moving leaves or animals, which drastically reduces the number of false alarms and increases protection effectiveness. The device supports hard drives with a capacity of up to 20TB, ensuring an exceptionally long data archiving time without the need for frequent overwriting. An intuitive interface and full support for the DMSS mobile application enable live viewing and playback of recordings from anywhere in the world via a secure P2P cloud. A robust design and a wide operating temperature range guarantee reliability in all environmental conditions. Additionally, full compliance with the ONVIF standard ensures seamless cooperation with a wide range of cameras from various manufacturers. The recorder features 4K HDMI and VGA video outputs, allowing for the connection of modern monitors and televisions. The Smart Playback function facilitates quick location of key events, saving the user time when reviewing evidence material. This is an ideal solution for homes, offices, and small retail outlets looking for professional security at an affordable price, combining high performance with ease of use.
Specification
Standard and Performance
Standard: TCP/IP; Maximum bitrate: 80 Mbps; Supported resolutions: max. 12 Mpx - 4000 x 3000 px and lower (8MP, 5MP, 4MP, 2MP).
Video Outputs
1x HDMI 4K (3840 x 2160); 1x VGA (1920 x 1080); Ability to work on two monitors simultaneously.
Audio
Audio support: 4 channels - audio from IP cameras; Audio inputs: 1x CINCH; Audio outputs: 1x CINCH; Supports two-way audio (Talk-back).
Image Compression
Smart H.265+ / H.265 / Smart H.264+ / H.264; Ensures optimization of bandwidth and disk space usage while maintaining high-quality details.
Data Archiving
Supported hard drives: 1 x 20 TB SATA; Archiving on external media: USB drive (pendrive, external hard drive); File system: FAT32 / NTFS.
Recording and Playback
Recording modes: Manual, motion detection, schedule; Search for recordings by time and event type; Playback: forward, backward, fast forward, slow motion; Smart Playback function; Simultaneous playback from max. 4 cameras.
Network Interface
1 x RJ-45 10/100 Base-TX; Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Register, IP Search.
Compliance and Access
ONVIF: version 22.12; Default IP address: 192.168.1.108; Default login: admin; Access ports: 80, 37777; RTSP URL supported for main and sub-stream.
Intelligent Functions (AI)
SMD PLUS - search for an object classified as a human or motor vehicle; False alarm filtering; Functions performed with cameras: perimeter protection, scene change, face detection (6 attributes), face recognition, people counting, heat map.
Connectors and Control
USB: 2x USB 2.0 (front and rear panel); PTZ control: Support for IP speed dome cameras; Mouse support: Yes (mouse included).
Mobile and PC Software
DMSS application (Android/iOS): A free tool enabling live viewing, remote playback of recordings, device configuration, and receiving push notifications about alarms. The application supports P2P technology, which eliminates the need for a static IP address. For PCs, dedicated SmartPSS / DSS Express software provides comprehensive management of multiple surveillance systems from one location.
Electrical Parameters
Power supply: 12 V DC / 2 A; Power consumption: max. 10 W (without hard drive installed).
Operating Conditions
Operating temperature: -10 °C ... 55 °C; Permissible humidity: 10% ... 93%.
Physical Parameters
Weight: 0.81 kg; Dimensions: 260 x 233 x 48 mm; Housing: Metal/Plastic 1U type.
Contents
1x NVR4104HS-4KS3 Recorder
1x 12V 2A Power adapter
1x USB optical mouse
1x Set of screws for disk mounting
1x SATA cable and disk power cable
Dimensions, Weight
Product dimensions: 233 x 260 x 48 mm (D x W x H)
Package dimensions: 90 x 335 x 310 mm (D x W x H)
Product weight: 810 g
Weight with packaging: 1420 g
