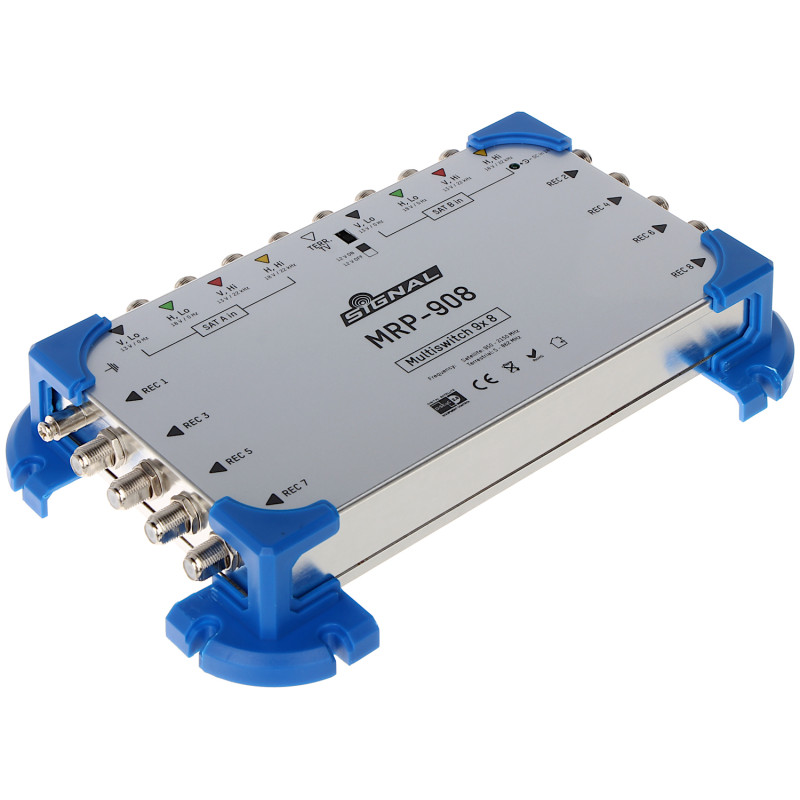

9-input 8-output satellite multiswitch, supports 2 satellites, DVB-T2, LTE filter, high signal isolation SIGNAL MRP-908
zł227.51
Tax included
The MRP-908 multiswitch is an advanced technological solution designed for modern antenna installations that require signal distribution from two different satellite positions, such as Astra and Hotbird, to multiple receivers simultaneously. This device is the heart of a home multimedia system, allowing the connection of up to eight independent subscriber outlets. As a result, every household member can watch different satellite or terrestrial channels at the same time without mutual interference. This is particularly important in the era of popular dual-tuner (PVR) receivers, which require two separate signals for the proper operation of recording and viewing different programs.
Advantages and key benefits:
- Installation flexibility: The ability to receive signals from two satellites opens access to thousands of television and radio channels from around the world.
- Full integration: The device combines the satellite signal with the DVB-T2 terrestrial television signal, allowing a complete set of services to be sent via a single coaxial cable to every room.
- High build quality: The metal, die-cast housing not only looks great but, above all, provides the highest level of shielding, protecting the signal from the influence of LTE, Wi-Fi, or mobile networks.
- Safety and stability: The external 18V power supply included in the kit guarantees stable operation of the multiswitch and the Quatro converters connected to it, minimizing the risk of device overheating.
- Intelligent power supply: The 12V DC preamplifier power function on the terrestrial input eliminates the need for additional power supplies at the TV antenna.
- Easy diagnostics: The clear layout of connectors and legible labels on the housing make installation and potential system maintenance quick and trouble-free.
The MRP-908 multiswitch is a guarantee of reliability for years. It has been designed to meet the requirements of both small home installations and more extensive systems in multi-family buildings. The use of top-class components ensures low self-noise and high resistance to overload, which is crucial when receiving high-resolution 4K and 8K digital signals. By choosing a SIGNAL brand product, you are opting for proven quality confirmed by thousands of installers across Europe.
9-input 8-output satellite multiswitch, supports 2 satellites, DVB-T2, LTE filter, high signal isolation
Model: SIGNAL MRP-908
EAN: 6931240093061 SKU: 931093066
- Support for two satellite positions (e.g., Hotbird + Astra)
- 8 independent outputs for satellite and terrestrial receivers
- Full compatibility with DVB-T2 terrestrial television
- Built-in LTE filter to reduce interference from the 700/800 MHz band
- External 18V DC / 1A power supply included
- Ability to power 12V DC antenna preamplifiers
- Solid metal housing ensuring high shielding
- Low attenuation in the satellite path (only 3 dB)
Description
The MRP-908 multiswitch is an advanced technological solution designed for modern antenna installations that require signal distribution from two different satellite positions, such as Astra and Hotbird, to multiple receivers simultaneously. This device is the heart of a home multimedia system, allowing the connection of up to eight independent subscriber outlets. As a result, every household member can watch different satellite or terrestrial channels at the same time without mutual interference. This is particularly important in the era of popular dual-tuner (PVR) receivers, which require two separate signals for the proper operation of recording and viewing different programs.
Advantages and key benefits:
- Installation flexibility: The ability to receive signals from two satellites opens access to thousands of television and radio channels from around the world.
- Full integration: The device combines the satellite signal with the DVB-T2 terrestrial television signal, allowing a complete set of services to be sent via a single coaxial cable to every room.
- High build quality: The metal, die-cast housing not only looks great but, above all, provides the highest level of shielding, protecting the signal from the influence of LTE, Wi-Fi, or mobile networks.
- Safety and stability: The external 18V power supply included in the kit guarantees stable operation of the multiswitch and the Quatro converters connected to it, minimizing the risk of device overheating.
- Intelligent power supply: The 12V DC preamplifier power function on the terrestrial input eliminates the need for additional power supplies at the TV antenna.
- Easy diagnostics: The clear layout of connectors and legible labels on the housing make installation and potential system maintenance quick and trouble-free.
The MRP-908 multiswitch is a guarantee of reliability for years. It has been designed to meet the requirements of both small home installations and more extensive systems in multi-family buildings. The use of top-class components ensures low self-noise and high resistance to overload, which is crucial when receiving high-resolution 4K and 8K digital signals. By choosing a SIGNAL brand product, you are opting for proven quality confirmed by thousands of installers across Europe.
Specification
Device type
Professional 9-input satellite multiswitch designed for collective installations
Number of signal inputs
Total of 9 inputs, including 8 satellite inputs (for two Quatro-type converters) and 1 input for a DVB-T2/Radio terrestrial television antenna
Number of subscriber outputs
8 F-type outputs, each providing a combined signal from both satellites and the terrestrial band
SAT band frequency range
950 MHz - 2150 MHz (support for the full first and second satellite intermediate frequency band)
Terrestrial TV band frequency range
5 MHz - 862 MHz (full support for VHF, UHF, and FM/DAB+ bands)
Frequency range at outputs
47 MHz - 2150 MHz (broadband signal distribution to terminal outlets)
Control and switching signals
Full compliance with 13V / 18V and 0Hz / 22kHz protocols, allowing for seamless cooperation with any satellite tuner
Branch attenuation for the SAT path
3 dB - very low internal losses guarantee high signal quality for the subscriber
Branch attenuation for the TV path
14 dB ± 1.5 dB - precise adjustment of the terrestrial signal level across the entire network
Maximum output level for SAT signal
100 dBµV - high current efficiency of the outputs allows for the construction of extensive cable networks
Maximum output level for TV signal
100 dBµV - guarantee of stable DVB-T2 reception without interference
Antenna preamplifier power supply
Built-in circuit providing 12V DC voltage to the Terr input, enabling power for amplifiers in terrestrial antennas
Main device power supply
18V DC / 1000 mA (a dedicated, high-quality switching power supply is included)
Isolation between SAT-SAT inputs
Above 25 dB - eliminates the risk of signal overlap from different polarizations and satellites
Isolation between SAT-TV inputs
Above 30 dB - excellent filtering preventing interference between services
Housing construction
Made of high-quality metal alloy, ensuring excellent shielding against external interference and optimal heat dissipation
Connector type
Standard F-type connectors (75 Ohm), ensuring a secure and durable mechanical connection
Environmental operating conditions
Device adapted for operation in temperatures from -20°C to +50°C indoors
Compliance and standards
Product meets rigorous safety and electromagnetic compatibility standards CE
Contents
1x Multiswitch MRP-908
1x 18V/1A power adapter
1x User manual in Polish
Dimensions, Weight
Product dimensions: 42 x 222 x 142 mm (D x W x H)
Packaging dimensions: 60 x 320 x 230 mm (D x W x H)
Product weight: 440 g
Weight with packaging: 798 g
